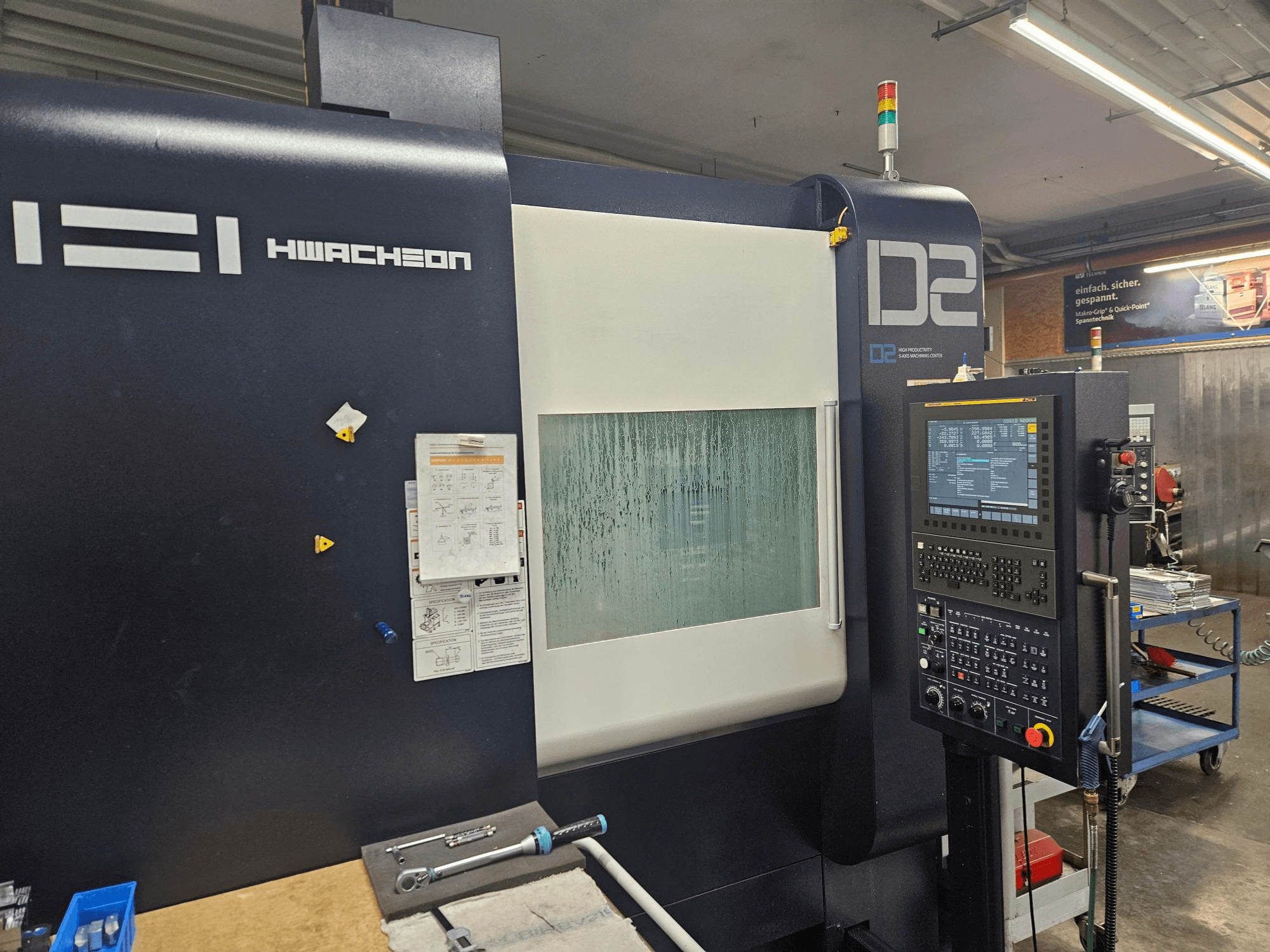

HWACHEON - D2-5AX 12kDE-MIL-HWA-2021-00001

- Control Unit: Fanuc 0i-MF with 15" Color Screen, Manual Guide i / TWP, Data Server 4 GB

- Max. Feed Rates (X/Y/Z): 24,000 mm/min

- Rapid Speed (X/Y/Z): 36 / 30 / 30 m/min

- Rapid Speed (B/C): 25 U/min

- Table Diameter: 600 mm

- Max. Workpiece Weight: 500 kg

- Table Height: 500 mm

- T-Slots: 14x100 mm

- Spindle Speed: Up to 12,000 rpm (Optionally listed 14,000 rpm 37/22 kW)

- Spindle Drive Power: 37 / 18.5 kW

- Spindle Torque: 250 Nm

- Spindle Taper: SK-40 DIN6359 / DIN69872A

- Tool Magazine Places: 30 places (Optionally 40 places)

- Max. Tool Length: 300 mm

- Max. Tool Diameter: 80 mm (130 mm adjacent empty)

- Max. Tool Weight: 8 kg

- Tool Change Time: 1.8 sec

- Internal Coolant Supply (IKZ): 30 bar, 13 l/min

- Coolant Tank Capacity: 250 L

- Measurement Systems: Renishaw OMP40-2 tool measurement with IR transmission, Blum tool setter

- Software Options: HTLD, HTDC, Optima, HAI 400 Block, Fanuc Helical Interpolation, Program Restart, HRCC

- Total Electrical Power: 70 kVA

- Rated Voltage: 3 / 220 V, 50 Hz

- Operating Air Supply: 0.5 - 0.7 MPa

- Control On Time: 16,460 h

- Operating Time: 5,550 h

- Machining Time: 4,225 h
