Poreba - TPK 90/5MPL-TUR-POR-1984-00001

Name: Poreba TPK 90/5M
Brand: Poreba
SKU: PL-TUR-POR-1984-00001
Price: 113800 EUR
Availability: InStock

113,800 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Poreba TPK 90/5M For Sale | gindumac.com

Show in original language

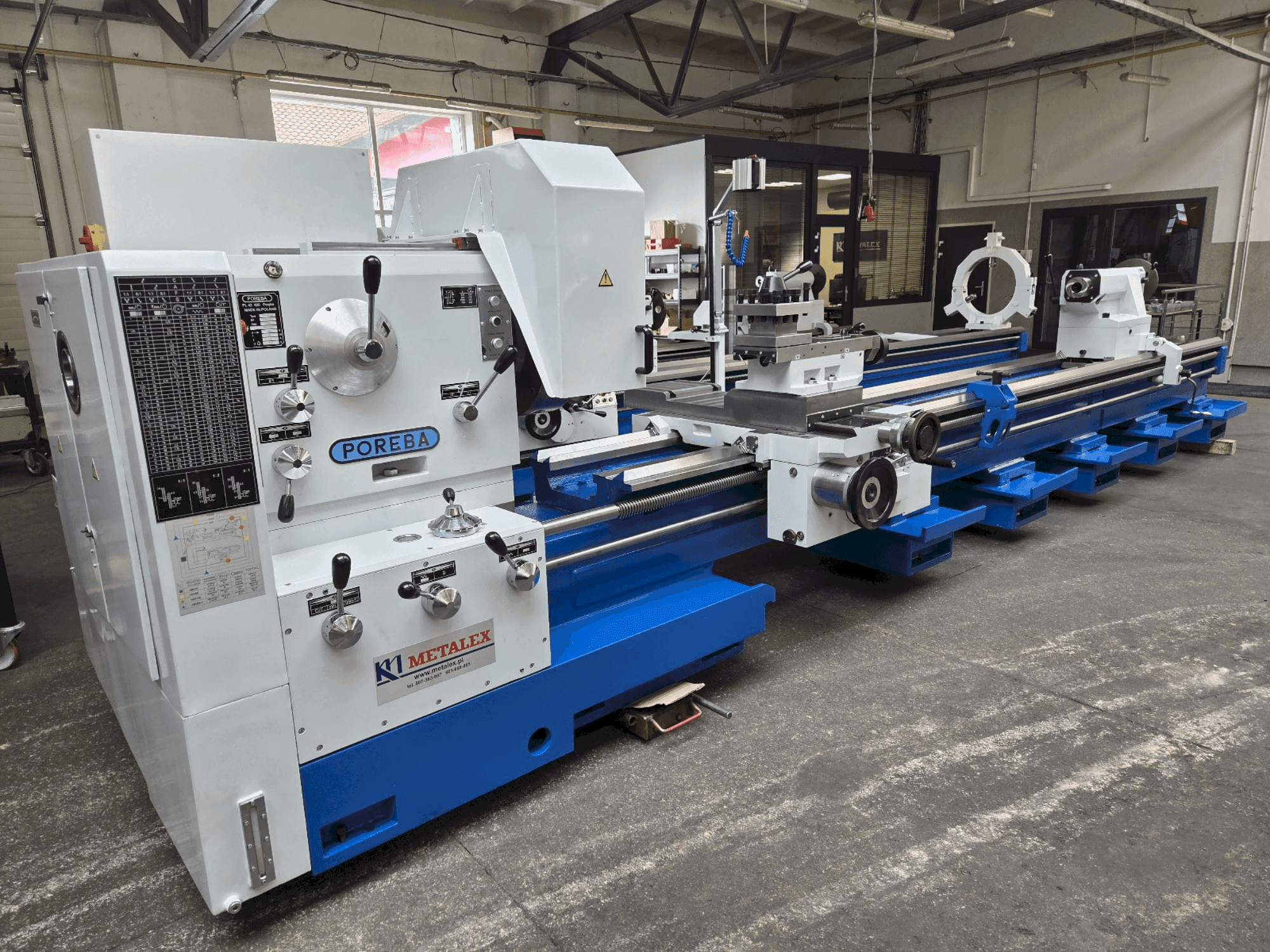

This Poreba TPK 90/5M horizontal turning machine was manufactured in 1984. It features a swing over bed of 930 mm, a spindle bore diameter of 95 mm, and can handle workpiece weights up to 9,000 kg with two steady rests. It includes a tailstock, coolant pump, chuck guard, and tool holder. Consider the opportunity to buy this Poreba TPK 90/5M horizontal turning machine. Contact us for more information about this machine.

Overview

brand: Poreba
year: 1984
MODEL: TPK 90/5M
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine

Technical Information - Poreba TPK 90/5M

General Data

Measurements width: 1800 mm
Measurements depth: 7500 mm
Measurements height: 1800 mm
Machine weight: 7300 kg

Main drive

Number of spindles: 21
Spindle speed range: 8 – 800 rpm 1/MIN
Spindle motor power: 16 / 22 kW (1st gear / 2nd gear)
Spindle bore: 95 mm
Number of axis: 2

Workpiece

Workpiece drm over bed: 930 mm
Workpiece drm over support: 650 mm

General Data

Measurements width: 1800 mm
Measurements depth: 7500 mm
Measurements height: 1800 mm
Machine weight: 7300 kg

Main drive

Number of spindles: 21
Spindle speed range: 8 – 800 rpm 1/MIN
Spindle motor power: 16 / 22 kW (1st gear / 2nd gear)
Spindle bore: 95 mm
Number of axis: 2

Workpiece

Workpiece drm over bed: 930 mm
Workpiece drm over support: 650 mm

Additional Equipment

- Standard equipment includes Coolant pump, Chuck guard, Tool holder
- Optional equipment available: 3- or 4-jaw chuck, various diameters and versions
- Digital Read Out (DRO) for 2 axes, incl. display, installation, and calibration
- Steady rest 40–400 mm with rollers
- Steady rest 400–600 mm with rollers
- MULTIFIX quick-change tool post

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between centers / turning length: 5000 mm
- - Swing in gap: 1200 mm
- - Maximum workpiece weight between centers: 6000 kg
- - Maximum workpiece weight between centers + 1 steady rest: 7500 kg
- - Maximum workpiece weight between centers + 2 steady rests: 9000 kg
- - Number of feeds: 80
- - Feed range (mm/rev): - longitudinal: 0. 1 – 12. 8, - cross: 0. 05 – 6. 4

Extra information

- Machine completly overhauled. Comes with 12 months warranty.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
