IMA - BIMA 210 100/300BE-CNC-IMA-2000-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Wood Working
- ➤ Used IMA BIMA 210 100/300 - For Sale | gindumac.com

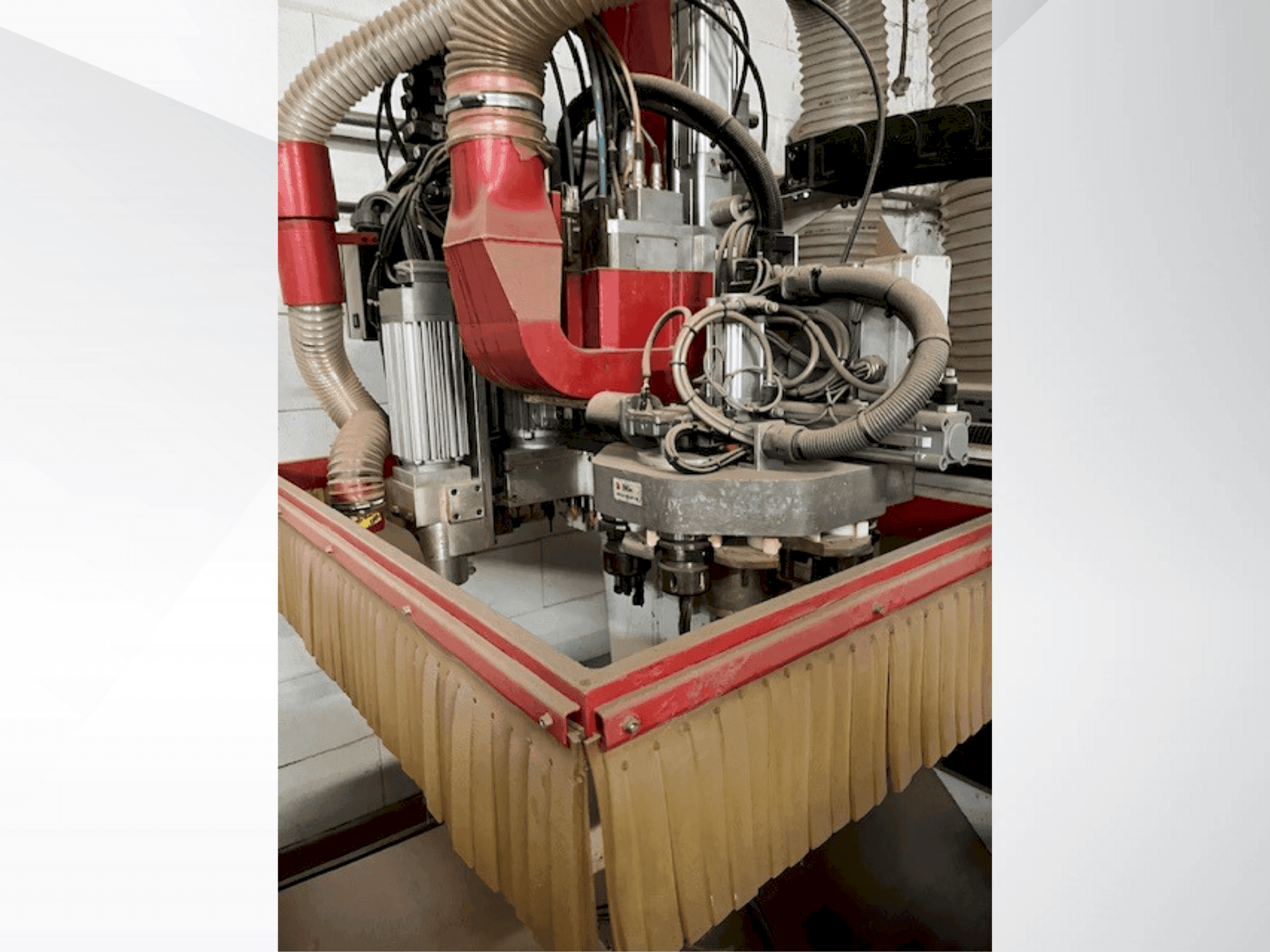

This 3-axis IMA BIMA 210 100/300 CNC Wood Machining Centre was manufactured in 2000. Ideal for advanced woodworking tasks, this machine ensures precision and efficiency in operation. Consider the opportunity to buy this IMA BIMA 210 100/300 CNC Wood Machining Centre. Contact us for more information.
Overview
- brand: IMA
- year: 2000
- MODEL: BIMA 210 100/300
- application type: CNC Wood Machining
- Location: Belgium
- machine type: CNC Wood Machining Centre
Technical Information - IMA BIMA 210 100/300
Dimensions
- Machine Weight: 5000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 3000 mm
- Y-axis Travel: 1480 mm
- Z-axis Travel: 440 mm
Additional Information
Machine Benefits
Technical Machine Benefits
- Y (with vertical drilling spindles) = approx. 1200mm
- Y (with horizontal drilling spindles) = approx. 1250mm
- Alternating field range: without pendulum machining: x = 2x 1400mm, free space in the middle: 200mm with pendulum machining: x = 2x 900mm, free space in the middle: 1200mm
- Max. Clamping height: z = approx. 80mm
- Work table height: 950mm
- Mains voltage: 3x 400v
- Frequency: 50hz
- Control voltage: 24v
Extra Information
Machine still under power
