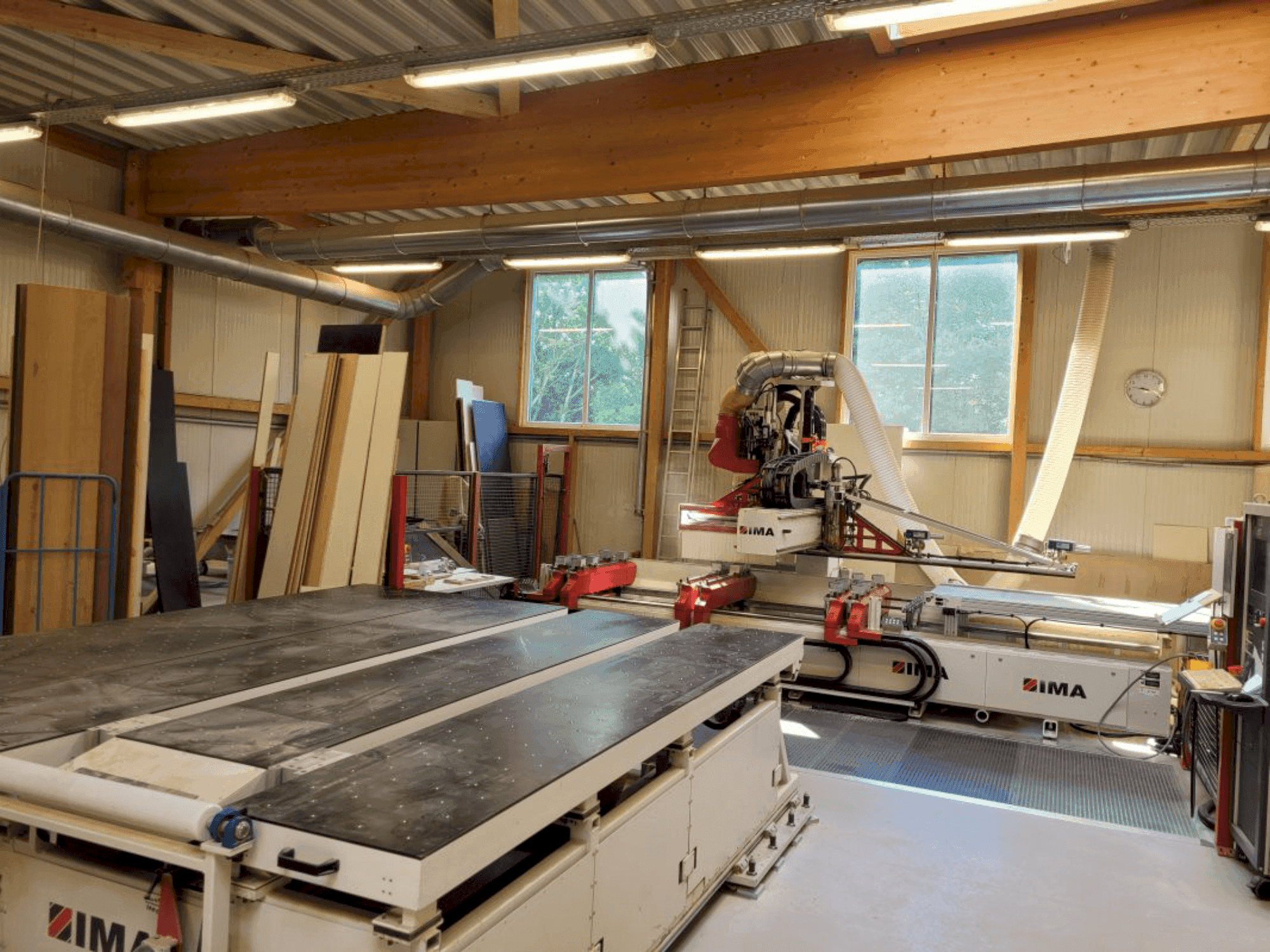

IMA - BIMA CUT 120/300DE-CNC-IMA-2008-00002

Additional Equipment

• - Automatic central lubrication
• - Volautomatic set-up table
• - Safety tread mats
• - IMAWOP 6.0
• - Suction traverse at delivery for automatic discharge transport
• - Driven conveyor belt for discharge transport

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - 6 continuously adjustable support arms in x-direction with one front stop each
  • - 18 vacuum cups: 100 mm x 100 mm x 50 mm
  • - Automatic slide-in table dimensions: x = 2800 mm, y = 2800 mm, z = 34 mm
  • - 4-axis milling spindle: 7. 5 kw, 8000-24000 rpm, automatic 18-fold rotation changer
  • - 3-axis milling spindle: 4 kw, 7500-12000 rpm, manual tool changer
  • - Drilling unit with 21 individually controllable vertical spindles
  • - Adapter unit saw: 90 degrees fixed // adapter unit: horizontal drilling and milling head (cross head)
  • - Vacuum pump: 100 m³/h
  • - Extraction connection: d = 250 mm, single extractions with automatic slide controls
  • - Compressed air: 7 bar constant

Extra information

• - Workpiece Workpiece thickness: 14-38 mm Max clamping height from the upper edge of the suction plate: 100 mm Working height: approx. 1000 mm Working range without pendulum machining: 2 x 1400 mm Working range with pendulum machining: 2 x 900 mm Free space in the center: 200 mm Min part dimensions in automatic mode: Length = 295 mm, Width = 115 mm Max part dimensions in automatic mode: Length = 3000 mm, Width = 1200 mm
