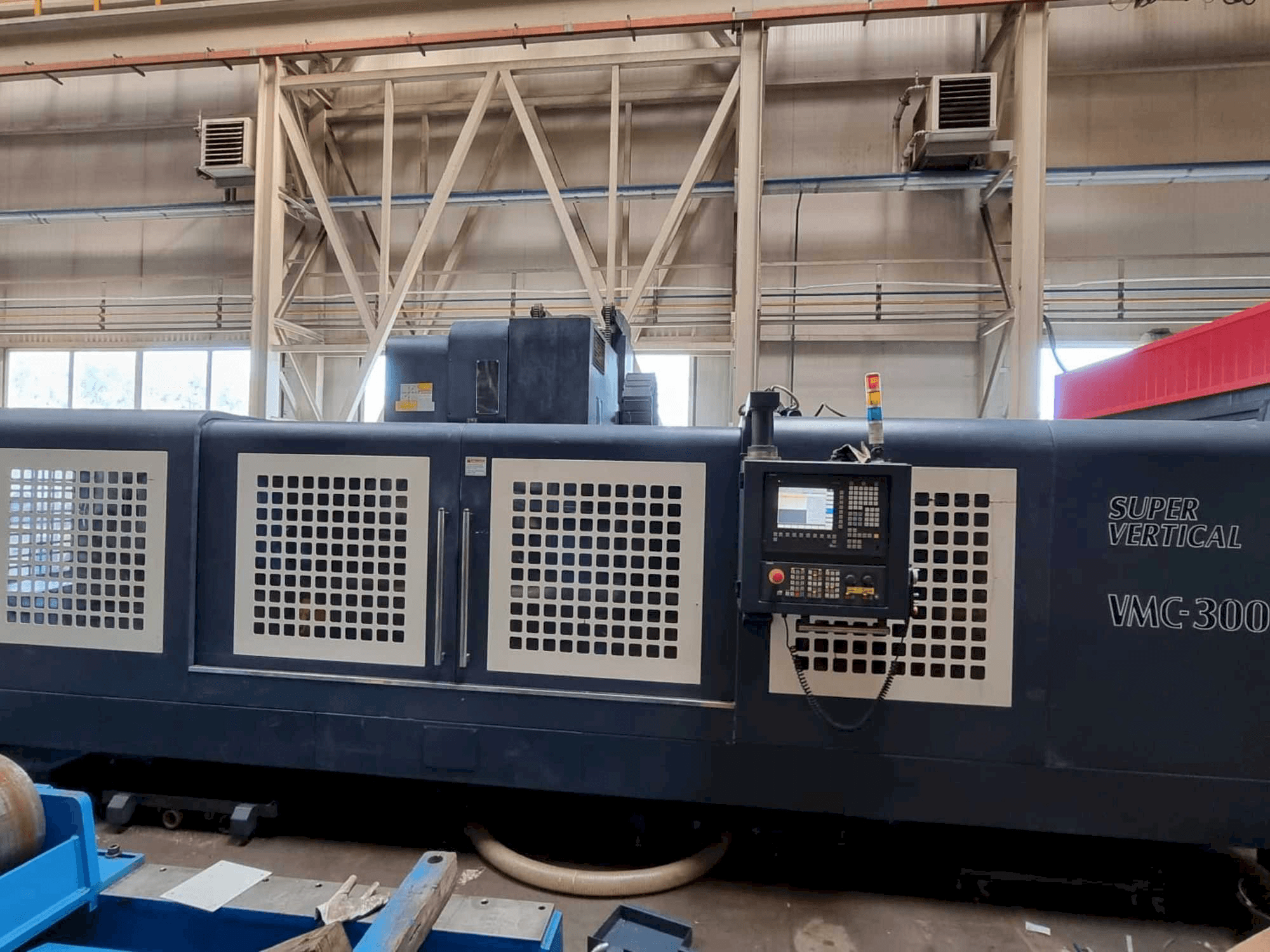

Front view of Johnford VMC-3000S machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Johnford VMC-3000S

Photo Gallery

Johnford - VMC-3000SPL-MIL-JOH-2009-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Johnford VMC-3000S Vertical Machining Center

Show in original language

This Johnford VMC-3000S Vertical Machining Center was built in the year 2009. This 3 axis machine is operated through a Siemens SINUMERIC control unit. It can work with a spindle speed range 80 - 8000 rpm. This machine is in very good working condition, ready for tests.

Overview

brand: Johnford
year: 2009
MODEL: VMC-3000S
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - Johnford VMC-3000S

Control Unit

Control Brand: SIEMENS
Control Model: Sinumeric

Dimensions

Machine Depth: 5330 mm
Machine Height: 3675 mm
Machine Weight: 23000 kg
Table Length: 3200 mm
Table Load: 4800 kg
Table Width: 1000 mm

Movement

Number of Axes: 3
X-axis Travel: 3050 mm
Y-axis Travel: 1100 mm
Z-axis Travel: 800 mm

Technical Specification

Spindle Speed: 8000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Machine in very good working condition
Ready for tests

Technical Machine Benefits

Spindle nose to table 150-950 mm
Spindle center to column: 1150 mm
Spindle power 15hp (30 min) 10hp (const. )
Spindle taper: bt-40/cat-40
Spindle dim. 70 mm
No. Of tools: 24 pcs
Max tool dim. 75 mm
Max tool weight 10 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
