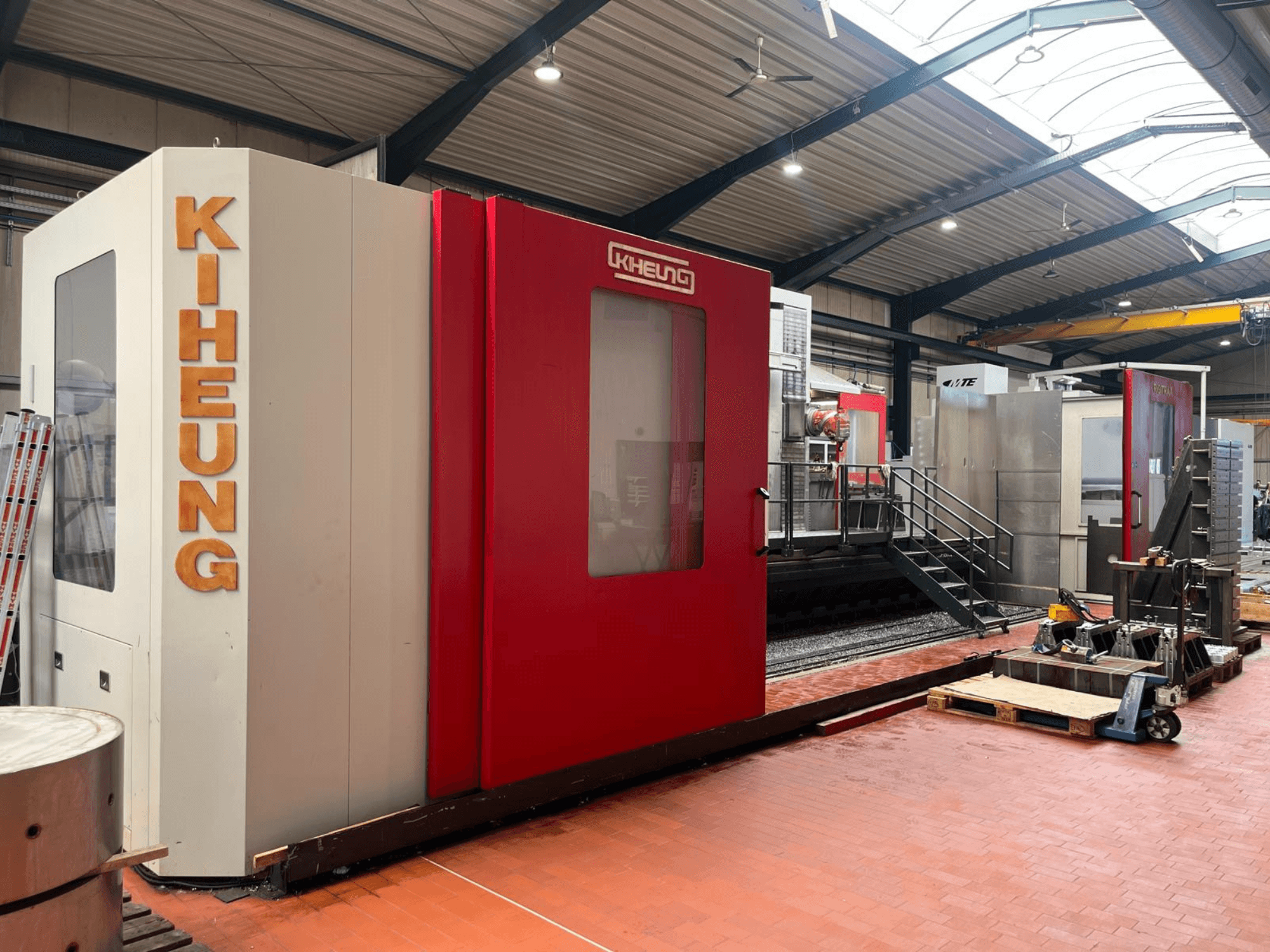

KIHEUNG RIGITRAX X 8000

Photo Gallery

KIHEUNG - RIGITRAX X 8000DE-MIL-KIH-2011-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used KIHEUNG RIGITRAX X 8000 - For Sale | gindumac.com

Show in original language

This 5-axis KIHEUNG RIGITRAX X 8000 was manufactured in 2011. It features an impressive X-axis travel of 8000 mm, Y-axis travel of 1350 mm, and Z-axis travel of 2000 mm. The machine is equipped with a powerful 28 kW spindle motor and a 40-fold tool changer for efficient operations. If you are looking to get high-quality milling capabilities, consider the KIHEUNG RIGITRAX X 8000 bed type milling machine we have for sale. Contact us for further details.

Overview

brand: KIHEUNG
year: 2011
MODEL: RIGITRAX X 8000
application type: Milling
Location: Germany
machine type: Bed Type Milling Machine
control unit brand: HEIDENHAIN

Technical Information - KIHEUNG RIGITRAX X 8000

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530 BF 150 LCD with smartTNC, Mousepad, and DXF-Converter

Dimensions

Machine Weight: 45000 kg
Table Length: 9950 mm
Table Width: 1150 mm

Movement

Number of Axes: 5
X-axis Travel: 8000 mm
Y-axis Travel: 1350 mm
Z-axis Travel: 2000 mm

Technical Specification

Spindle Power: 28 kW
Spindle Speed: 4000 RPM

Additional Information

- Main Computer: MC 422 C with Software option 1 & 2

- Table Length: 9950 mm

- Table Width: 1150 mm

- T-Slots Surface: 9 x 22 / 10 x 22 nr. x mm

- T-Slots Distance: 125 mm

- T-Slots Front Surface: 2 x 22 mm

- Max. Table Load: 3500 kg/qm

- Feed Rate (all 3 axes): 10000 mm/min

- Rapid Traverse (X, Y, Z axes): 16000 mm/min

- Feed Power X-Axis: 70 Nm

- Feed Power Y-Axis: 27 Nm

- Feed Power Z-Axis: 50 Nm

- Spindle Taper: ISO 50, DIN 69871

- Spindle Speed Range (2 Steps):

- 1st Step: 0 - 1000 U/min

- 2nd Step: 1001 - 4000 U/min

- Main Spindle Motor Power (100% / 60%): 28 / 38 kW (SIEMENS Main Spindle Motor)

- Axis Drives: AC-Drives SIEMENS

- Coolant Tank Volume: 500 l (without through-spindle cooling) / 1500 l (with through-spindle cooling - 2 pumps)

- Linear Measuring System: HEIDENHAIN scales with DA 300 compressed air system

- Spindle Gearbox: ZF reduction gear, 2-speed (1-1000 / 1001-4000 rpm), cooled

- Milling Head: Universal Automatic Milling Head A 4 Plus, "HURON" system, cooled, bi-rotational 2.5° x 2.5°, programmable and automatic positioning in 2.5° of the 45° and 90° planes (5-axis simultaneous / indexing preparation)

- Tool Changer: 40-fold vertical/horizontal chain-type system, driven via servomotor, HEIDENHAIN encoder monitoring

- Through-Spindle Coolant (CTS / IKZ): 16 bar high-performance cooling system with paper filter (DEUBLIN rotary union, 16 bar for spindle, 8 bar for 6 coolant nozzles at spindle nose)

- Coolant Tanks: 2 tanks (1200 l clean tank and 500 l pre-tank) with paper band filter system (500 mm paper width, 10 micron filtration fineness)

- Chip Conveyor: Wide hinged belt conveyor X 8000 rear-side, elevated discharge

- Measuring Preparations: Prepared for TS 220 workpiece touch probe and TT 140 tool touch probe

- Additional Features: Hydraulic counter-weight balance in Z-axis, spindle orientation for rigid tapping, PLC prepared for 4th axis, automatic taper blow-out unit (A2 + A4 head), automatic central lubrication, electronic portable handwheel HEIDENHAIN HR-410, Ethernet interface, automatic Power-Off

- Machine Enclosure: Partial machine enclosure with 2 front doors for X 4000 or 4 front doors for X 6000 - X 8000

- Paint Finish: Light grey RAL 7035, Carmine red RAL 3002

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
