KNUTH ECOMILL 450

Photo Gallery

KNUTH - ECOMILL 450HU-MIL-KNU-2014-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
KNUTH ECOMILL 450

Show in original language

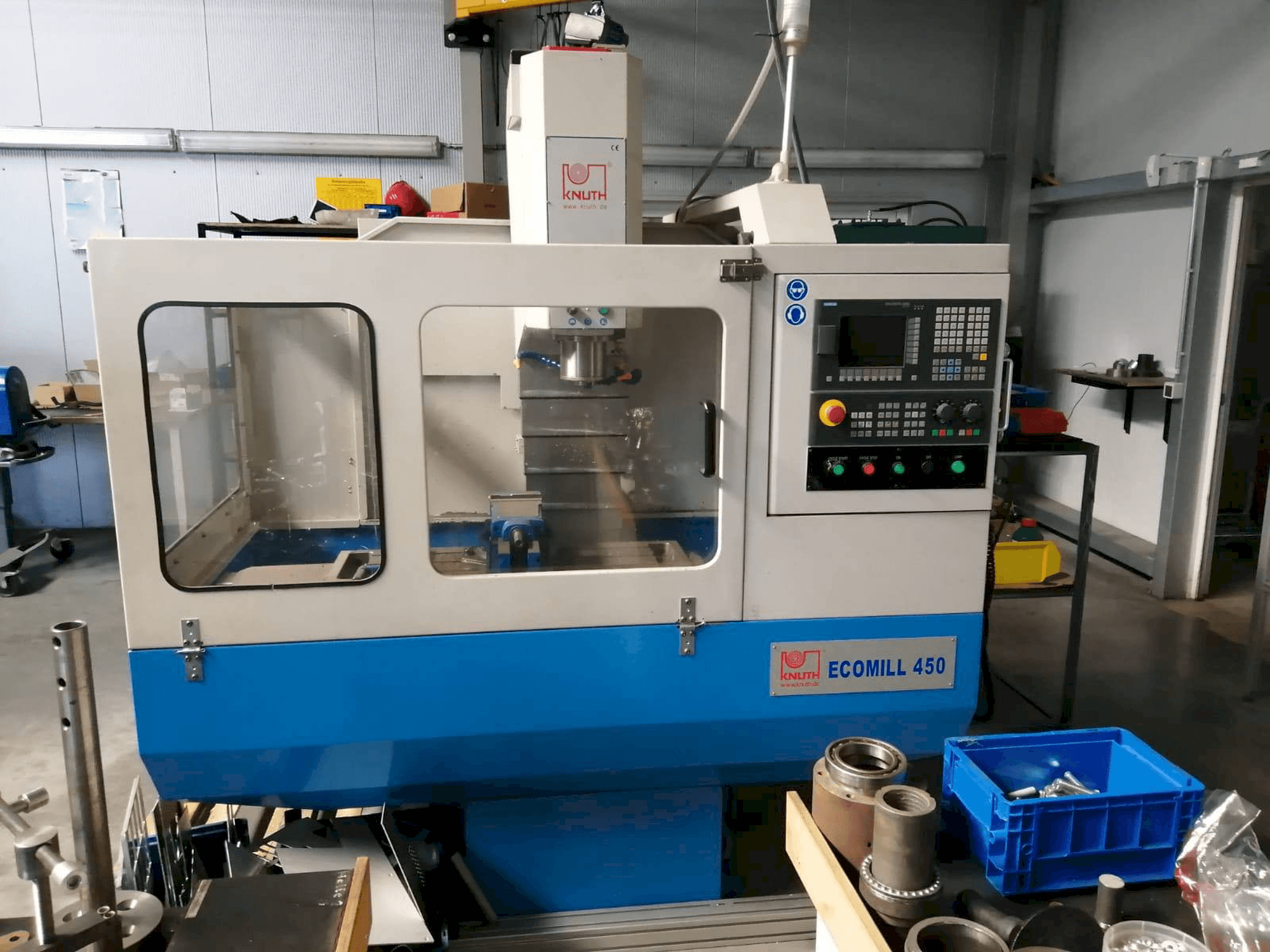

This KNUTH ECOMILL 450 Milling Machine was made in 2014 in Germany. It is operated through a SIEMENS 808D control unit. This 3 axis machine incorporates a spindle speed range 100 - 8000 rpm.

Overview

brand: KNUTH
year: 2014
MODEL: ECOMILL 450
application type: Milling
Location: Hungary
machine type: CNC Milling Machine
control unit brand: SIEMENS

Technical Information - KNUTH ECOMILL 450

General Data

Measurements width: 1920 MM
Measurements depth: 1690 MM
Measurements height: 2100 mm
Machine weight: 1900 KG

Control Unit

Brand: SIEMENS
Model: 808D

Main drive

Spindle speed range: 100 - 8000 1/MIN
Spindle motor power: 7 kw
Tool taper: BT40
Number of axis: 3

Movement

X-AXIS Movement: 450 mm
X-AXIS Working Feed: 5000 mm/min
Y-AXIS Movement: 300 mm
Y-AXIS Working Feed: 5000 mm/min
Z-AXIS Movement: 400 mm
Z-AXIS Working Feed: 5000 mm/min

Table

Outer length: 920 MM
Outer width: 280 mm
TSlots size: 14
Table load: 250 kg

Media

Main electronic connection: 400 v 50/60 hz
Power consumption: 15 kVA

Additional Information

Machine Benefits

Technical Machine Benefits

T grooves in the table 3 pieces
T-groove distance 85 mm
Spindle front table plane distance 110 - 510 mm
X/y high speed 10000 mm/min; z high speed 8000 mm/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
