Krauss Maffei 650-4350BM-MC4 Injection moulding machine

Show in original language

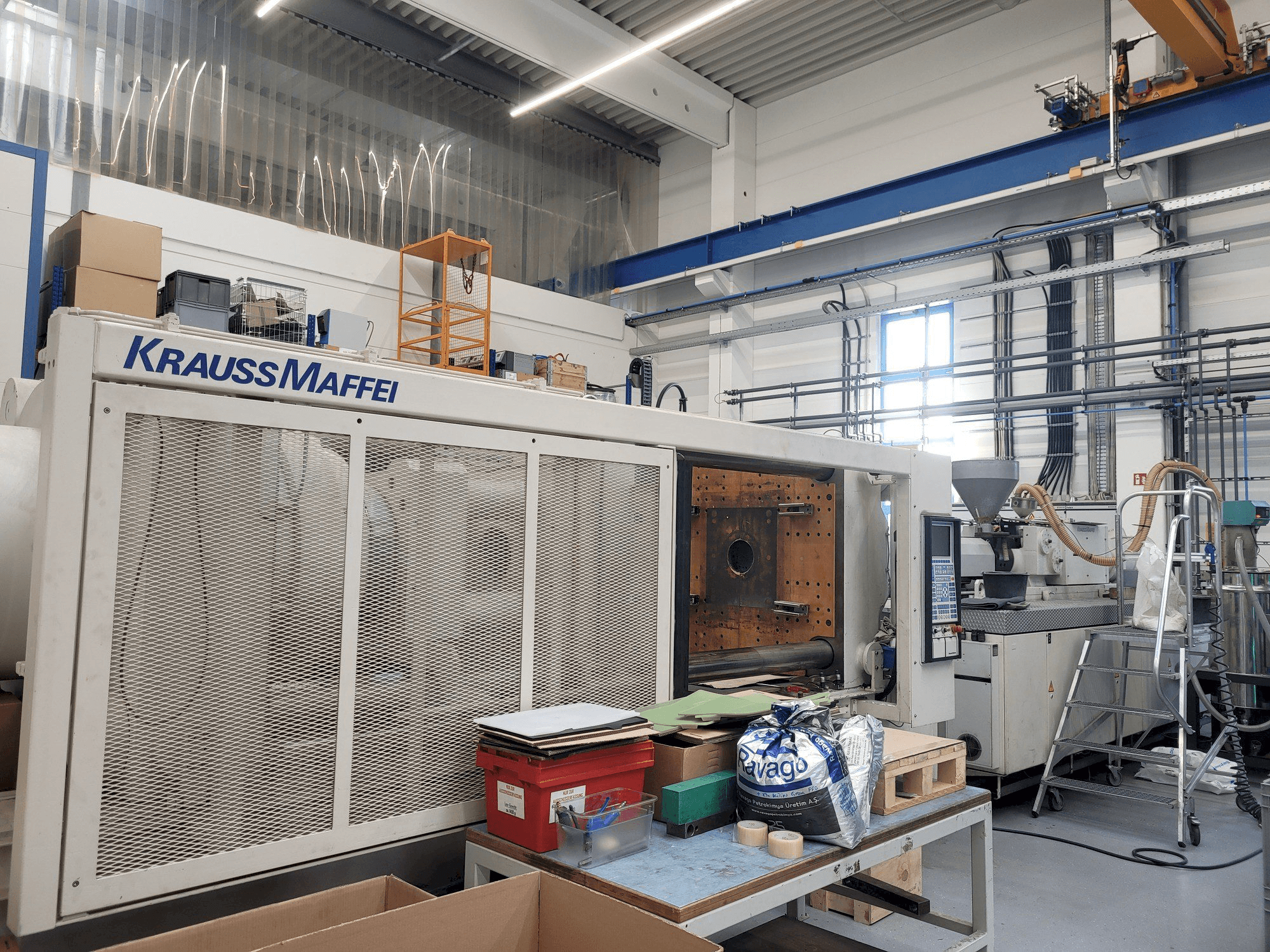

This Krauss Maffei 650-4350BM-MC4 Injection moulding machine was built in the year 1991 and had been fully overhauled by KraussMaffei in the year 2005, has 10660 power hours, of which 5855 are working hours. It is equipped with a Krauss Maffei control unit. The machine has a clamping force of 6500 kN and a screw diameter of 95 mm.

Overview

brand: Krauss Maffei
year: 1991
MODEL: 650-4350BM-MC4
production hours: 10660
application type: Injection Moulding
Location: Germany
machine type: Injection Moulding Machines
availability: Sold
control unit brand: Krauss Maffei
GINDUMAC ID: DE-INJ-KRA-1991-00001

Technical Information

Control Unit

Brand: Krauss Maffei

Injection Unit

Screw diameter: 95 mm

Clamping unit

Clamping force: 6500 kn
Mould height min: 600 mm
Ejector stroke: 250 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - The machine has a cascade control (8-fold)
- - 2x core pull control nozzle side
- - 2x core pull control ejector side
- - Size of mold fixing platens (h x v): 1430 x 1350 mm
- - Clearance between columns (h x v): 1000 x 900 mm
- - Tool opening travel max: 1150 mm
- - Opening width max: 1750 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
