- Welding system KUKA KR16 ARC

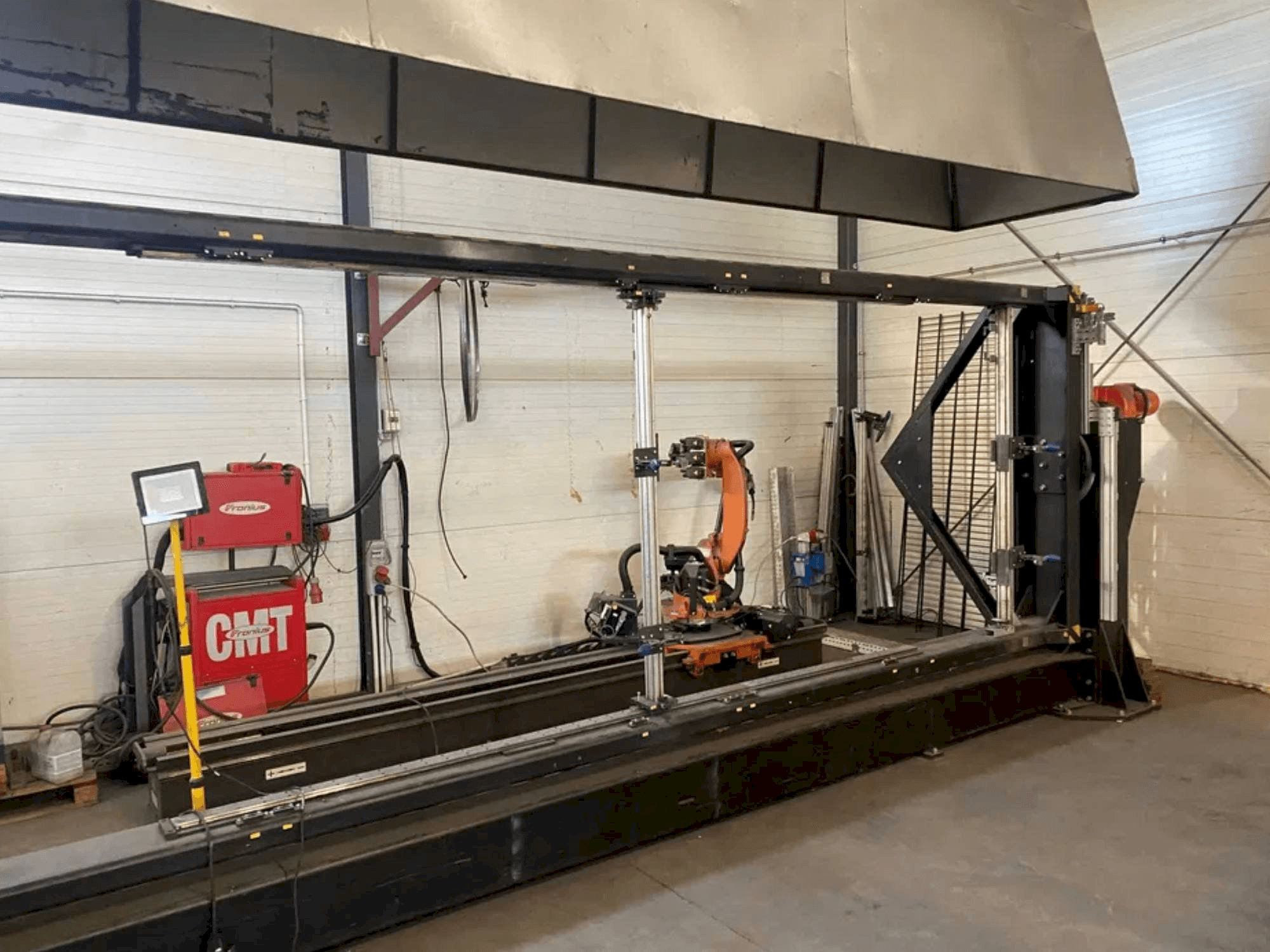

This Welding system KUKA KR16 ARC was manufactured in the year 2009 in Germany. The system includes a Robot KUKA KR 16 L6 ARC-C, with 50 hours and a max load of 6 kg, and a welding station Fronius TransPuls Synergic 4000 CMT R, with a pulse welding up to 400 A a process of MIG/MAG, and a base metals: Aluminium, CrNi, Special metals, Steel.
Overview
- brand: KUKA
- year: 2009
- MODEL: KR 16 L6 ARC-C
- production hours: 50
- application type: Robotics
- Location: Poland
- machine type: Robot
- availability: Sold
Technical Information - KUKA KR 16 L6 ARC-C
General Data
- Measurements width: 7887 mm
- Measurements depth: 2000 mm
- Measurements height: 2407 mm
- Machine weight: 4940 kg
Additional Information
- Technical Machine Benefits:
- - The system includes:
- - 1- robot: kuka kr 16 l6 arc-c yom: 03/2009 working hours: 50h max load: 6 kg
- - 2- welding station: fronius transpuls synergic 4000 cmt r pulse welding up to 400 a process: mig/mag base metals: aluminium, crni, special metals, steel
- - System parameters:
- - Base width: 960mm
- - Axis position relative to the ground: 1407mm
- - Axle position relative to link 300: 1082mm
- - Spacing between discs: 6350mm
- - Load capacity on rotary table: 1040kg
- - Total load capacity: 2000kg
- Qualitative Machine Benefits:
- - Rotary table weight: 960kg
- - 4 lifting shackles, each with lifting capacity: 3250 kg
- - The first installation and start up in 2017
- - The system is designed for welding sliding gates, fence spans but possible other applications. Full documentation available, ready for presentation
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
