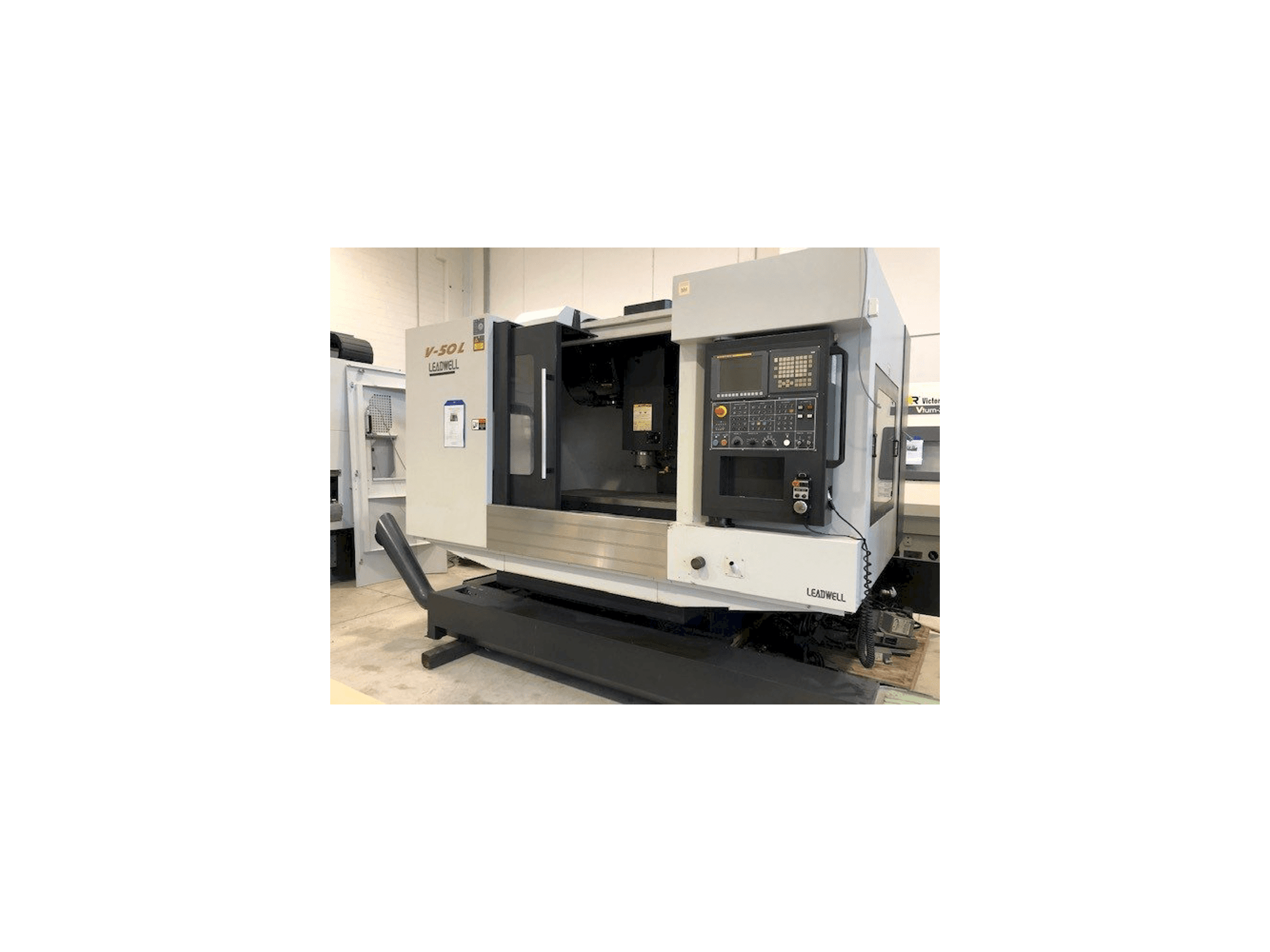

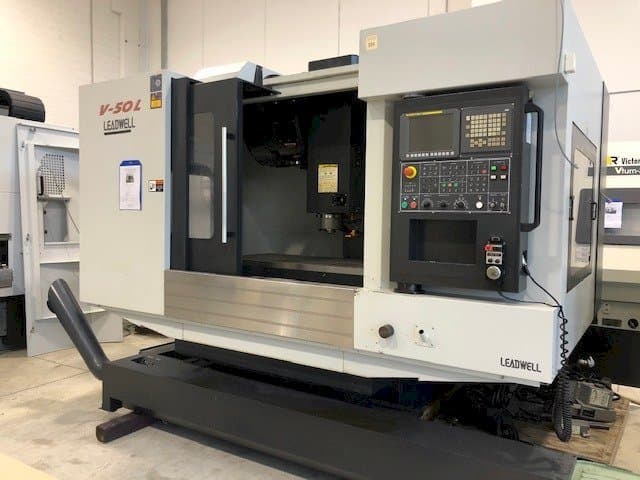

- LEADWELL V50L Vertical Machining center
Show in original language
This LEADWELL V50L Vertical Machining center was manufactured in the year 2013. It is equipped with a Fanuc 0 i MD control unit and has 3 axis. The machine has a spindle speed of 10000 rpm.
Overview
- brand: Leadwell
- year: 2013
- MODEL: V50L
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - Leadwell V50L
Control Unit
- Control Brand: FANUC
- Control Model: 0 i MD
Dimensions
- Machine Weight: 7000 kg
- Table Length: 1420 mm
- Table Load: 1000 kg
- Table Width: 610 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1270 mm
- Y-axis Travel: 635 mm
- Z-axis Travel: 610 mm
Technical Specification
- Spindle Speed: 10000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Feeds: fast x / y / z axes 36/36/36 m / min
- Distance spindle nose - table min / max 100/710 mm
- Distance spindle - column 630 mm
- Spindle connection iso 40
- Spindle motor power 18. 5 / 22 kw
- Tool magazine 24 pos.
- Max tool weight kg. 7
- Max tool size diam / length. Mm. 80 adj. / 250
- Refrigeration a. P. Through 20 bar spindle - chip conveyor and remote electronic handwheel.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
