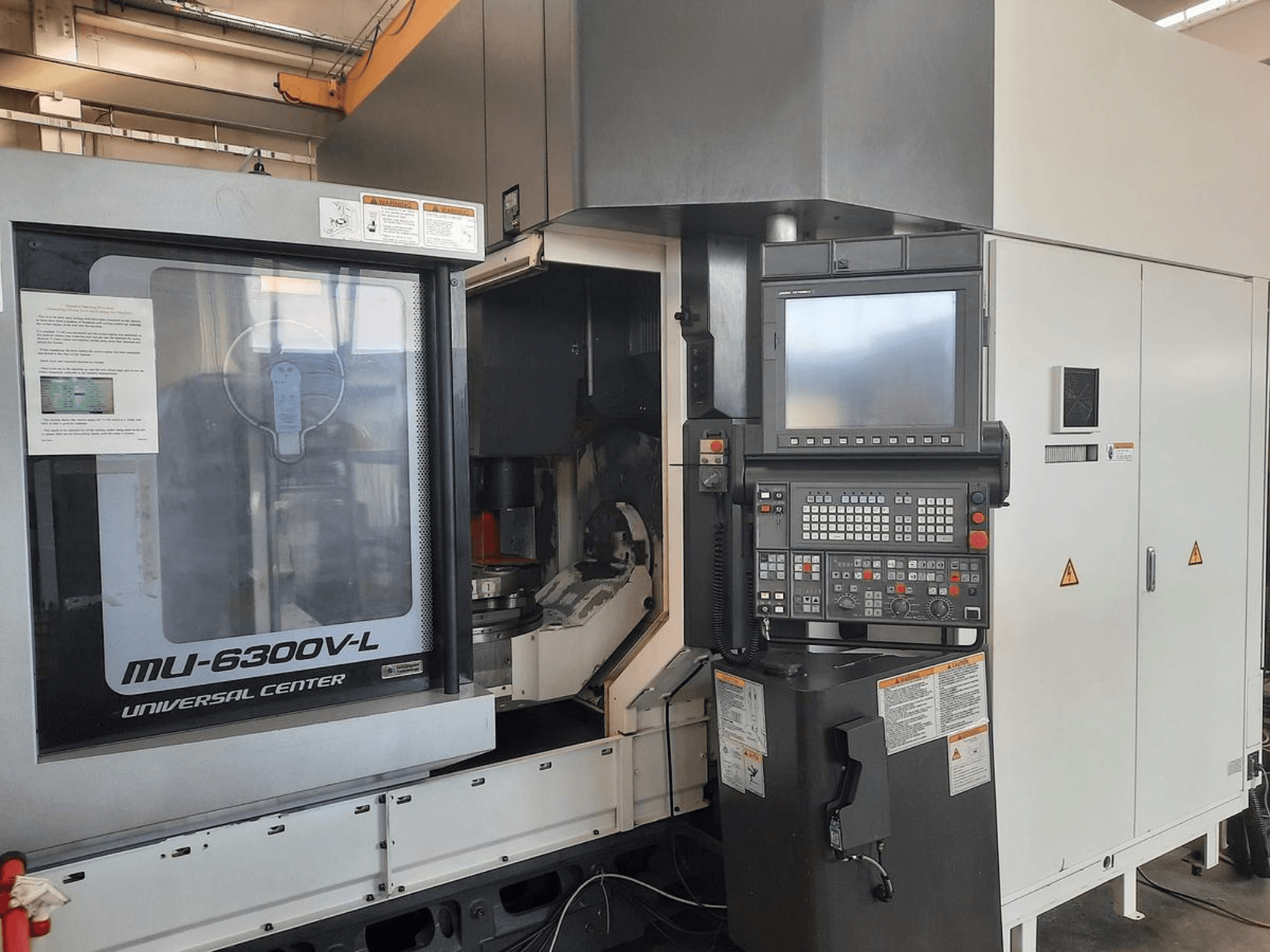

This 5s Okuma MU 6300 V L 5 AXIS was manufactured in 2016. It features a generous X-Axis travel of 1,450 mm and Y-Axis travel of 1,050 mm, providing ample workspace for various machining tasks. With a maximum workpiece diameter of 830 mm and a tool magazine capacity of 64 positions, consider the opportunity to buy this Okuma MU 6300 V L vertical machining centre. Contact us for further details.
Overview
- brand: Okuma
- year: 2016
- MODEL: MU 6300 V L 5 AXIS
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
Technical Information - Okuma MU 6300 V L 5 AXIS
Dimensions
- Table Load: 600 kg
Movement
- Number of Axes: 5
- X-axis Travel: 1450 mm
- Y-axis Travel: 1050 mm
- Z-axis Travel: 600 mm
Technical Specification
- Spindle Power: 15 kW
- Spindle Speed: 8000 RPM
- Taper Size: HSK 63
Additional Information
A-axis rotation: +90° / -120°
C-axis rotation speed: 800 rpm
Distance table–spindle nose: 160–760 mm
Rapid feed (all axes): 50 m/min
C-axis table diameter: 630 mm
Max workpiece size (D × H): 830 × 550 mm
Tool magazine: 64 positions (expandable to 166)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
