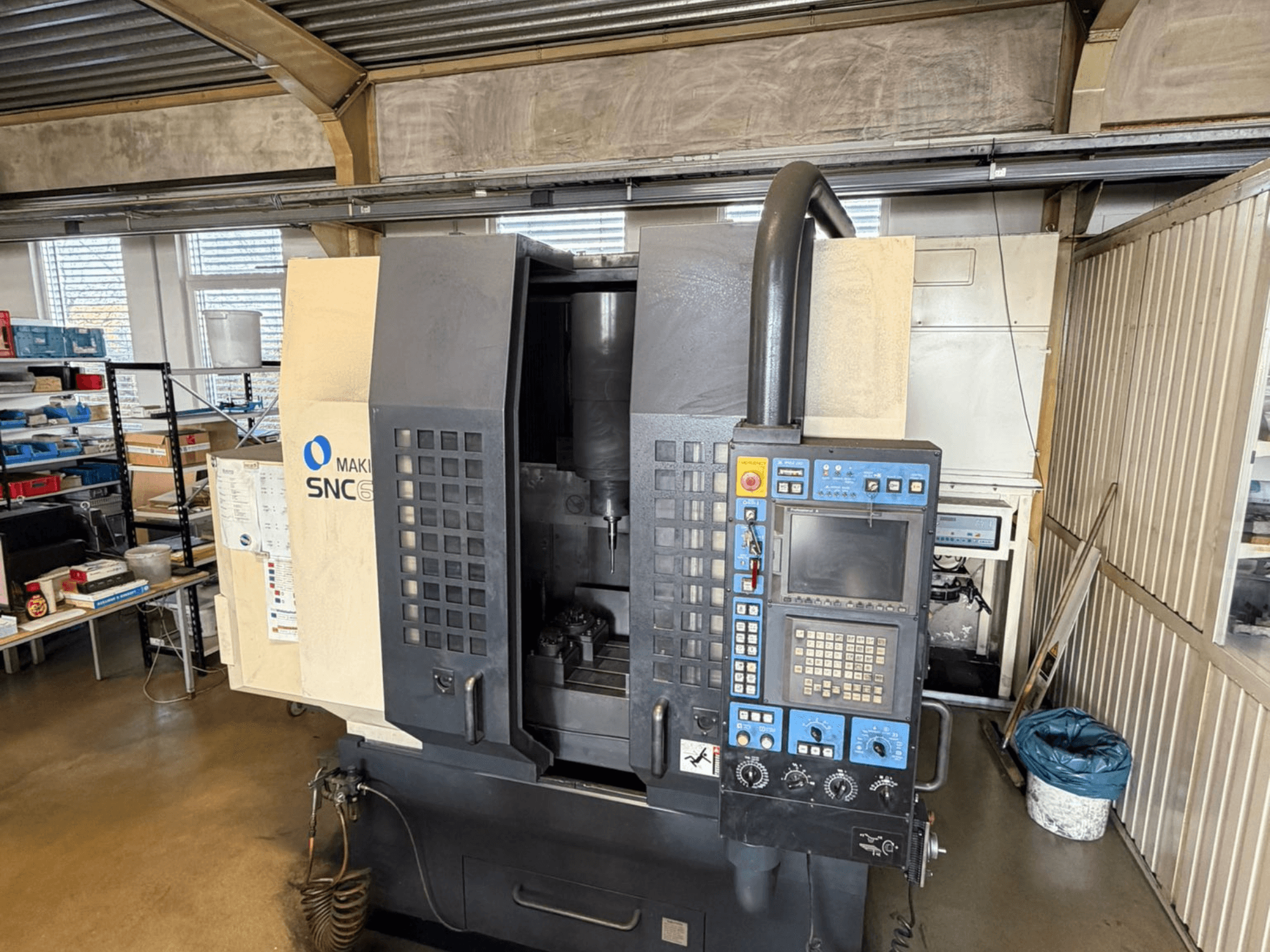

Makino SNC 64-A15 vertical machining center in front view, showcasing control panel, machining area, and industrial workspace.
Makino SNC 64-A15 vertical machining center in front view, showcasing control panel, machining area, and industrial workspace.

Makino - SNC 64-A15AT-MIL-MAK-2001-00001

20,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Makino SNC 64-A15 was manufactured in 2001. It features a main spindle speed ranging from 300 to 30,000 rpm and a spindle motor power of 15 kW. The machine is equipped with a tool magazine holding 15 positions and offers a feed rate of up to 16,000 mm/min. If you are looking to get high-quality graphite and metal machining capabilities, consider the Makino SNC 64-A15 vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: Makino
  • year: 2001
  • MODEL: SNC 64-A15
  • production hours: 11472
  • application type: Milling
  • Location: Austria
  • machine type: Vertical Machining Centre
  • control unit brand: FANUC

Technical Information - Makino SNC 64-A15

Control Unit

  • Control Brand: FANUC
  • Control Model: System 16iM

Movement

  • Number of Axes: 3
  • X-axis Travel: 600 mm

Technical Specification

  • Spindle Power: 15 kW
  • Spindle Speed: 30000 RPM

Additional Information

  • Electrical

    • Operating voltage: 400 V

    • Frequency: 50 Hz

    • Phases: 3-phase

    • Nominal current: 90 A

    • Recommended supply fuse: 100 A (slow-blow/time delay)

    • Supply cable size: 35 mm² copper

    • Wiring diagram: 4036 EP 0024

  • CNC / Control

    • Microcomputer control: Professional A

    • CNC: FANUC System 16iM

    • DNC connection: Data server interface

    • Integrated IC memory: 160 MB

    • Interpolation: NURBS

    • Programs: 125 main and sub-programs storable simultaneously

    • Coordinate input: Polar coordinate input available

    • High-speed contour control: Super-GI

    • Processor: RISC for fast 3D machining calculations

  • Mechanical construction

    • Machine frame: Cast iron welded construction

    • Axes layout: Cross table system (X, Y); Z-axis console type

    • Guides: Preloaded ball linear guideways

    • Thermal stability: Oil circulation cooling for spindle temperature stabilization

  • Axis performance

    • Rapid traverse: up to 16,000 mm/min

    • Simultaneous machining: 3-axis contour milling

    • Contour accuracy: High (Super-GI control)

  • Spindle

    • Tool holder: HSK-A63F

    • Torque: 21 Nm

    • Front bearing diameter: 55 mm

  • Tool system

    • Tool magazine capacity: 15 tools

    • Tool breakage monitoring: Yes

    • Automatic tool changing: Yes

  • Applications / capabilities

    • Graphite electrode milling (incl. long tools)

    • Copper electrode machining

    • Hardened steel milling

    • Designed for automatic production sequences

    • Optimized surface finish capability

    • Contour-accurate 3D milling capability

  • Standard/integrated systems

    • Graphite dust extraction system

      • Dust removal via: air blast, spindle suction, tool suction

    • Filter system with automatic collection container

    • Minimum quantity lubrication (MQL)

    • Designed for high-speed graphite machining

    • Suitable for hardened mold cores

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
