MASTERWOOD - Project 365PL-CNC-MAS-2007-00001

Name: MASTERWOOD Project 365
Brand: MASTERWOOD
SKU: PL-CNC-MAS-2007-00001
Price: 56000 EUR
Availability: InStock

56,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Wood Working
➤ Used MASTERWOOD Project 365 - For Sale | gindumac.com

Show in original language

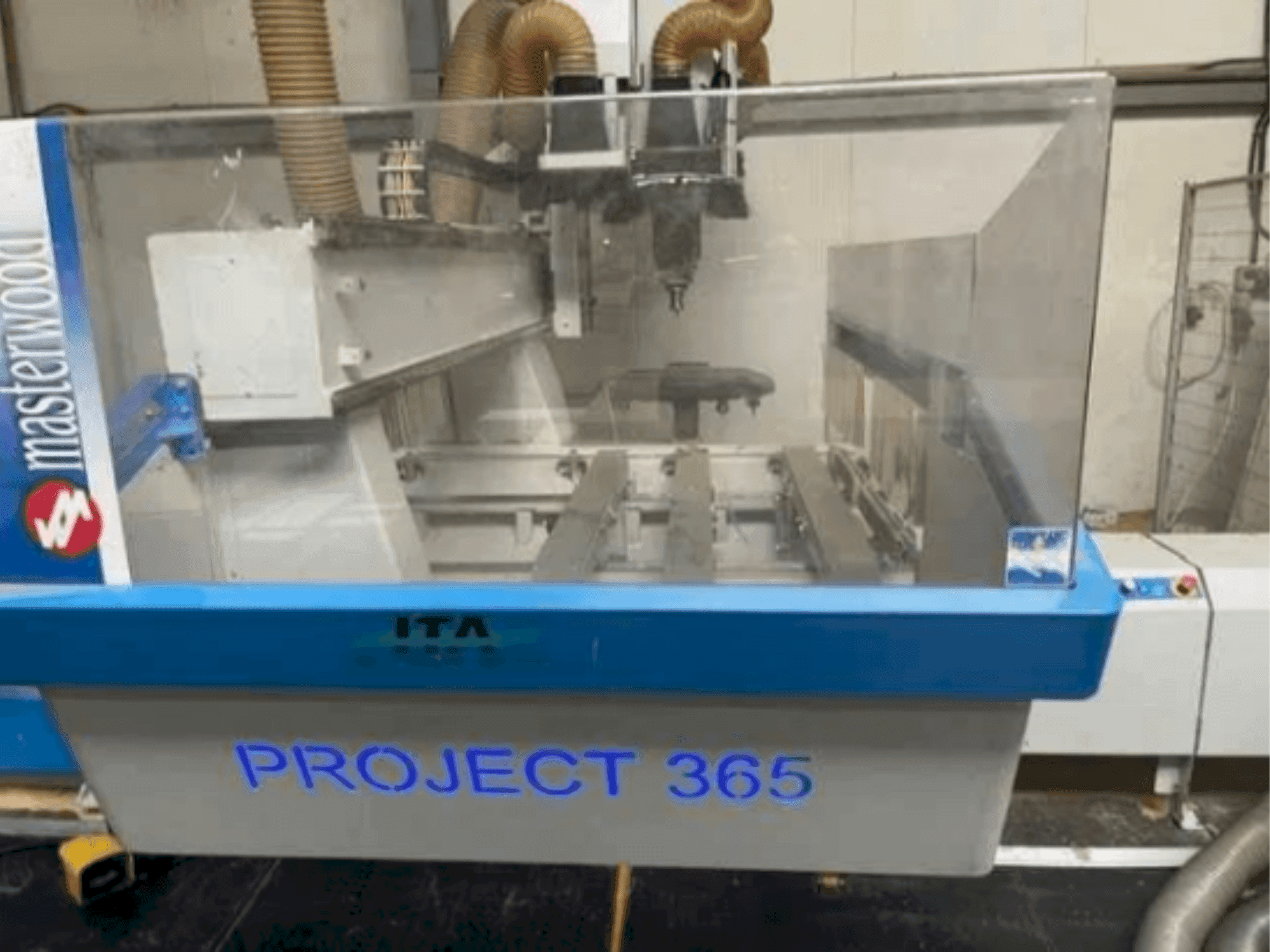

This 5-axis MASTERWOOD Project 365 was manufactured in 2007. It features a 12 kW spindle, max 24,000 rpm, and a 5-axis electric spindle that is water-cooled. The machine includes a tool holder HSK-F63 with 34 tool positions, 13 vertical and 6 horizontal drilling spindles, a grooving saw, and a vacuum pump at 250 m3/h. It supports CAD interface for DXF files and comes with Masterwood Masterwork software. Contact us for more information about this machine.

Overview

brand: MASTERWOOD
year: 2007
MODEL: Project 365
application type: CNC Wood Machining
Location: Poland
machine type: CNC Wood Machining Centre

Technical Information - MASTERWOOD Project 365

General Data

Measurements width: 1650 mm
Measurements depth: 3055 mm
Measurements height: 2000 mm
Machine weight: 4000 kg

Main drive

Spindle speed range: 24000 1/MIN
Number of axis: 5

Tools

Type of tool holder: HSK-F63

Additional Equipment

- Crossheads: 6
- Waste Transport System
- Material Supports and Clamps
- Radio Remote Control
- Second Row of Stops
- Vacuum Pump: 250 m3/h
- CAD Interface for DXF Files

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Machine is in operation
- - Tool positions in magazine: 34
- - Vertical drilling spindles: 13
- - Horizontal drilling spindles (x-axis): 4
- - Horizontal drilling spindles (y-axis): 2
- - Grooving saw direction: x-direction

Extra information

- Control Unit Control System: Masterwood CN PC Software: Masterwood Masterwork

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
