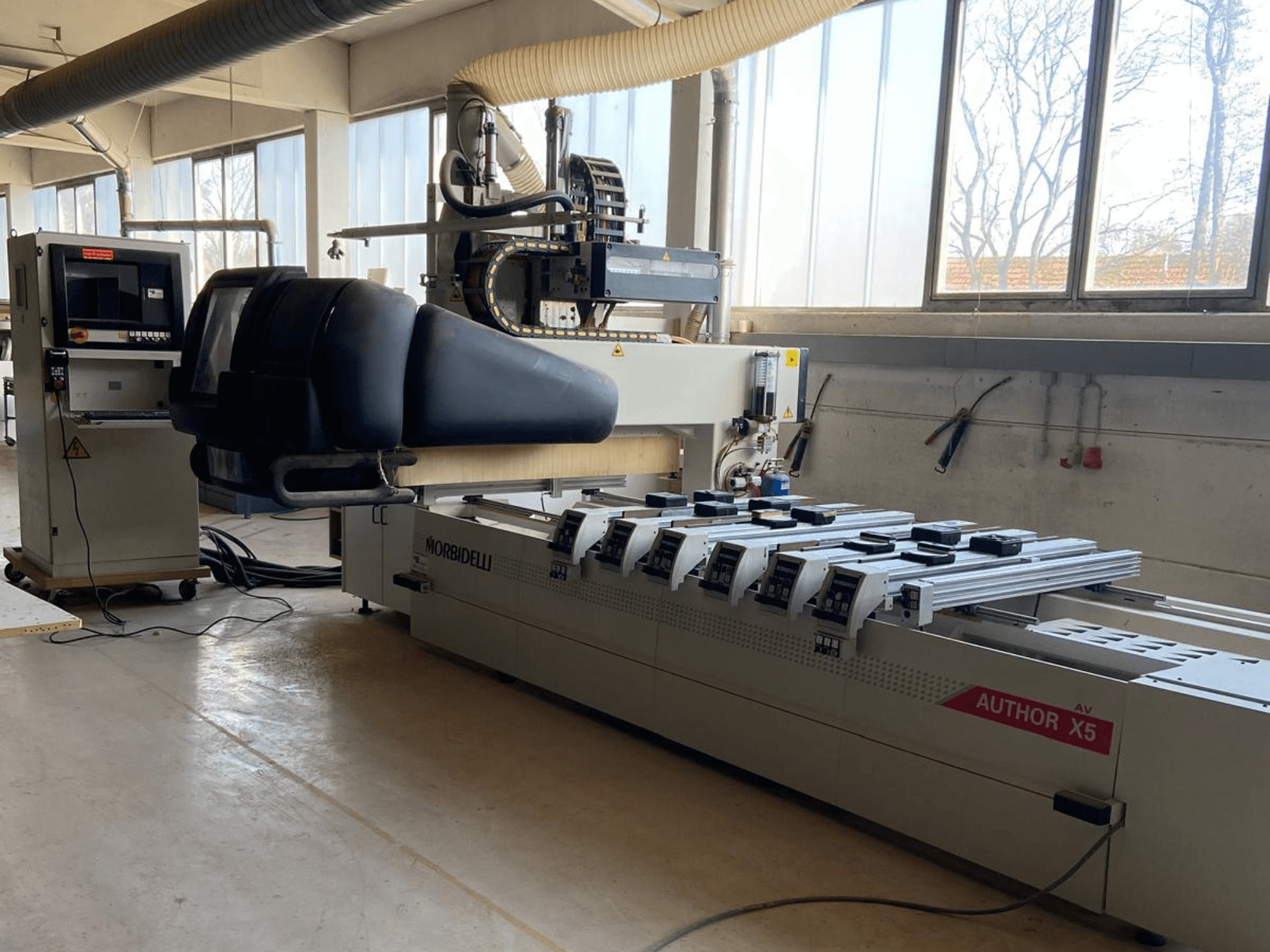

This 5-axis MORBIDELLI Author X5 was manufactured in 2008. It features a working field of 3050 mm in the X direction, 1348 mm in the Y direction, and 400 mm in the Z direction. The machine is equipped with a powerful 11 kW spindle and a tool changer with 12 positions. If you are looking to get high-quality CNC wood machining capabilities, consider the MORBIDELLI Author X5 machine we have for sale. Contact us for further details.
Overview
- brand: MORBIDELLI
- year: 2008
- MODEL: Author X5
- application type: CNC Wood Machining
- Location: Germany
- machine type: CNC Wood Machining Centre
- control unit brand:
Technical Information - MORBIDELLI Author X5
Dimensions
- Machine Weight: 3500 kg
Movement
- Number of Axes: 5
- X-axis Travel: 3460 mm
- Y-axis Travel: 1615 mm
- Z-axis Travel: 400 mm
Technical Specification
- Spindle Power: 11 kW
- Spindle Speed: 20000 RPM
Additional Information
Voltage: 400 V
Frequency: 50 Hz
Current: 48 A
Power supply: 400 V, 50/60 Hz
Power consumption: 28 kVA
Working field: X 3050 mm, Y 1348 mm, Z 400 mm
Rapid speeds: X 50 m/min, Y 45 m/min, Z 22 m/min
Drive system: ball screw in X/Y/Z axes
Pendulum processing: yes
Spindle: 5-axis Morbidelli milling spindle
C axis rotation: 640 degrees
B axis rotation: +/- 100 degrees
Inverter power: 18 kW
Tool holder: HSK 63F
Minimum distance table to spindle: 40 mm
Tool changer: rear tool room in X axis
Tool changer positions: 12
Max tool diameter: 240 mm
Max tool length: 220 mm
Max tool weight: 8 kg
Work table: vacuum clamping system
Vacuum pressure: 3000 Pascal
Control system: NUM 1040
Operating system: Windows XP Professional
Processor: 32-bit Pentium
RAM: minimum 256 MB
Hard disk: minimum 2 GB
Screen: 17 inch
Interface: RS232
Air pressure: 6 to 8 bar
Air consumption: 250 NL/min
Dust extraction connection: 250 mm
Air speed extraction: 30 m/s
Machine dimensions: approx. 5300 x 2200 x 2500 mm
Required space: approx. 6300 x 4000 x 3000 mm
Safety equipment: CE-compliant protection system
Central lubrication: automatic
Drilling head: 12 + 6 spindles
Vertical spindles (Y direction): 5
Vertical spindles (X direction): 8
Horizontal spindles (X direction): 4
Horizontal spindles (Y direction): 2
Vertical spindle pitch: 32 mm
Horizontal spindle pitch: 64 mm
Drilling speed: 4000 rpm
Drilling unit power: 2.2 kW
Drilling tool holder: M10
Pneumatic stroke: 60 mm
Additional equipment
Chip conveyor (included)
Vacuum pump 250 m3/h
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
