Mazak - INTEGREX 200 IV SIT-TUR-MAZ-2010-00004
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Mazak INTEGREX 200 IV S For Sale | gindumac.com

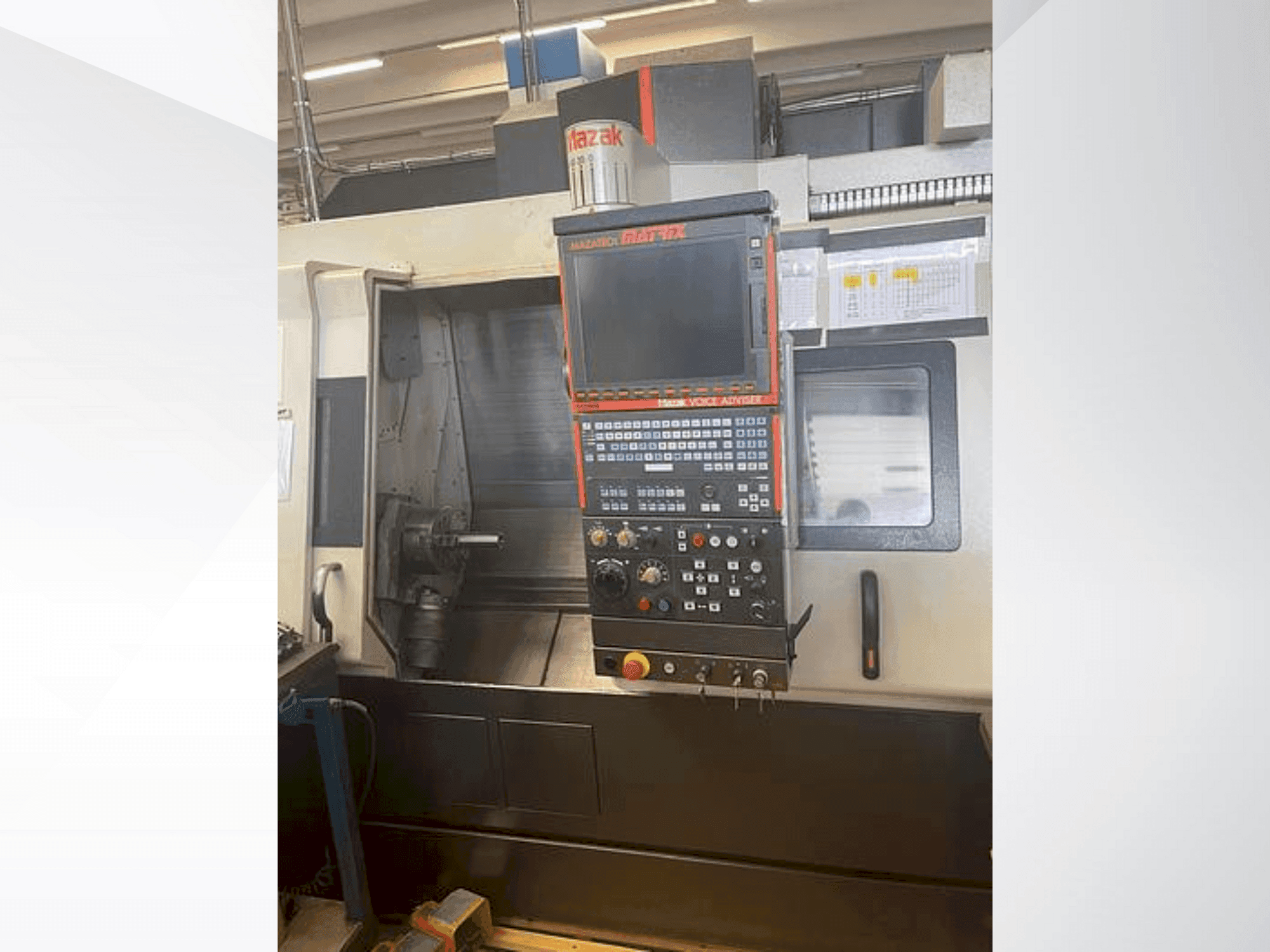

This 5-axis Mazak INTEGREX 200 IV S was manufactured in 2010. A robust horizontal turning machine featuring a Matrix control unit, it handles a maximum workable length of 1050 mm and diameter of 660 mm. It boasts a main spindle speed of 5000 rpm and milling spindle speed of 12,000 rpm. Ideal for complex machining tasks with its high-pressure system through the spindle at 30 BAR. If you are looking to get high quality turning capabilities consider the Mazak INTEGREX 200 IV S machine we have for sale.Contact us for more information.
Overview
- brand: Mazak
- year: 2010
- MODEL: INTEGREX 200 IV S
- application type: Turning
- Location: Italy
- machine type: Turn-Mill Centre
- availability: Immediately
- control unit brand: MAZATROL
Technical Information - Mazak INTEGREX 200 IV S
Control Unit
- Brand: MAZATROL
- Model: Matrix
Main drive
- Spindle speed range: 5000 rpm 1/MIN
- Spindle motor power: 22 KW
Movement
- X-AXIS Movement: 580 MM
- Y-AXIS Movement: 160 MM
- Z-AXIS Movement: 1050 MM
- B-AXIS Movement: 225° MM
Additional Information
- Technical Machine Benefits:
- - Maximum workable length: 1050 mm / maximum workable diameter: 660 mm
- - Bar passage: 51 mm
- - Maximum warehouse capacity: 40 ut
- - Spindle attachment: capto c6
- - High pressure system through the spindle: 30 bar
- - Chip conveyor: yes across the board
- - Spindle speed: main - 5000 rpm, milling - 12000 rpm / self-centering counter spindle diameter: 210 mm
- - Power and counter spindle speed: 18. 5 kw, 5000 rpm / c-axis on the counter spindle: 555°
- Qualitative Machine Benefits:
- - This summary provides key specifications and features of the machine, indicating its availability and technical capabilities.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
