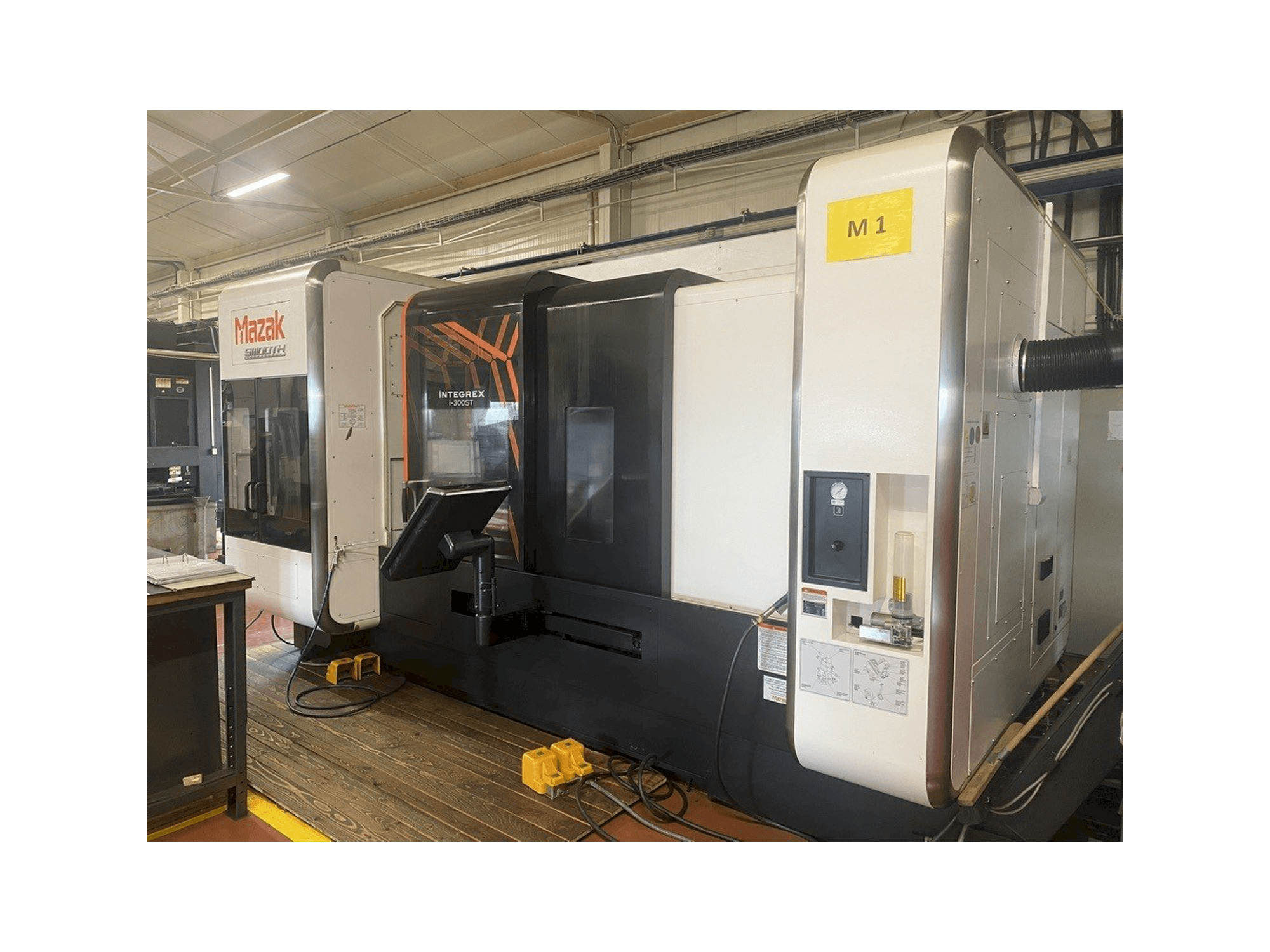

Front view of Mazak INTEGREX i-300 ST machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak INTEGREX i-300 ST

Photo Gallery

Mazak - INTEGREX i-300 STCZ-TUR-MAZ-2018-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

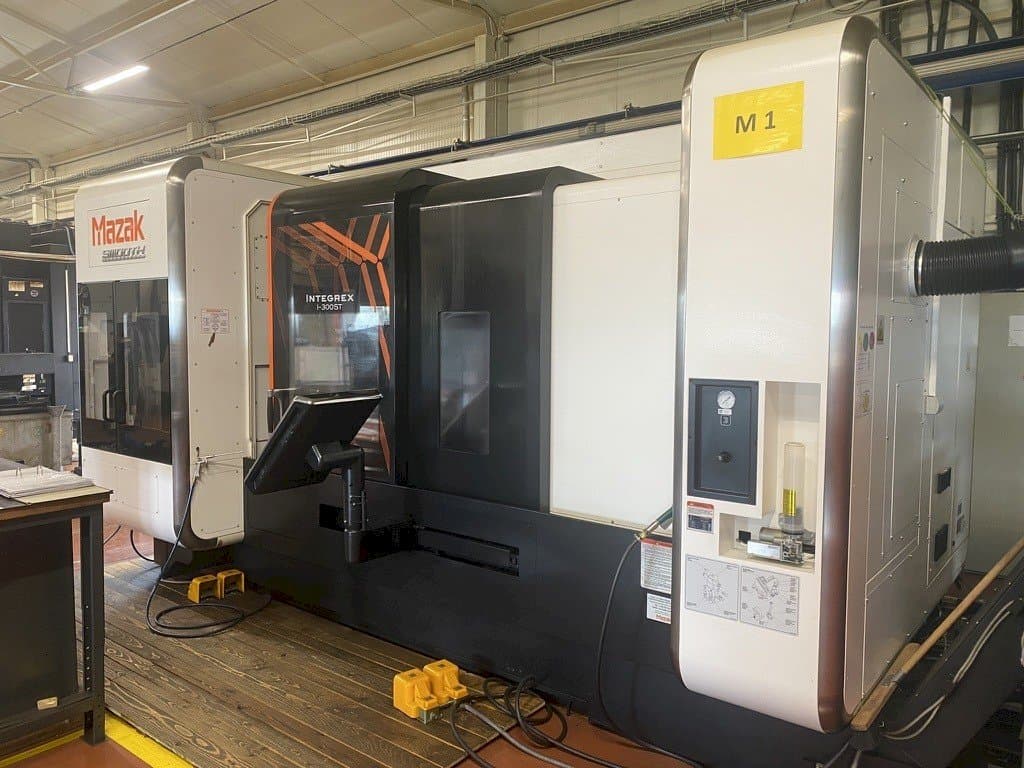

Mazak INTEGREX i-300 ST multitasking turning/milling machine

Show in original language

This Mazak INTEGREX i-300 ST multitasking turning/milling machine was manufactured in the year 2018 in Japan and has 5900 producrion hours, of which 960 are cutting hours. It is equipped with a Mazak Mazatrol SmoothX control unit and has 5 axis. The machine has a spindle speed of 4000 rpm, is in very good condition and well maintained.

Overview

brand: Mazak
year: 2018
MODEL: INTEGREX i-300 ST
production hours: 5900
application type: Turning
Location: Czech Republic
machine type: Turn-Mill Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak INTEGREX i-300 ST

General Data

Measurements width: 4910 mm
Measurements depth: 2800 mm
Measurements height: 2720 mm
Machine weight: 17700 kg

Control Unit

Model: Mazatrol SmoothX
Brand: MAZATROL

Main drive

Number of spindles: 2
Spindle speed range: 4000 1/MIN
Number of axis: 9

Movement

X-AXIS Movement: 615 mm
Y-AXIS Movement: 260 mm
Z-AXIS Movement: 1585 mm

Workpiece

Workpiece weight: 450 kg

Turret

Number of turrets: 1

Tools

Slots in storage: 72
Type of tool holder: Capto C6

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum cutting diameter 658 mm, lower turret 420 mm
- - Maximum cutting length 1519 mm
- - Bar capacity 80 mm
- - Main spindle motor power (cont. /30min) 22/30 kw; sub-spindle 22/26 kw
- - Milling motor power 22 kw, max. Rpm 12000
- - Rapid feedrates: xyz: 50/50/40 m/min
- - Spindle bore :91mm
- - C1/c2 axis indexation 0. 0001º/0. 001º
- - B-axis 0. 0001º
- - Renishaw workpiece probe, mist collector, tool eye
Qualitative Machine Benefits:
- - Excellent condition
- - 5 axis multitasking turning/milling machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
