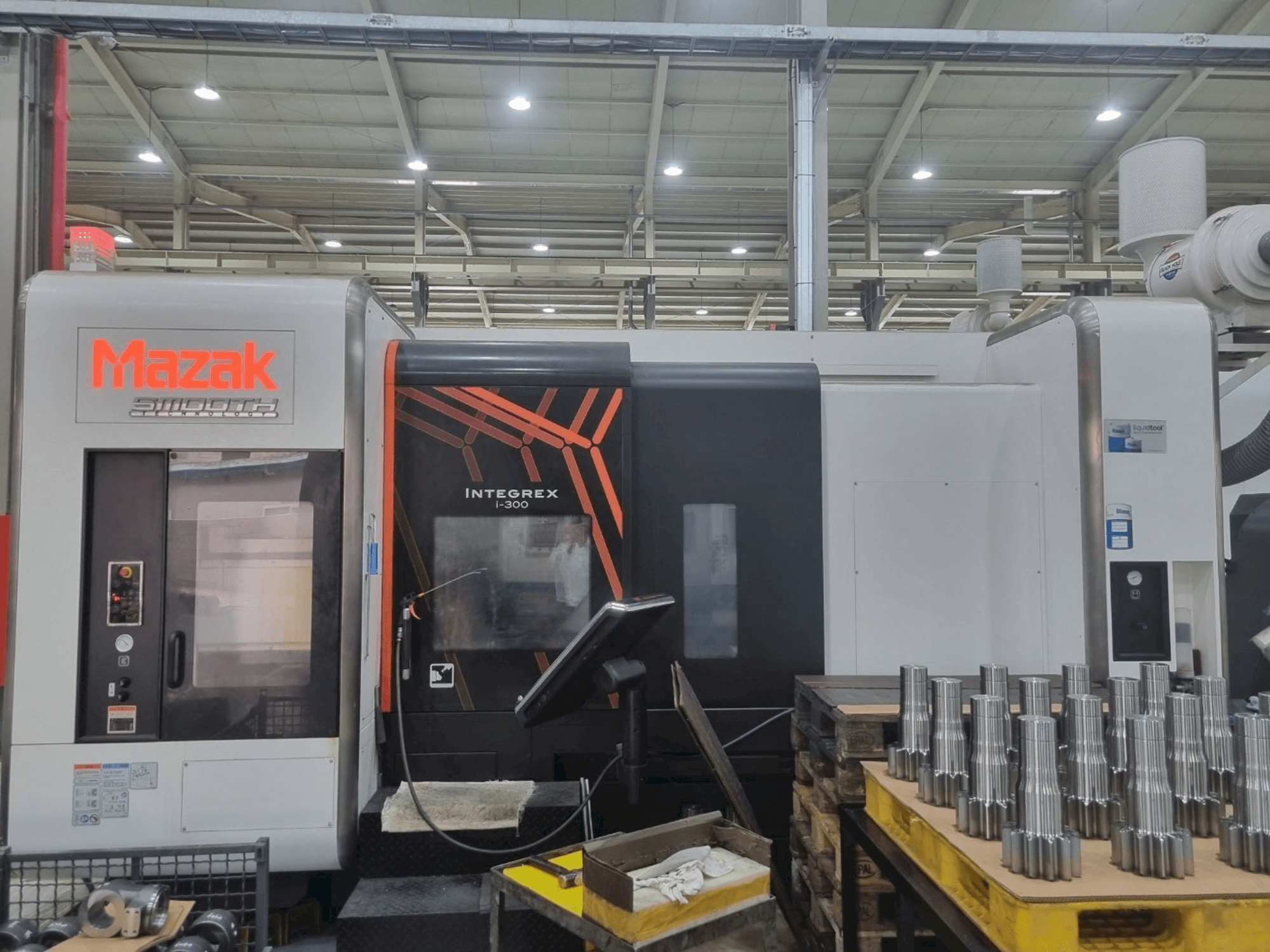

Front view of Mazak   machine

Mazak Integrex i-300

Mazak - Integrex i-300

2019

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Mazak Integrex i-300 Lathe was manufactured in the year 2019 in Japan. It has 5 axis. The machine has a spindle speed of 4000-12000 rpm.

Overview

  • brand: Mazak
  • year: 2019
  • MODEL: Integrex i-300
  • application type: Turning
  • Location: South Korea
  • machine type: Lathe
  • availability: Sold
  • GINDUMAC ID: KR-TUR-MAZ-2019-00001

Technical Information

General Data

  • Machine weight: 15700 kg

Main drive

  • Spindle speed range: 4000-12000 1/MIN
  • Tool taper: HSK-A63
  • Number of axis: 5

Movement

  • X-AXIS Movement: 615 mm
  • X-AXIS Rapid traverse: 50 M/min
  • Y-AXIS Movement: 260 mm
  • Y-AXIS Rapid traverse: 40 M/min
  • Z-AXIS Movement: 1585 mm
  • Z-AXIS Rapid traverse: 50 M/min
  • B-AXIS Movement: -30º~210º MM

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Main chuck size: 254 mm
      • - Max. Swing on carriage:dia 658 mm
      • - Max. Machining dia:dia 658 mm
      • - Max. Machining length:1519 mm
      • - Mazak api, engraving function
      • - Mtconnect adapter, synchronous tapping for turning/milling
      • - Tool radius compensation / 5-axis, engraving function, tool cutting point control, additional m code one set (2 m-codes)
      • - G00 slope constant, mill turning (mazatrol), cylindrical & polar coordinate (eia)
      • - Preparation for multi & flash tool sys, mazak monitoring system b (rmp600), spindle shaper-type operation, install, training & supervision (w/o tryout)
      • - Additional set of manuals (paper), foundation kit (anchor bolts & plates), delete standard chuck and cylinder, 10" thru-hole chuck b-210a0815x
    • Qualitative Machine Benefits:
      • - Rotary-tool sp. 12000 rpm (oil & air) 24kw, tool eye (automatic)high/low chuck pressure system, mazak nc gage multi-tasking pack
      • - Reference sphere+magnet stand,hobbing function (override w/o tool) , coolers for ball screw (y, z axis), oil skiimer rb-200a
      • - Coolant and air blast for chuck jaws, coolant temp control sys, 1. 5mpa thru coolant/flood coolant simul
      • - Prep. Gp1000 mist collect. W/pw&duct/1500u, energy dashboard function
      • - Signal tower, k4 prep. Singl/auto w/shower coolant/1500u,
      • - Chip bucket, chip conveyor, transformer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
