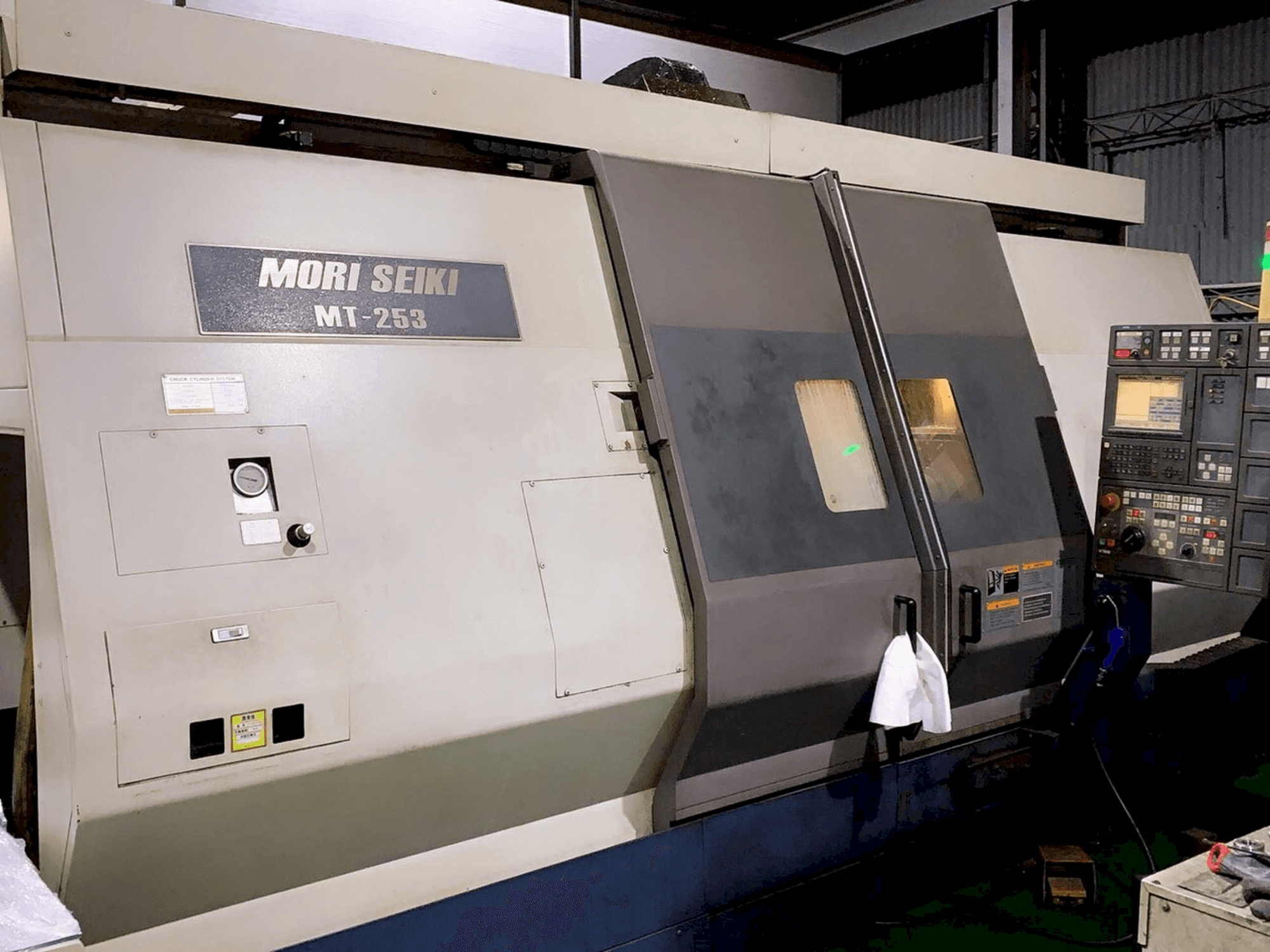

Front view of MORI SEIKI MT 253 S machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MORI SEIKI MT-253S/1000

Photo Gallery

MORI SEIKI - MT-253S/1000TW-TUR-MOR-2000-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
MORI SEIKI MT 253 S Lathe

Show in original language

This MORI SEIKI MT-253S/1000 Lathe from Japan was manufactured in the year 2000. It is operated through a Mori Seiki MSX 501 III control unit. This 6 axis CNC lathe with milling head and counterspindle incorporates a spindle speed up to 3500 rpm. It includes a mechanical tool presetter, a swarf conveyor, a renishaw touch probe, and other accesories. It presents very good conditions.

Overview

brand: MORI SEIKI
year: 2000
MODEL: MT-253S/1000
application type: Turning
Location: Taiwan
machine type: Turn-Mill Centre

Technical Information - MORI SEIKI MT-253S/1000

General Data

Measurements width: 5130 mm
Measurements depth: 3194 mm
Measurements height: 2646 mm
Machine weight: 15000 kg

Control Unit

Model: MSX 501 III

Main drive

Spindle speed range: 3500 1/MIN
Spindle motor power: 22-15 kW

Movement

X-AXIS Movement: 635 mm
Y-AXIS Movement: ± 110 mm
B-AXIS Movement: ±120 °

Additional Information

Additional equipment

Mechanical tool presetter
High-pressure coolant
Swarf conveyor
Rs 232 serial port
Usb port

Machine Benefits

Qualitative Machine Benefits

The machine is in excellent shape and includes all systems for operation
All service manuals and books included

Technical Machine Benefits

6-axis cnc lathe with milling head and counterspindle
Max rotating diameter: 910 mm
Max turning length: 1020 mm
Bar capacity: 75-50 mm
Counter spindle: 3500 rpm; 15-11 kw; 210 mm; asa 6"
Head: continuous; capto c6; 12000 rpm; 11-7,5 kw
Rapid feeds: x-y-z: 24 - 16 – 24
Tool magazine: 60 pos

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
