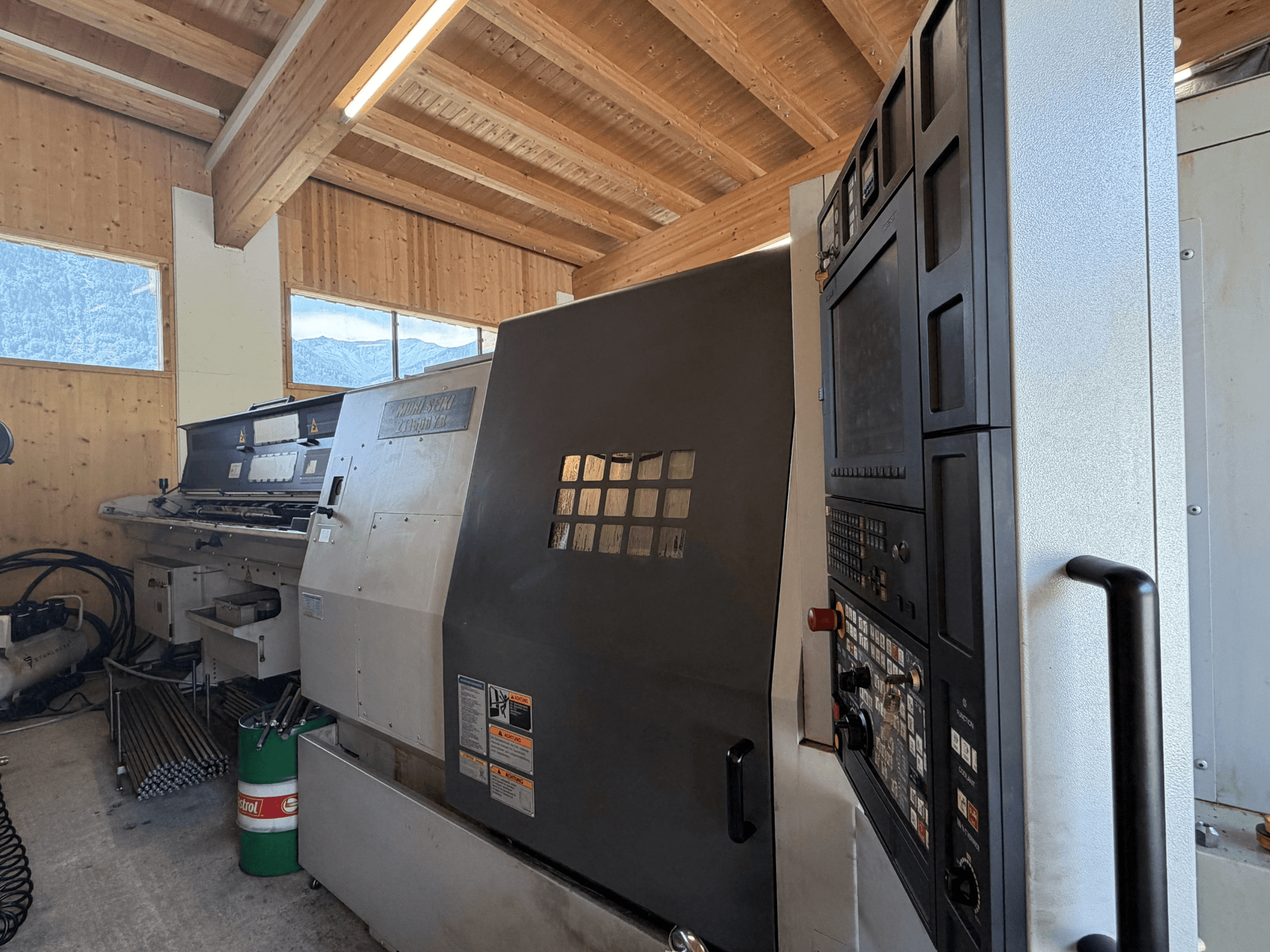

This 5-axis MORI SEIKI ZT1500YB was manufactured in 2005. It features a maximum turning diameter of 190 mm and a maximum turning length of 235 mm. The machine includes a robust turret with 12 stations and a rapid traverse speed of up to 24,000 mm/min. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI ZT1500YB horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: MORI SEIKI
- year: 2005
- MODEL: ZT1500YB
- production hours: 11026
- application type: Turning
- Location: Austria
- machine type: Turn-Mill Centre
- Available from: 17/08/2026
Technical Information - MORI SEIKI ZT1500YB
Dimensions
- Machine Height: 2058 mm
- Machine Length: 3702 mm
- Machine Weight: 6600 kg
- Machine Width: 2066 mm
Movement
- Number of Axes: 5
- X-axis Travel: 140 mm
- Y-axis Travel: 50 mm
- Z-axis Travel: 700 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Spindle Power: 18.5 kW
- Spindle Speed: 5000 RPM
- Tool Stations: 12
Additional Information
- Head 1 Operating Time: 36,316 h
- Head 1 Machining Time: 18,301 h
- Head 2 Operating Time: 36,324 h
- Head 2 Machining Time: 11,026 h
- Turret Type: 12 stations [16 stations optional]
- Number of Tools in Turret: 12 [16]
- Shank Height for Square Tool: 20 mm
- Shank Diameter for Boring Bar: 25 mm
- Driven Tool Spindle 1 & 2 Speed: 6,000 rpm
- Driven Tool Spindle 1 & 2 Capacity: Drill max. 13 mm diameter, Thread max. M12
- Rapid Traverse Speed: X1, X2: 18,000 mm/min; Z1, Z2: 24,000 mm/min; Y: 6,000 mm/min; B: 24,000 mm/min
- Jog Feedrate: X, Z, B: 0-1260 mm/min
- Spindle Motor 1 & 2 (30 min / continuous): 22 / 18.5 kW
- Driven Tool Drive Motor Spindle 1 & 2 (5 min / 15 min / continuous): 5.5 / 3.7 / 2.2 kW
- Axis Motors: X1: 3 kW; X2: 2.5 kW; Z2: 3 kW; Y: 1.6 kW; B: 3 kW
- Hydraulic Pump Motor: 0.75 kW
- Lubricant Pump Motor: 0.02 kW
- Coolant Pump Motor: 0.6 kW x 2, 1.2 kW x 1
- Cooling Oil Pump Motor: Compressor: 0.65 kW; Lubricating pump: 0.4 kW; Blower: 0.045 kW
- Required Power Supply: 63.37 kVA
- Compressed Air Supply: 0.5 MPa, 100 L/min <ANR>
- Max. Workpiece Swing Diameter: 310 mm <collision with turret cover>
- Max. Distance Between Spindle Noses: 1000 mm
- Max. Turning Diameter: 190 mm
- Max. Turning Length: 235 mm
- Standard Turning Diameter: 170 mm
- Max. Bar Capacity: 65 mm
- X-Axis Travel (Nr. 1 & Nr. 2): 140 mm
- Z-Axis Travel: Z1: 700 mm, Z2: 690 mm
- Y-Axis Travel: ±50 mm
- Spindle 2 Travel (B-Axis): 775 mm
- Number of Spindle Speed Ranges: 1 step
- Spindle Nose (Spindle 1 & 2): JIS A2-6
- Spindle Speed Range (Spindle 1 & 2): 50-5000 rpm
- Spindle Bore (Spindle 1 & 2): 73 mm
- Min. Spindle Indexing Angle: 0.001° <smallest input>
- Spindle Bearing Inner Diameter: 120 mm
- Chuck (Spindle 1 & 2): 8" power chuck & hollow clamping chuck
- Hydraulic Oil Tank Capacity: 10 L
- Lubricant Tank Capacity: 6 L
- Coolant Tank Capacity: 285 L
- Oil Cooler Tank Capacity: 12 L
- Floor Space (without chip conveyor): 3702 x 2066 mm
- Voltage: AC 200 V
- Phase: 3 Phase
- Frequency: 50 Hz
- Full Load Current: 182 A
- Spindle Motor Current Rating: 122 A
- Interrupting Capacity: 5 kA
- Rated Power: 63 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
