NCT MM-850SV

Photo Gallery

NCT - MM-850SVHU-MIL-NCT-2021-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used NCT MM-850SV For Sale | gindumac.com

Show in original language

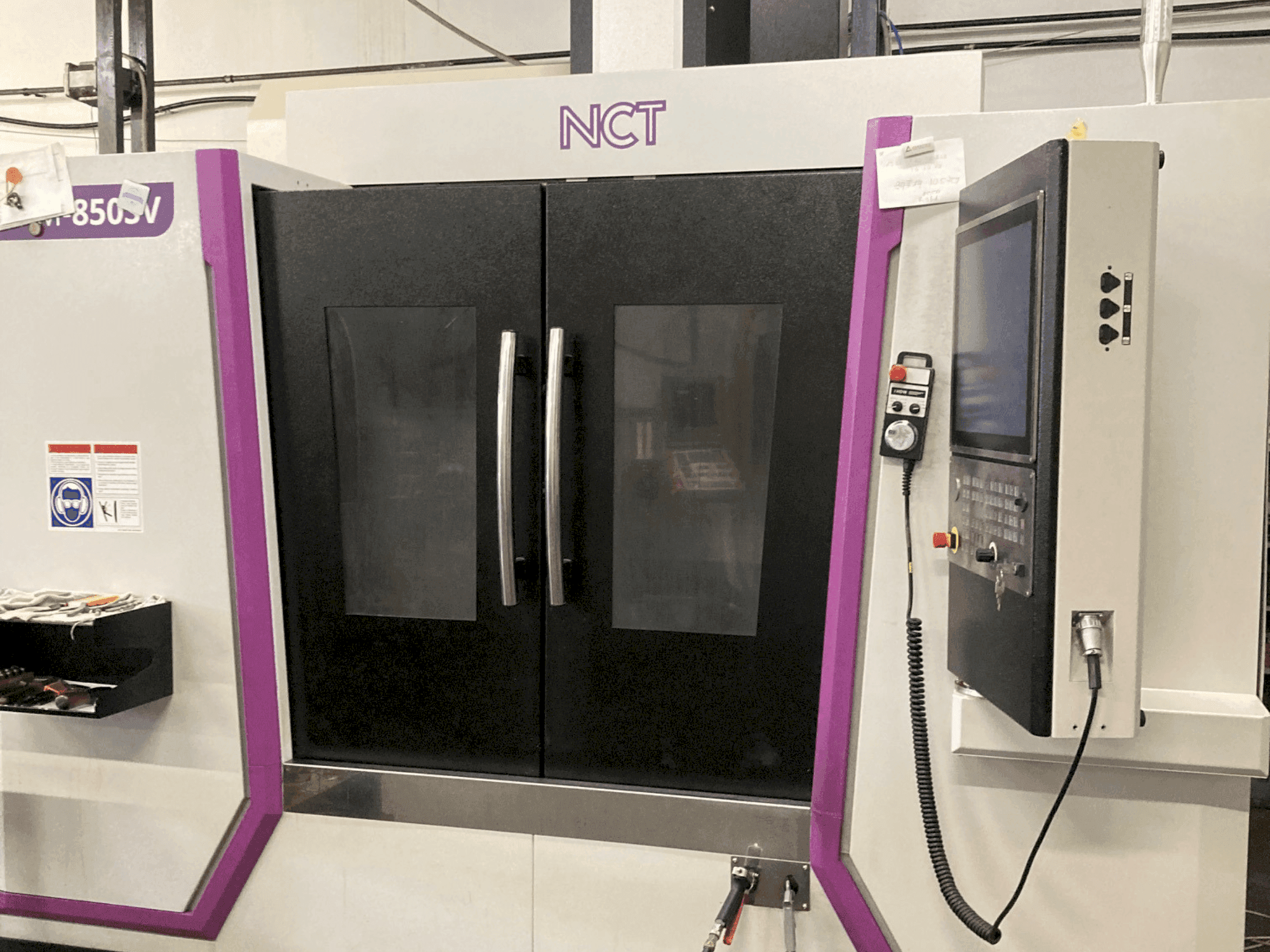

This 3-axis NCT MM-850SV vertical machining centre was manufactured in 2021. It features a table size of 950 × 500 mm, maximum table load of 600 kg, and X/Y/Z travels of 850/510/510 mm. The spindle reaches up to 15,000 rpm, with an optional 24,000 rpm, and utilizes a BT40 taper. The arm-type ATC holds 24 tools. Consider the opportunity to buy this NCT MM-850SV vertical machining centre. Contact us for more information about this machine.

Overview

brand: NCT
year: 2021
MODEL: MM-850SV
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre

Technical Information - NCT MM-850SV

Dimensions

Machine Depth: 2600 mm
Machine Height: 2685 mm
Machine Weight: 4300 kg

Movement

Number of Axes: 3
X-axis Travel: 850 mm
Y-axis Travel: 510 mm
Z-axis Travel: 510 mm

Technical Specification

Max. Tool Weight: 6 kg
Spindle Speed: 15000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Table size: 950 × 500 mm
Distance spindle nose – table surface: 140 – 650 mm
Distance spindle axis – column: 556 mm
Positioning accuracy: < 0. 005 mm
Repeatability: < 0. 003 mm
Max. Cutting feed: 36 m/min

Extra Information

Main Drive Optional Spindle Speed: 24000 rpm Taper Cleaning: High-Pressure Air Blast Drive Type: Direct Drive Spindle Cooling: Oil Chiller Controller Max. Power Output: 29 kW Max. Torque: 106 Nm Cooling: Liquid Cooling Tools Tool Type: Arm-type ATC

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
