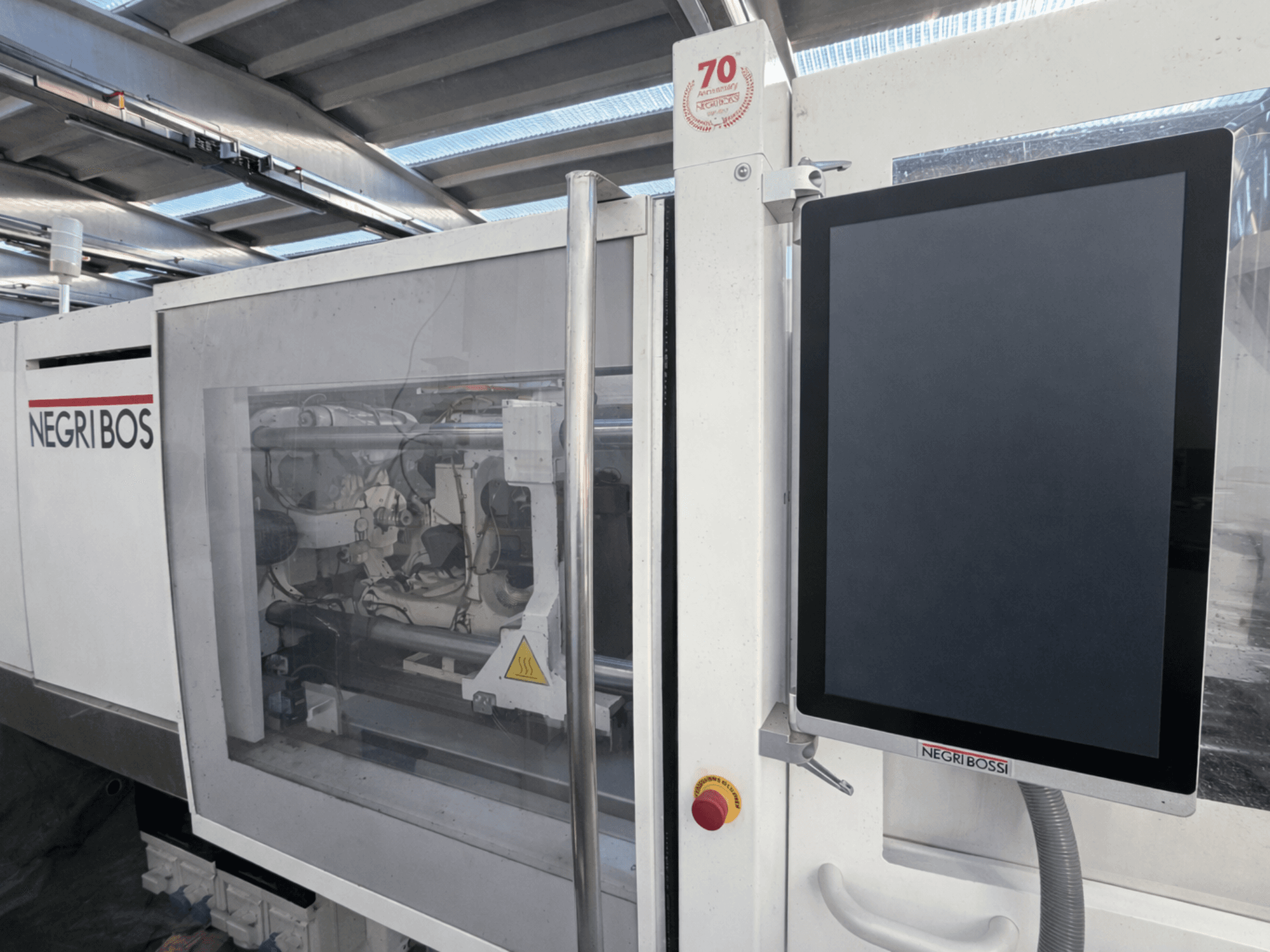

Electrical injection moulding machine manufactured in 2017. This Negri Bossi ELE 80 features a clamping force of 800 kN and a maximum opening stroke of 515 mm. The machine offers a tie bar distance of 420 × 420 mm and a platen size of 595 × 595 mm. If you are looking to get high-quality injection moulding capabilities, consider the Negri Bossi ELE 80 machine we have for sale. Contact us for further details.
Overview
- brand: Negri Bossi
- year: 2017
- MODEL: ELE 80
- application type: Injection Moulding
- Location: Italy
- machine type: Electrical Injection Moulding Machine
Technical Information - Negri Bossi ELE 80
Technical Specification
- Clamping Force: 800 kN
Additional Information
Tie bar distance (H × V): 420 × 420 mm
Platen size (H × V): 595 × 595 mm
Mould height (min–max): 180–515 mm
Max opening stroke: 515 mm
Max daylight: 515 mm + mould height (depending on configuration)
Injection unit options:
Screw diameters: 18 / 25 / 30 / 35 mm
Shot volume: 22–116 cm³ (depending on screw)
Max injection pressure: up to 3000 bar (depending on screw diameter)
Max injection speed: 300 mm/s
Machine category: Fully electric (no hydraulics for main movements)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
