Netstal HP-3500/3550-R

Netstal - HP-3500/3550-RDE-INJ-NET-2000-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Netstal HP-3500/3550-R Injection Moulding Machine

Show in original language

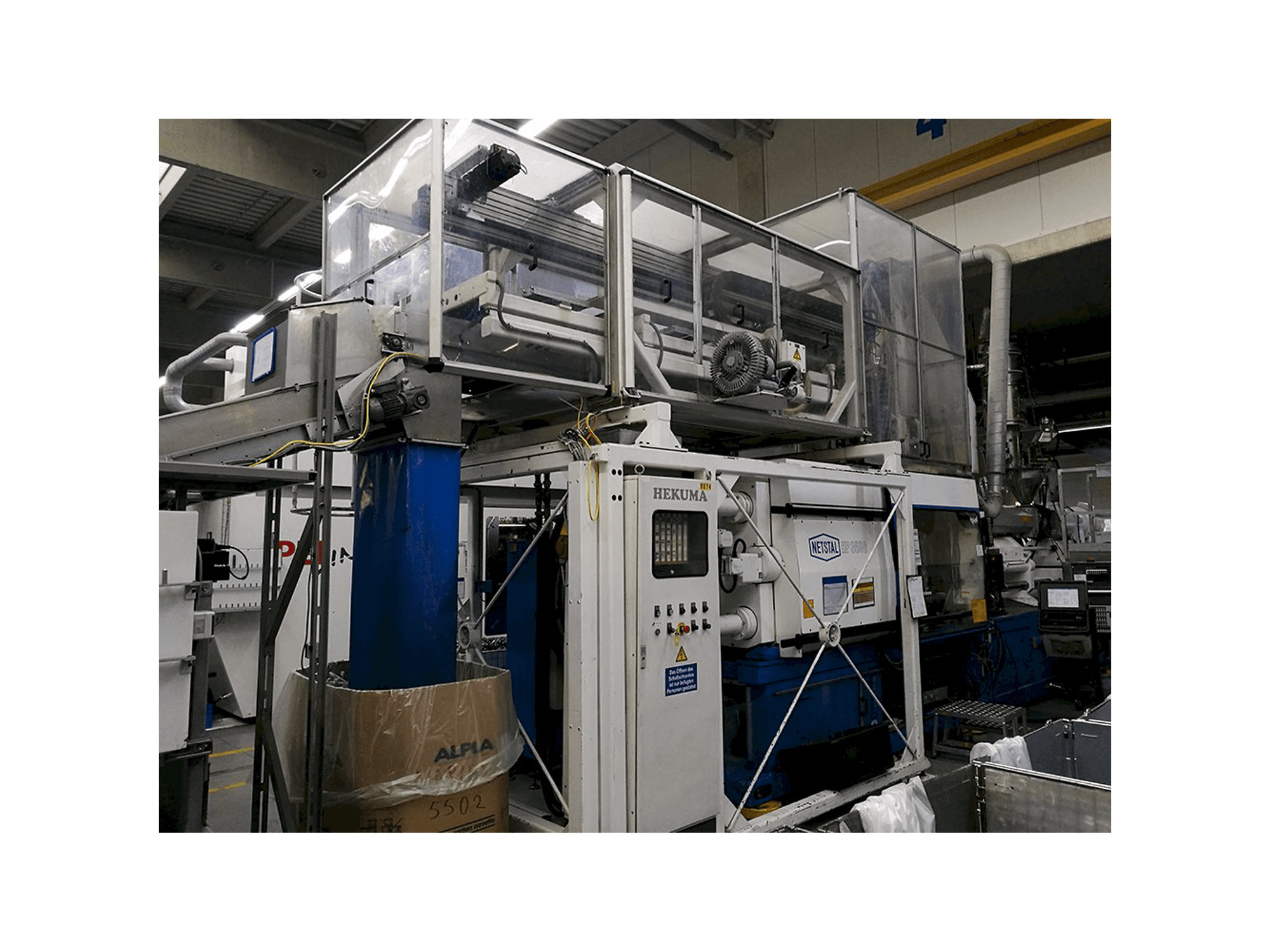

This Netstal HP-3500/3550-R Injection Moulding Machine was manufactured in 2000 in Switzerland and counts with 133153 working hours since then. Equipped with a Netstal MPS Graphtrack Control unit, this reliable and large format machine counts with an injection force of 1115 kN. A Hekuma Robot is included as additional equipment.

Overview

brand: Netstal
year: 2000
MODEL: HP-3500/3550-R
production hours: 133153
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: NETSTAL

Technical Information - Netstal HP-3500/3550-R

General Data

Measurements width: 10130 mm
Measurements depth: 2390 mm
Measurements height: 2510 mm
Machine weight: 2510 kg

Control Unit

Model: MPS Graphtrack
CNC main language: German
CNC language customizable: Yes
Brand: NETSTAL

Injection Unit

Screw diameter: 110 mm
Shot weight: 1900 g/PS
Stroke volume: 3041 cm³
Injection pressure: 1115 kN BAR
Screw speed: 230 rpm
Heating capacity: 95.4 kW

Clamping unit

Clamping force: 3500 kN
Opening stroke: 0-625 mm
Max open daylight: 1475 mm
Mould height min: 500 mm
Mould height max: 850 mm
Size of mold platens: 1160x1030 mm
Ejector stroke: 320 mm
Ejector force for / back: 118.6 kN

Media

Main electronic connection: 400 V
Power consumption: 173 kW / 249 A

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
