➤ Used Otto Systems eKW 250/5500 PET | Injection Moulding

Show in original language

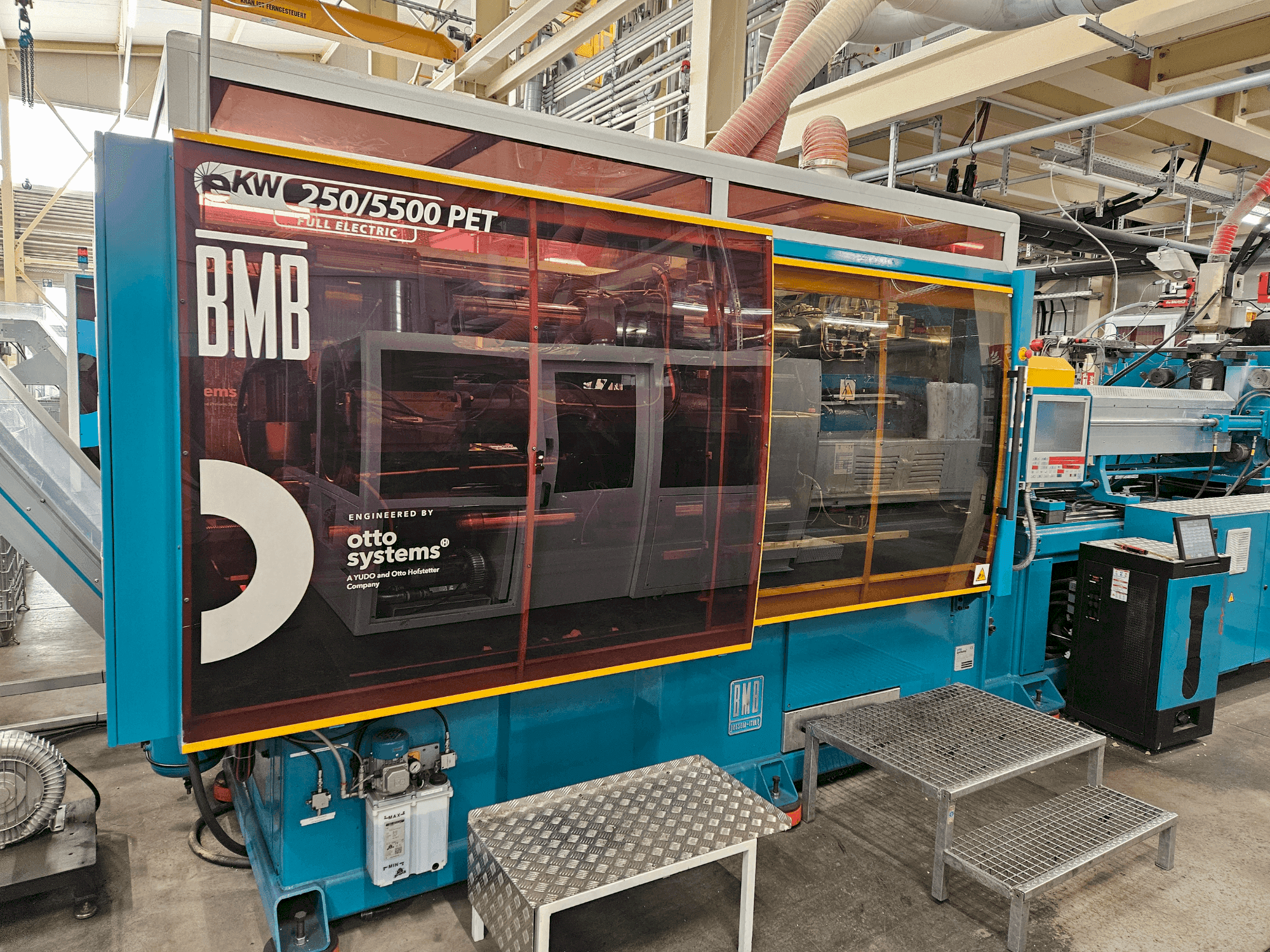

This Otto Systems eKW 250/5500 PET was manufactured in 2018. It features a clamping force of 2500 kN, a screw diameter of 100 mm, and a maximum injection speed of 250 mm/s. The machine has a dry cycle time of 1.6 seconds and a total weight of 22000 kg. If you are looking to get high-quality injection molding capabilities, consider the Otto Systems eKW 250/5500 PET machine we have for sale. Contact us for more information.

Overview

brand: Otto Systems
year: 2018
MODEL: eKW 250/5500 PET
production hours: 40365
application type: Injection Moulding
Location: Germany
machine type: Electrical Injection Moulding Machine

Technical Information - Otto Systems eKW 250/5500 PET

Dimensions

Machine Weight: 22000 kg

Technical Specification

Clamping Force: 2500 kN
Screw Diameter: 100 mm

Additional Information

Additional equipment

Injection unit: 13000 kg
Clamping unit: 9000 kg
only hot runner is includeed

Machine Benefits

Technical Machine Benefits

Ejection force detailed: 200 kn (first 30 mm) + 60 kn (remaining 170 mm)
Platen dimensions (h/v): 910 x 910 mm
Min. Mould thickness: 350 mm // max. Mould thickness: 850 mm
Ejection force (first 30 mm): 200 kn
Euromap classification: 2500h-5500
Mould opening force: 250 kn
Tie-bar diameter: 100 mm
Length/diameter ratio (l/d): 26
Maximum screw rotation speed: 100 min⁻¹
Injectable volume: 3534 cm³

Extra Information

Electrical system: Motor pump power: 7.5 kW Barrel heating capacity: 68.5 kW Barrel heating zones: 8+1+1 Dry cycle time: 1.6 s Oil tank capacity: 60 l Max. injection carriage stroke: 450 mm Injection Unit Shot weight PET: 3830 g Injection rate: 1965 cm³/s Injection speed: 250 mm/s Specific injection pressure: 1575 kg/cm³ Plasticizing rate: 107 g/s Maximum torque: 8000 Nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
