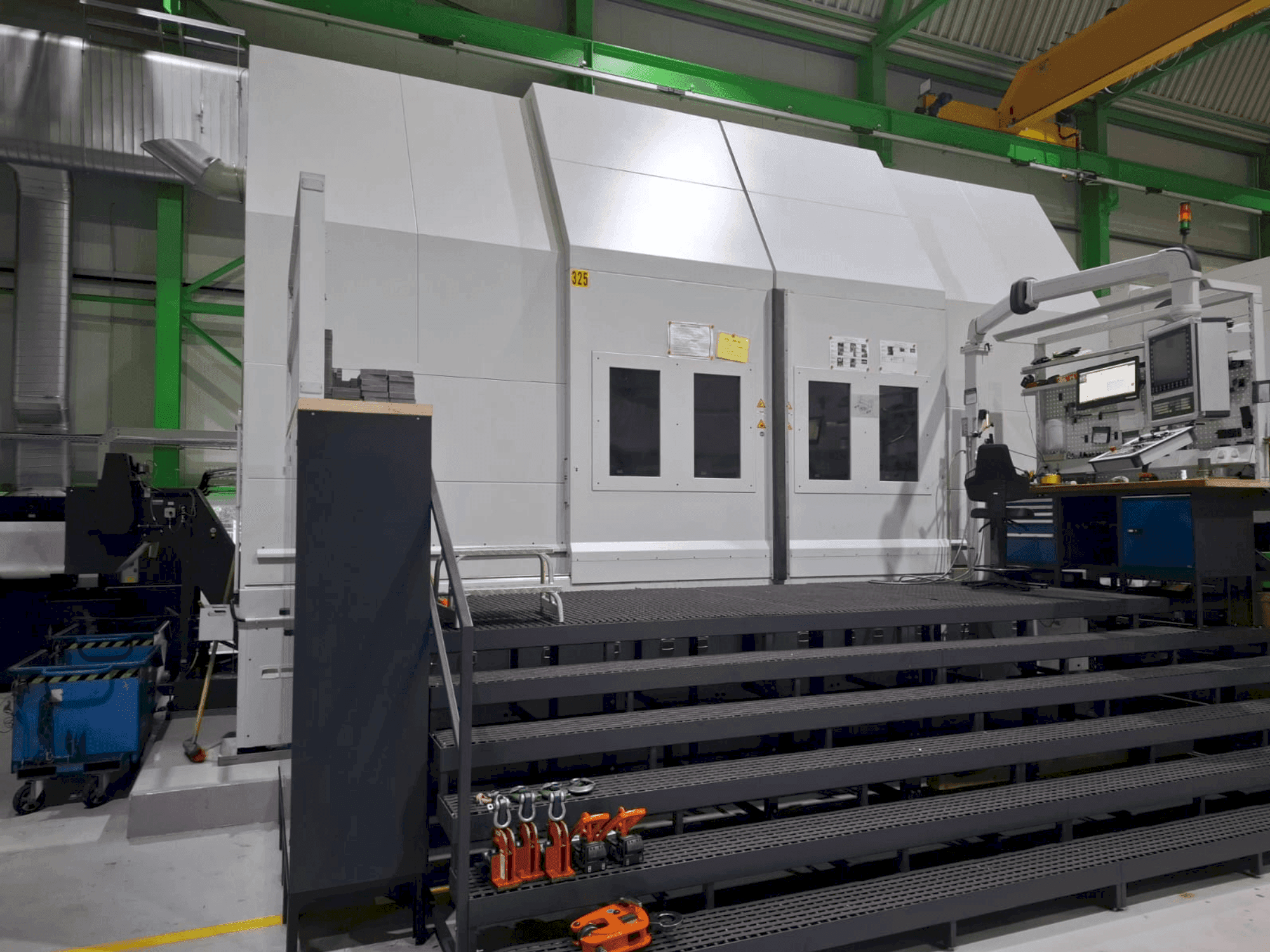

This 5-axis Pittler PV2500 was manufactured in 2021, featuring a CNC vertical lathe with a maximum swing diameter of 3,000 mm and a turning diameter of 2,800 mm. It includes a double tool holder with Capto C8 interface, high-pressure coolant capabilities, and a robust spindle supporting up to 25,000 kg load. Ideal for complex, large-scale machining tasks. If you are looking to get high-quality turning capabilities consider the Pittler PV2500 machine we have for sale. Contact us for more information.
Overview
- brand: Pittler
- year: 2021
- MODEL: PV2500
- application type: Turning
- Location: Germany
- machine type: Vertical Turning Machine
- control unit brand: SIEMENS
Technical Information - Pittler PV2500
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 840 D sl
Additional Information
Additional equipment
- Measuring System: Linear in both axes
Machine Benefits
Technical Machine Benefits
- Operating voltage: 400 v, 50 hz with a resilient neutral conductor / control voltage: 24 v, dc / lighting voltage: 230 v, 50 hz / theoretical peak power: 245 kw / sound level: ≤80 db(a) / protection class: ip 54
- Microprocessor cnc path control: siemens sinumerik 840 d sl / nc memory: 10 mb / operating interface: hmi operate / remote maintenance: teamviewer installed / network interface: dnc-option with configurable ip address / air purifier: uas smog hog, type sh-m20 225/ttreo 15 kw / air capacity: 4000 m³/h / measuring probe accuracy: ≤5 μm
- Maximum torque: 53000 nm / drive power: 2×103 kw = 206 kw
- Horizontal (x-axis) travel: 2×2700 mm / vertical (y-axis) travel: 2×1000 mm / rapid traverse speed (x-axis): 40 m/min / rapid traverse speed (z-axis): 24 m/min / feed force (both axes): 22 kn
- Max. Swing diameter: 3000 mm / largest turning diameter: 2800 mm / spindle load capacity: 25000 kg
- Spindle diameter: 360 mm / cylindrical spindle flange diameter: 1100 mm
- Tool carrier: double tool holder with capto c8 interface / coolant pressure (through driven and turning tool): limited to 70 bar / high-pressure coolant pump: 70 bar / coolant supply: 6 bar, 80 l/min / paper band filter capacity: 400 l/min
- Left magazine: 25 positions, capto c8 / right magazine: 41 positions, capto c8 / maximum tool diameter: 150 mm / maximum tool weight: 20 kg / maximum tool length: 400 mm / driven tools: up to 6000 rpm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
