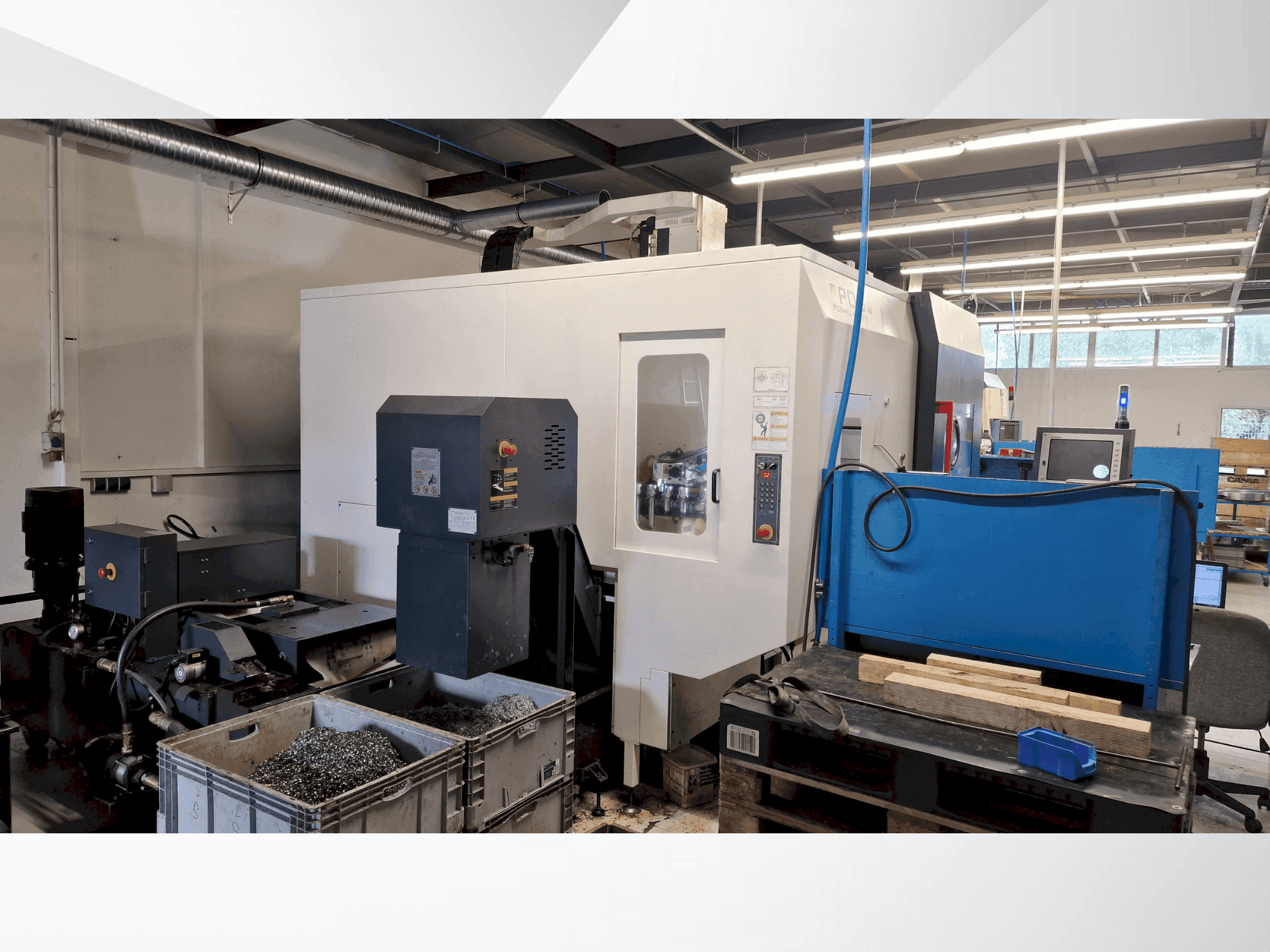

POSmill - H 500 UDE-MIL-POS-2018-00004

Additional equipment

• Optional chucks and approx. 260 HSK63 holders with rack

Machine Benefits

Technical Machine Benefits

• Workshop 60-space / internal cooling / internal coolant supply plus air cooling

Extra Information

Milling spindle S = 18,000 rpm, HSK-A 63 Heidenhain - Linear measuring system X, Y, Z/ Air purge for all linear measuring systems/ Active air-to-air control cabinet cooler/ Active cooling for the 4th and 5th axes, controlled Network connection + USB connection/ Spindle cooler, controlled/ Heidenhain iTNC 530 control panel, right-hand side/ Heidenhain rotation measuring system/ POS kinematic module including reference ball/ POS contour lock/ Automatically controlled crane loading hatch External hinged chip conveyor/ Coolant pump on the head via M functions Pump for chip flushing device/ Chip flushing device/ Water gun/ Operating status indicator Air at the spindle/ Electromechanical oil/coolant separator/ Automatic coolant level monitoring/ 3-way media connection in the Table center/ Hydraulic power unit including M-function control Mobile electronic handwheel/ Variants included in the special price/ Through-spindle air/ 60-station HSK-A 63 tool changer/ Internal coolant supply 20 bar with belt filter unit/ Kessler table diameter 500 mm/ Preparation for workpiece measurement/ Infrared workpiece measurement - 3D probe Tool measurement via BLUM laser/ Rotating viewing window/ POS DCM collision module
