POSmill - H 500 UDE-MIL-POS-2020-00004

160,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

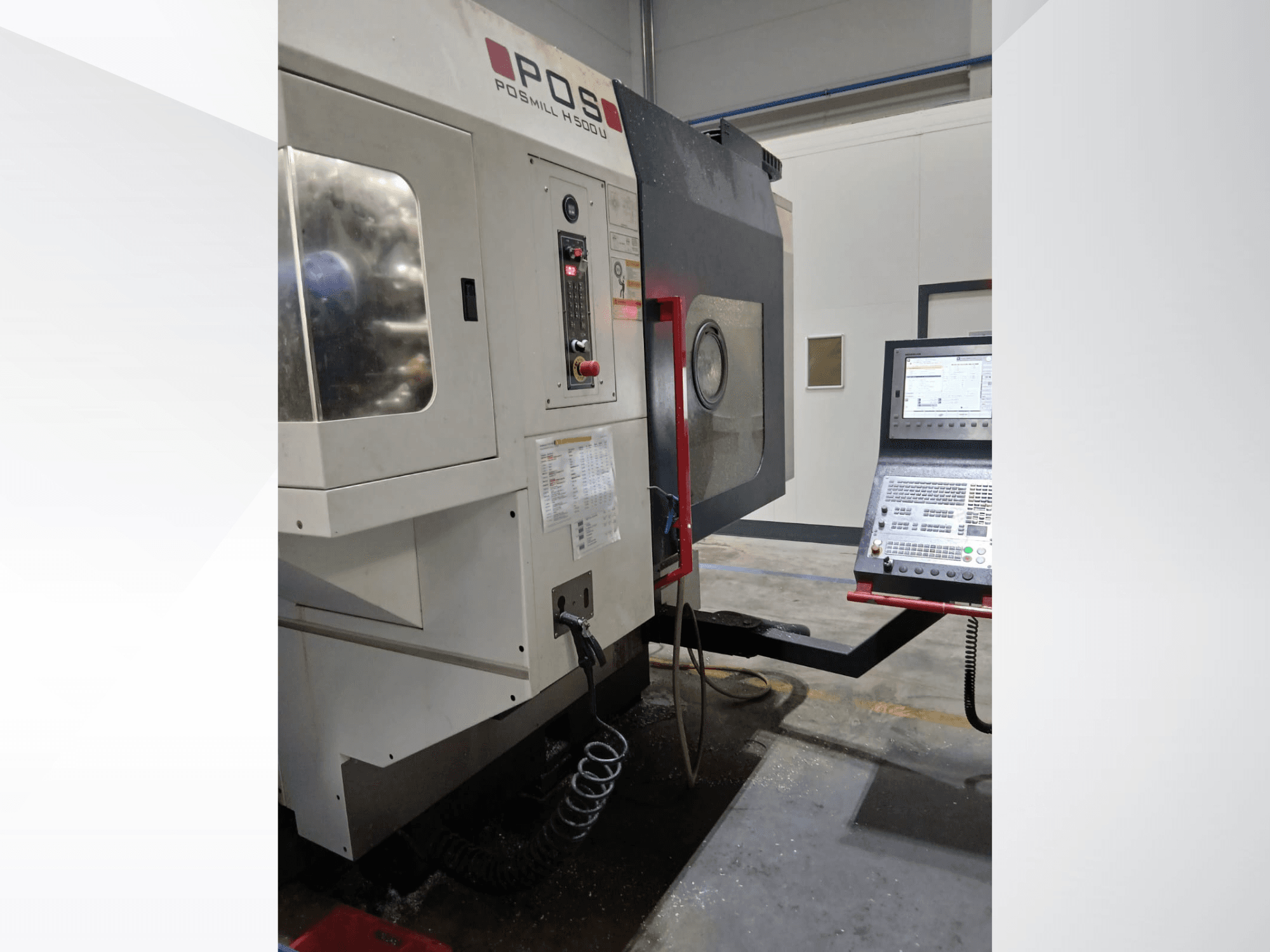

This 5-axis POSmill H 500 U was manufactured in 2020. It features a Heidenhain TNC 640 control system and includes additional equipment such as a chip conveyor and an external cooling unit. With a nominal power of 60 kVA and extensive operational hours, this machine is well-equipped for high-quality machining tasks. If you are looking to get high-quality machining capabilities, consider the POSmill H 500 U vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: POSmill
  • year: 2020
  • MODEL: H 500 U
  • production hours: 11395
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - POSmill H 500 U

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: TNC 640

Dimensions

  • Machine Weight: 13000 kg

Movement

  • Number of Axes: 5
  • X-axis Travel: 650 mm

Technical Specification

  • Spindle Speed: 12000 RPM

Additional Information

- Control Type: Heidenhain TNC 640 (NC Software: 340590 09 SP2)

- Nominal Power: 60 kVA

- Full Load Current: 80 A

- Max. Load Current: 115 A

- Short Circuit Resistance: 25 kA

- Voltage: 400 V, 50 Hz (3-Phase)

- Control On Hours: 24,470:15:33

- Machine On Hours: 22,600:24:22

- Program Run Hours: 14,169:52:59

- Hydraulic Hours: 22,633:39:41

- Axis Hours: 11,234:28:24

- Spindle S1 Hours: 11,395:56:49

- Additional Equipment: Chip conveyor, external cooling/chiller unit, handheld pendant control unit

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
