SCM - Morbidelli M200FDE-CNC-SCM-2020-00001

65,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

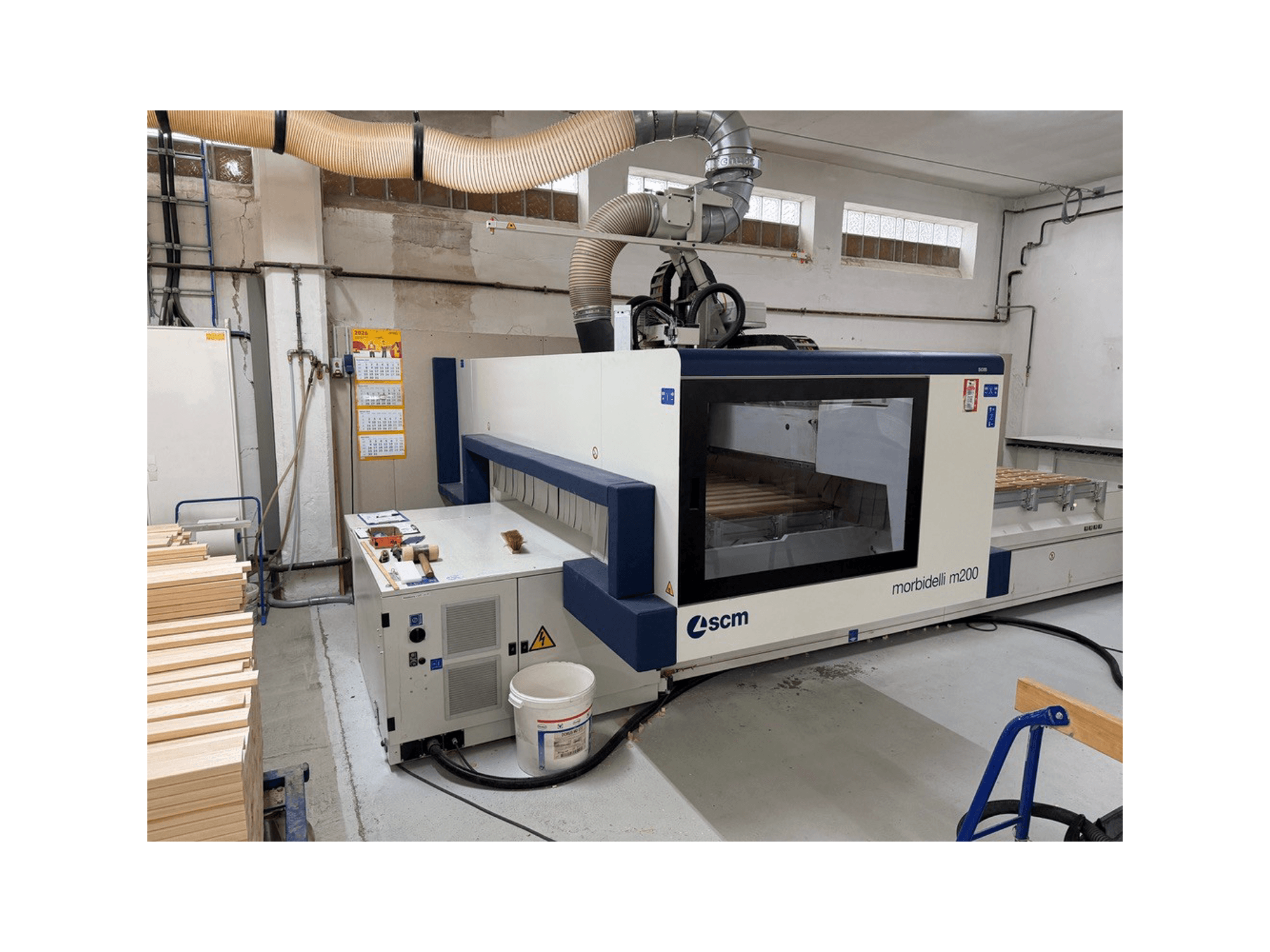

This 5-axis SCM Morbidelli M200F was manufactured in 2020. It features an impressive X-axis working range of 3710 mm and a Y-axis working range of 1620 mm. The machine is equipped with a high-performance 5-axis Prisma 5 electric spindle, capable of speeds up to 24,000 rpm. If you are looking to get high-quality CNC processing capabilities, consider the SCM Morbidelli M200F machine we have for sale. Contact us for further details.

Overview

  • brand: SCM
  • year: 2020
  • MODEL: Morbidelli M200F
  • application type: CNC Wood Machining
  • Location: Germany
  • machine type: CNC Processing Center

Technical Information - SCM Morbidelli M200F

Movement

  • Number of Axes: 5
  • X-axis Travel: 3710 mm
  • Y-axis Travel: 1620 mm

Technical Specification

  • Spindle Speed: 24000 RPM

Additional Information

  • Working width: 1585 mm

  • Workpiece length for pendulum machining: 1700 + 1700 mm

  • X-Y axes travel speed (PRO-SPACE): 56 m/min

  • X-Y axes travel speed (PRO-SPEED): 78 m/min

  • Remote control with 7" touchscreen display

  • TRB14 tool changer with pneumatic remote adjustment

    • Max. 14 tools

    • Max. tool diameter: 300 mm (3-axis), 350 mm (5-axis)

  • FAST14 tool changer

    • Max. 14 tools

    • Tool diameter: 180 mm

    • Axis spacing: 7 positions with 110 mm spacing; 7 positions with 130 mm spacing

  • Blow-off nozzle system on the electric spindle

  • 5-axis Prisma 5 electric spindle, “KS” version

    • HSK 63F

    • Rotational speed: 1,800–24,000 rpm

    • Power (S1/S6): 11/12 kW at 15,000 rpm

    • Clockwise and counterclockwise rotation programmable via NS

    • Coolant circulation system

  • High-performance vacuum pump: 300/360 m³/h, 50/60 Hz

  • Work table divided into 8 vacuum zones

  • Laser system for positioning the suction cups

  • eye-M PRO console with integrated PC

  • Maestro CNC software

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
