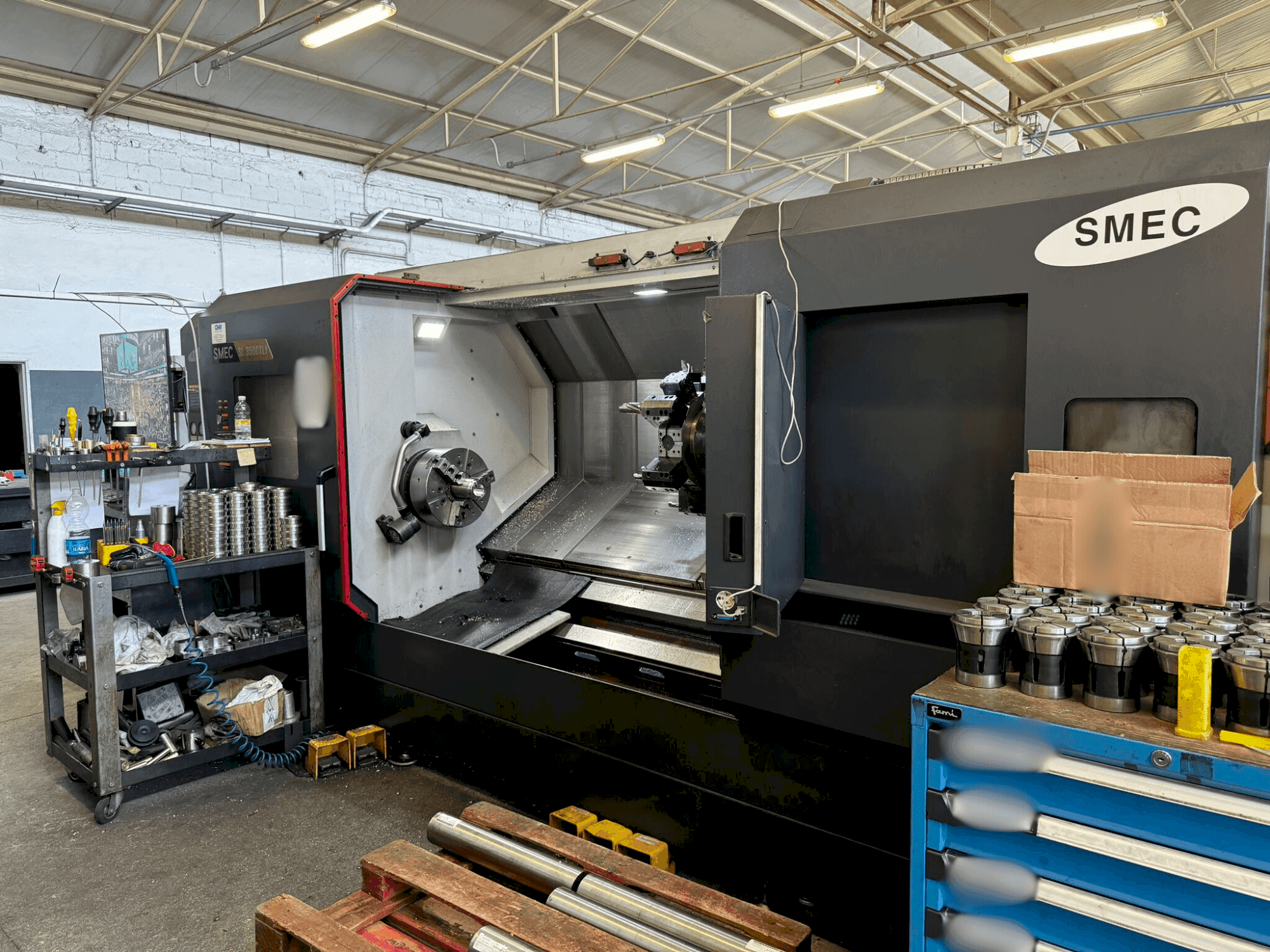

This 4-axis SMEC SL 3500XLY lathe was manufactured in 2018. It features a maximum turning diameter of 850mm, a length of 2125mm, and a spindle speed of 3000rpm. Equipped with a C-axis and a 12-position turret, it offers versatility for complex machining. Dimensions are 3620 x 1897 x 2230mm, weighing 10500kg. A robust choice for precision tasks, the SMEC SL 3500XLY machine we have for sale is ideal for expanding capabilities. Contact us for further details.
Overview
- brand: SMEC
- year: 2018
- MODEL: SL 3500XLY
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
- availability: Sold
Technical Information - SMEC SL 3500XLY
General Data
- Measurements width: 6000 mm + 1100 mm extra of the chip conveyor
- Measurements depth: 2000 mm
- Measurements height: 2300 mm
- Machine weight: 10500 KG
Main drive
- Spindle speed range: 3000 1/MIN
- Spindle motor power: 26 kw
Movement
- X-AXIS Movement: 280 mm
- Y-AXIS Movement: 130 mm (+-65 mm)
- Z-AXIS Movement: 2200 mm
Workpiece
- Workpiece drm over bed: 850 mm
- Workpiece drm over support: 430 mm
Turret
- Max tool length: 2125 mm
- Number of tool slots: 12
Additional Information
- Technical Machine Benefits:
- - Motorized tool speed: 4500mm
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
