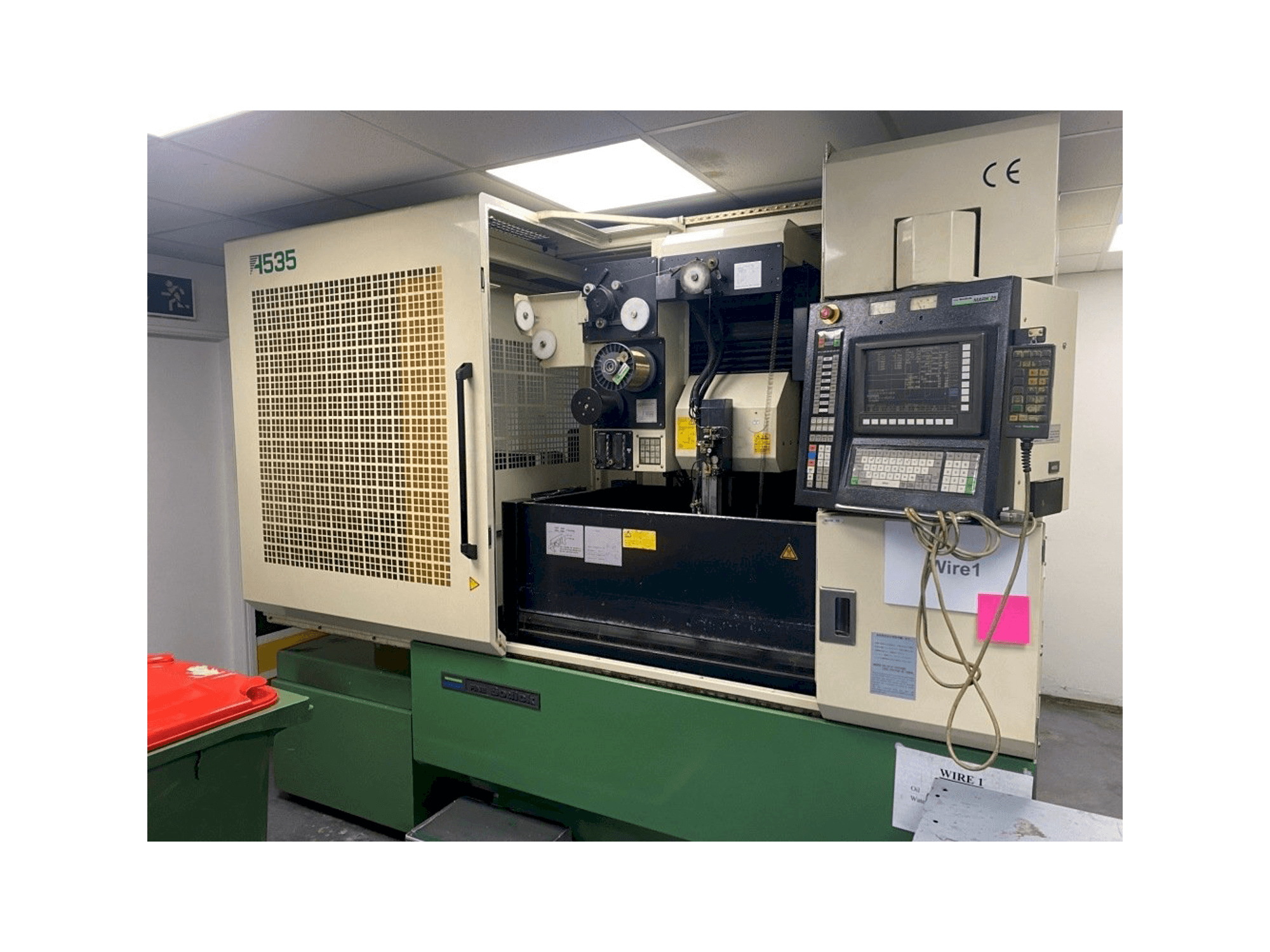

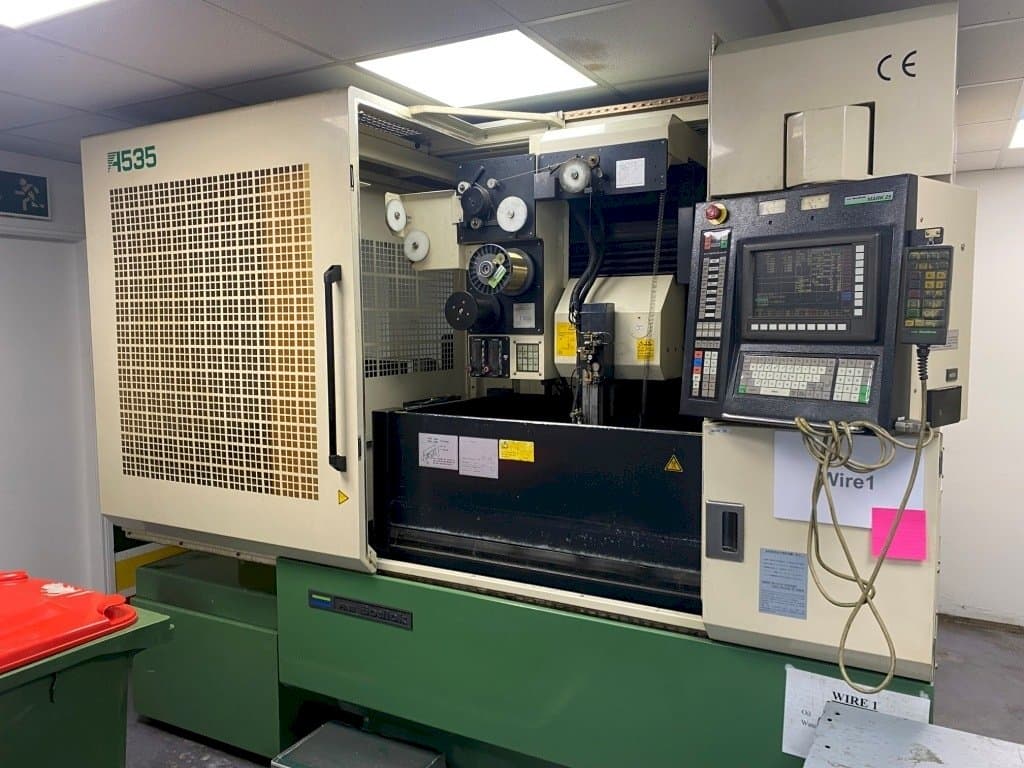

- Sodick A535 Wire Erosion machine
This Sodick A535 Wire Erosion machine was manufactured in the year 2002. It shows 14879 production hours. It is equipped with a control unit of the same brand. This 3 axis machine works with a wire diameter between 0.1 - 0.3 mm. Includes a dielectric tank and a chiller. Well maintained machine.
Overview
- brand: Sodick
- year: 2002
- MODEL: A535
- production hours: 14879
- application type: EDM
- Location: Ireland
- machine type: Wire EDM Machine
- control unit brand: SODICK
Technical Information - Sodick A535
Control Unit
- Control Brand: SODICK
- Control Model: Mark 25
Movement
- Number of Axes: 3
- X-axis Travel: 555 mm
- Y-axis Travel: 355 mm
- Z-axis Travel: 300 mm
Technical Specification
- Max. Wire Diameter: 0.3 mm
- Min. Wire Diameter: 0.1 mm
Additional Information
Additional equipment
- Dielectric Tank
- Chiller
Machine Benefits
Qualitative Machine Benefits
- Includes machine manual
- Includes service reports
- Well maintanined machine
- Includes maintenance logs
Technical Machine Benefits
- Taper angle: ± 20º in 78mm
- Automatic threading
- Scrap wire shredding
Machine History
Industries
Medical device
End product
Medical device parts
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
