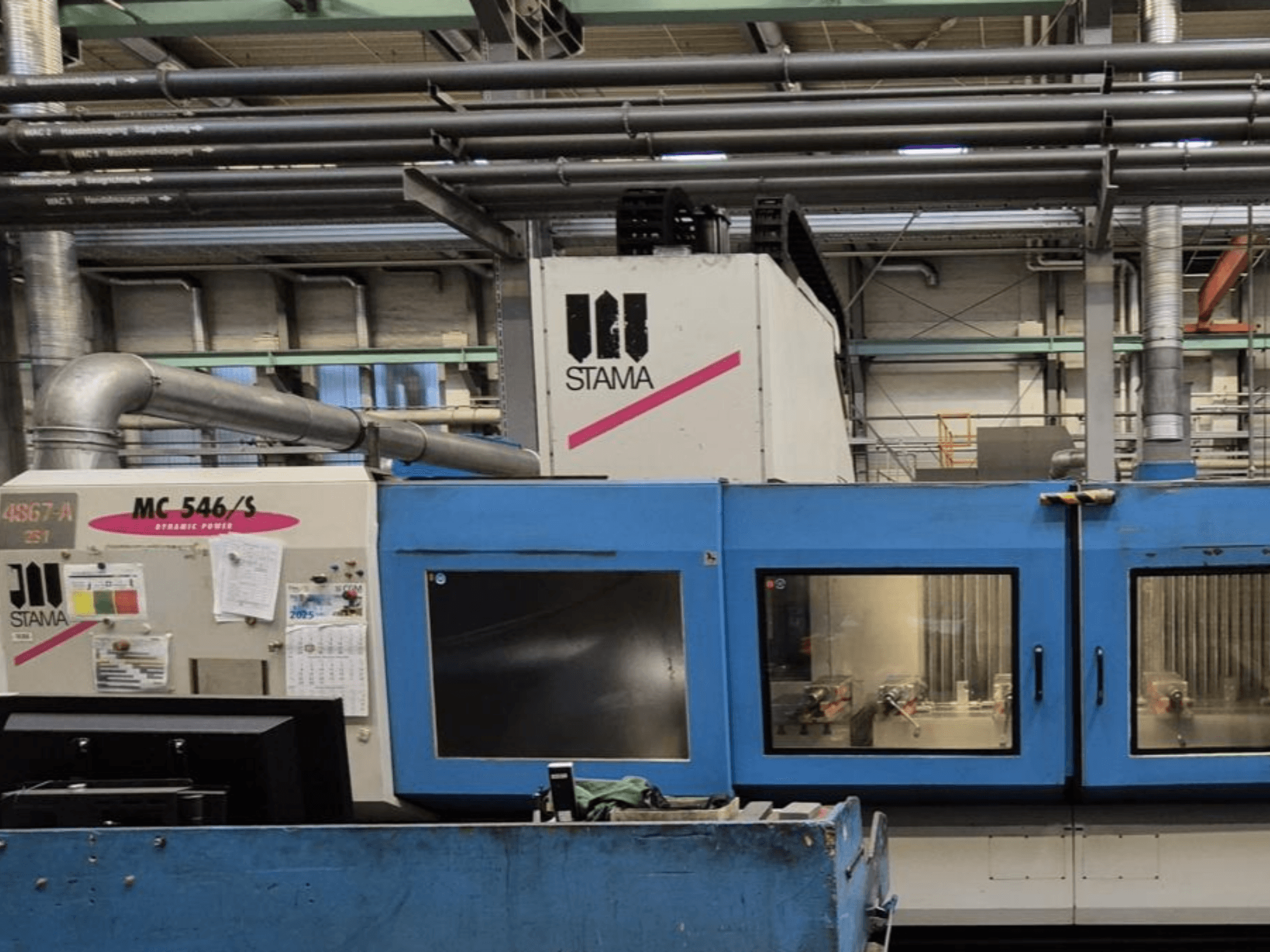

STAMA - MC 546/SDE-MIL-STA-2000-00003

- Throat Depth: 890 mm

- Table to Spindle Nose Min.: 450 mm

- Table to Spindle Nose Max.: 1200 mm

- Max. Workpiece Weight: 15 kg

- Table Clamping Surface Length: 4500 mm

- Table Clamping Surface Width: 840 mm

- T-Slots: 2 (22 DIN 650)

- Slot Width: 22H12/H7

- Slot Distance: 700 mm

- Table Height Above Floor: 890 mm

- Required Floor Area (L x W x H): 10.2 m x 6.4 m x 4.0 m

- Total Weight: 27,400 kg

- Connected Load: 50 kVA

- Total Power Requirement: 50 kW

- Voltage: 400 V (3~, 50 Hz)

- Rated Current: 80 A

- Spindle Bearing Diameter: 95 mm

- Tool Taper / Holder: SK50

- Max. Torque: 840 Nm with gear ratio i=4 (at 40% ED)

- Spindle Speed Range: 36 - 6000 rpm

- Tool Magazine Capacity: 60 tools

- Tool Clamping Force: 20,000 N

- Max. Tool Diameter: 180 mm

- Max. Tool Length: 400 mm

- Feed Rates (X, Y, Z): 1 - 10,000 mm/min

- Rapid Traverse Rates (X / Y / Z): 30 m/min / 30 m/min / 22 m/min

- Max. Feed Force (X / Y / Z): 12,000 N / 12,000 N / 18,000 N

- Max. Milling Capacity: 1,000 cm³

- Max. Drilling Diameter: 90 mm

- Max. Tapping Diameter: M40

- Included features: Weekend switch-off circuit; internal lighting

- Not included: Clamping table; vices
