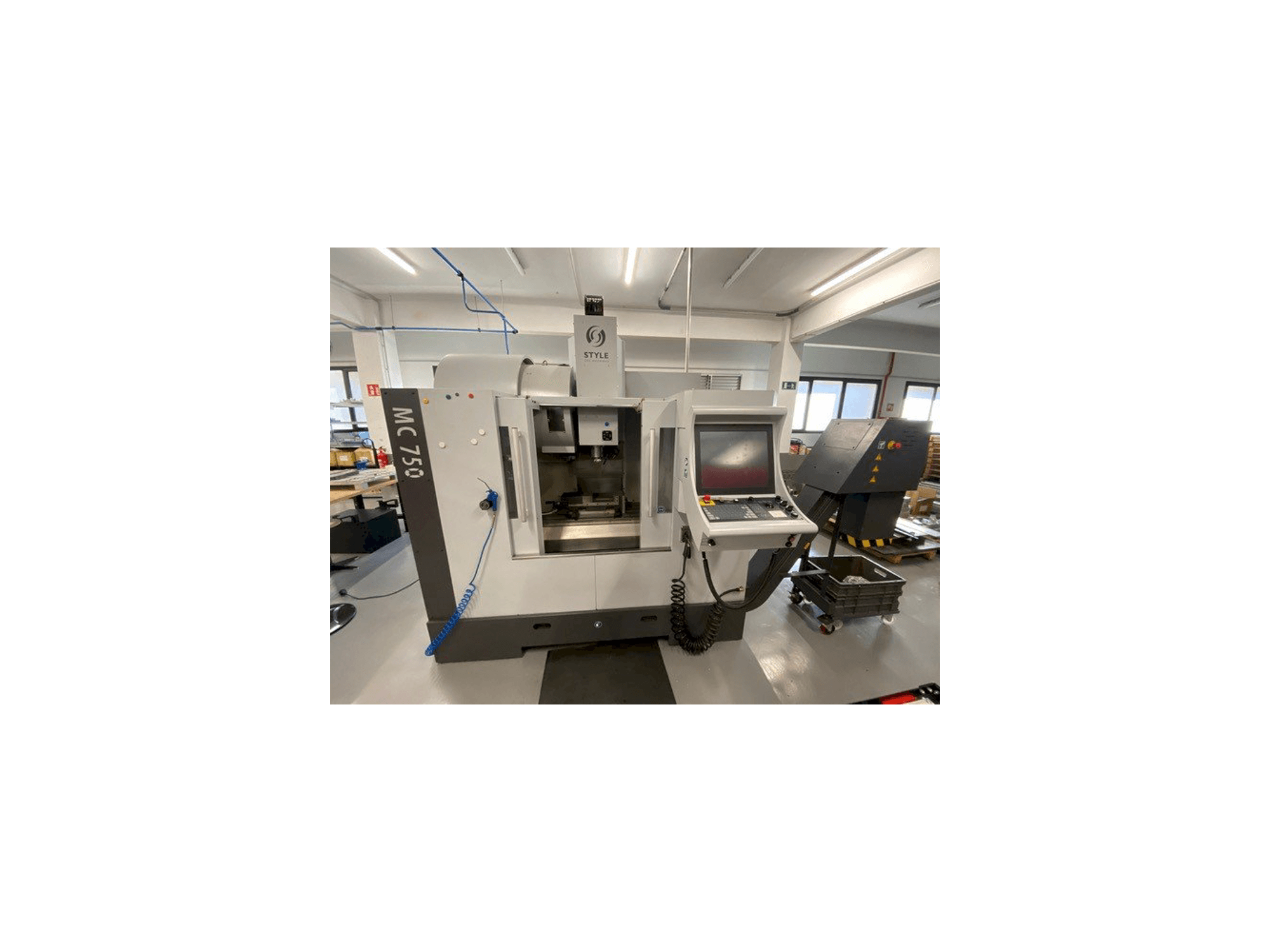

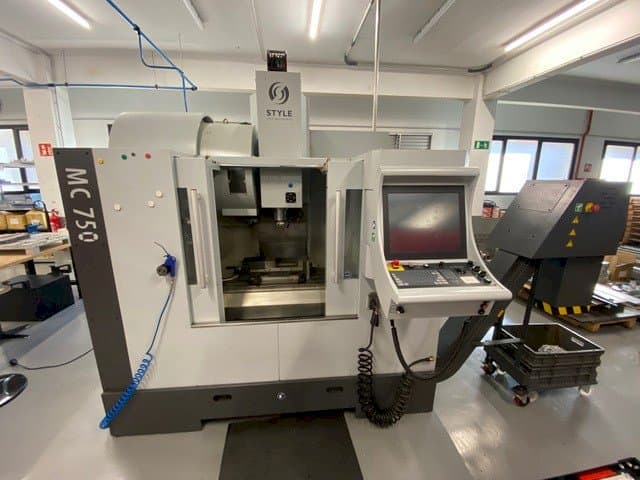

STYLE MC 750 Vertical Machining center

Show in original language

This STYLE MC 750 Vertical Machining center was manufactured in the year 2020 in the Netherlands and has 1156 production hours. It has 4 axis. The machine has a spindle speed of 8000 rpm. See the extract of the original order confirmation (EN) attached as PDF below.

Overview

brand: STYLE
year: 2020
MODEL: MC 750
production hours: 1156
application type: Milling
Location: Andorra
machine type: Vertical Machining Centre

Technical Information - STYLE MC 750

Dimensions

Machine Depth: 2100 mm
Machine Height: 2500 mm
Machine Weight: 3300 kg
Table Length: 900 mm
Table Load: 350 kg
Table Width: 410 mm

Movement

Number of Axes: 4
X-axis Travel: 760 mm

Technical Specification

Spindle Power: 5.5 kW
Spindle Speed: 8000 RPM
Taper Size: BT 40

Additional Information

Machine Benefits

Technical Machine Benefits

Distance spindle nose to table 100-560 mm
Distance spindle nose to column 475 mm
X-, y- and z-axis
Rapid movement x/y/z 24 m/min
Feed rate x/y/z 10 m/min
Axis guide width x/y/z mm lineair 35
Automatic tool changer 16/24
Max. Weight tools 8 kg
Max. Tools length 300 mm
T-slots (din 650) 16x100x4 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
