SUMITOMO SHI DEMAG - El-Exis S250/630-1600DE-INJ-SUM-2012-00001

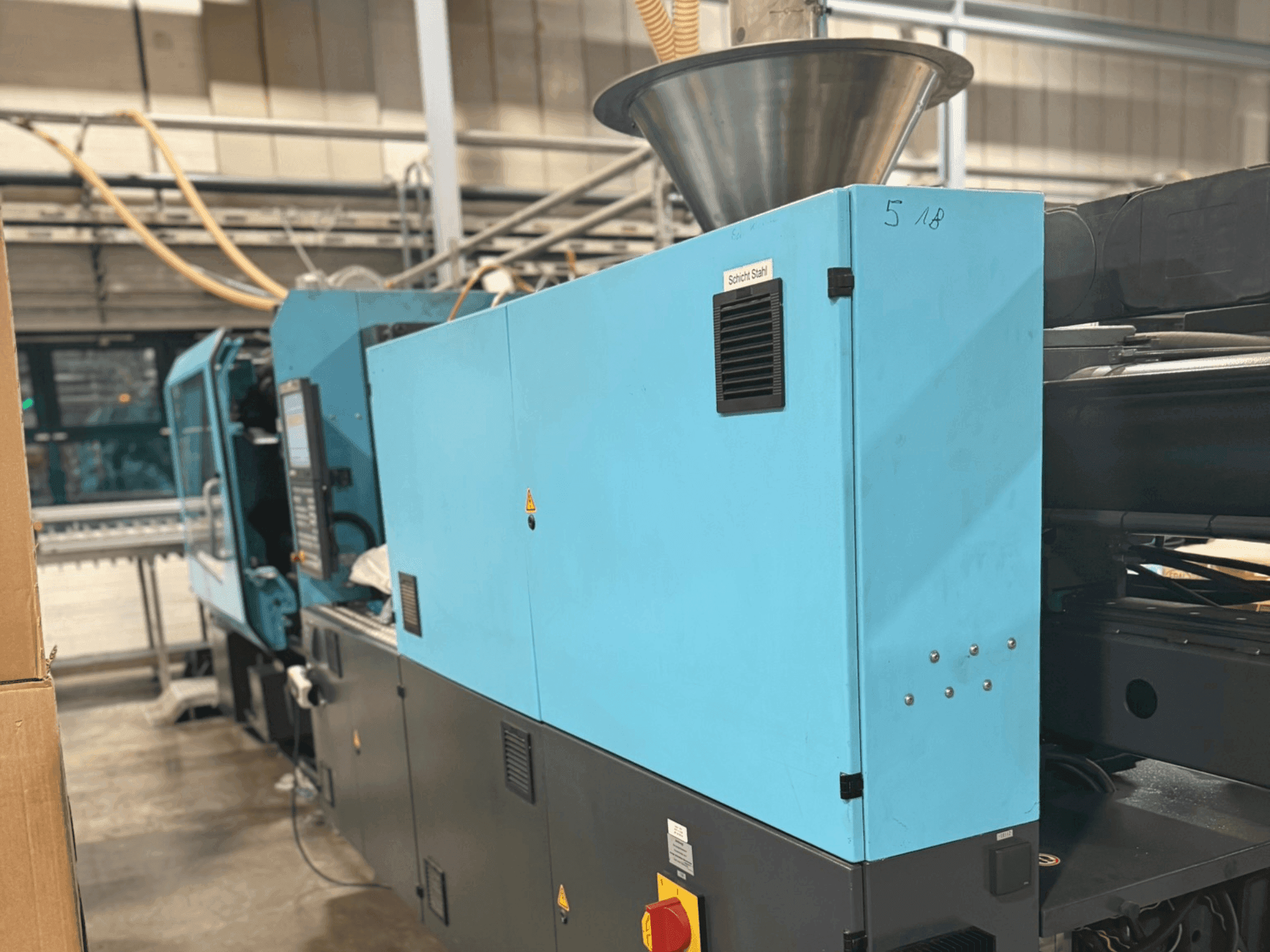

Name: SUMITOMO SHI DEMAG El-Exis S250/630-1600
Brand: SUMITOMO SHI DEMAG
SKU: DE-INJ-SUM-2012-00001
Price: 25000 EUR
Availability: InStock

25,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used SUMITOMO SHI DEMAG El-Exis S250/630-1600 For Sale

Show in original language

This SUMITOMO SHI DEMAG El-Exis S250/630-1600 was manufactured in 2012. It features a clamping force of 2500 kN, a screw diameter of 50 mm, and a shot weight maximum of 482 g. The machine has a dry cycle time of 1.2 seconds and a total installed power of 57.9 kW. If you are looking to get high-quality injection moulding capabilities, consider the SUMITOMO SHI DEMAG El-Exis S250/630-1600 machine we have for sale. Contact us for more information.

Overview

brand: SUMITOMO SHI DEMAG
year: 2012
MODEL: El-Exis S250/630-1600
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - SUMITOMO SHI DEMAG El-Exis S250/630-1600

General Data

Measurements width: 1900 mm
Measurements depth: 6600 mm
Measurements height: 2400 mm
Machine weight: 14900 kg

Injection Unit

Screw diameter: 50 mm
Shot weight: 482 g
Stroke volume: 530 cm3 CM³
Injection pressure: 2426 bar
Adjustable heating zones: 5
Nozzle pressure: 110 kN

Clamping unit

Clamping force: 2500 kN
Opening stroke: 670 mm
Max open daylight: 1380 mm
Mould height min: 330 mm
Mould height max: 710 mm
Ejector stroke: 200 mm
Ejector force for / back: 81 kN

Media

Pump drive power: 30 kW
Oil tank: 550 L

Additional Information

Clamping unit size: 250
Holding force: 2750 kN
Platen size (H x V): 930 x 930 mm
Distance between tie bars (H x V): 630 x 630 mm
Ejector retraction force: 40 kN

Injection unit (size 1600)
- Screw geometry: Standard
- L/D ratio: 25
- Injection rate (PS, without accumulator): 530 cm3/s
- Metering stroke: 270 mm
- Nozzle stroke (max): 110 mm
- Material hopper capacity: 110 L

Electric metering drive: 13.1 kW
Cylinder heating: 14.8 kW
Dry cycle time (EUROMAP 6): 1.2 s
Dry cycle stroke (EUROMAP 6): 441 mm
Dimensions
- Max drive overhang with nozzle contact: 184 mm
- Max drive overhang with nozzle retraction: 1279 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
