➤ Used Takumi V12 For Sale | gindumac.com

Show in original language

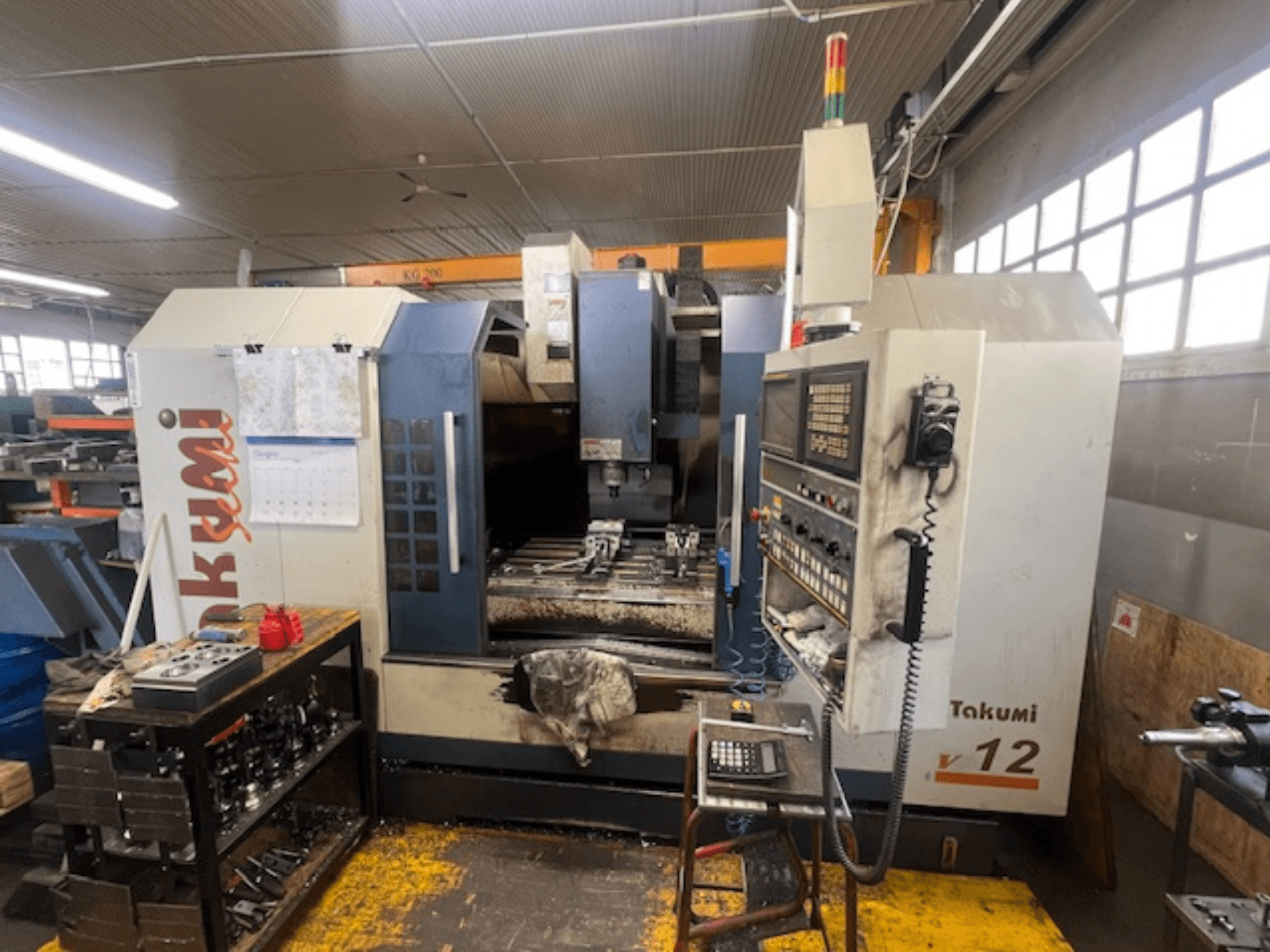

This 3-axis Takumi V12 vertical machining center was manufactured in 2007. It features a Fanuc 18i CNC control, with travel dimensions of X-axis 1200 mm, Y-axis 660 mm, and Z-axis 610 mm. The spindle offers 15 kW power and speeds up to 10,000 rpm. It includes a 32-tool magazine and a high-pressure coolant system at 20 bar. If you are looking to get high-quality milling capabilities consider the Takumi V12 machine we have for sale. Contact us for more information.

Overview

brand: Takumi
year: 2007
MODEL: V12
application type: Milling
Location: Italy
machine type: Vertical Machining Centre

Technical Information - Takumi V12

Main drive

Spindle speed range: 10000 rpm 1/MIN
Spindle motor power: 15 kW
Tool taper: BT 40

Movement

X-AXIS Movement: 1200 MM
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 660 MM
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 610 MM
Z-AXIS Rapid traverse: 25 m/min

Additional Information

Additional information

Spindle-to-table distance: 150 – 660 mm
Dimensions: 1350 × 690 mm
4th–5th Axis Rotary Table: TJR
Tool Magazine Capacity: 32 tools
Tool Change Time: 2.2 sec
Max Tool Weight: 7 (15) kg
Max Tool Length: 250 mm
Max Tool Diameter: 65 (130) mm
Dimensions of Machine (LxWxH): 3100 × 2050 × 2640 mm
Weight (kg): 7500 kg
Coolant System: High-pressure coolant at 20 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
