- TRIMILL VC1110 milling machine

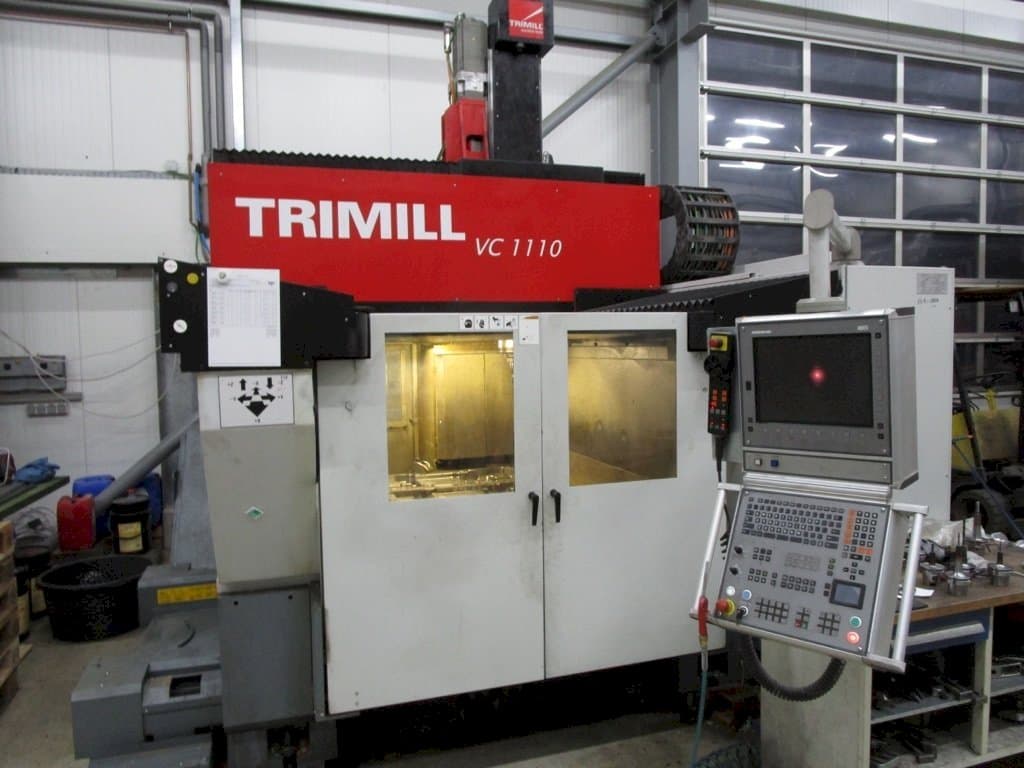

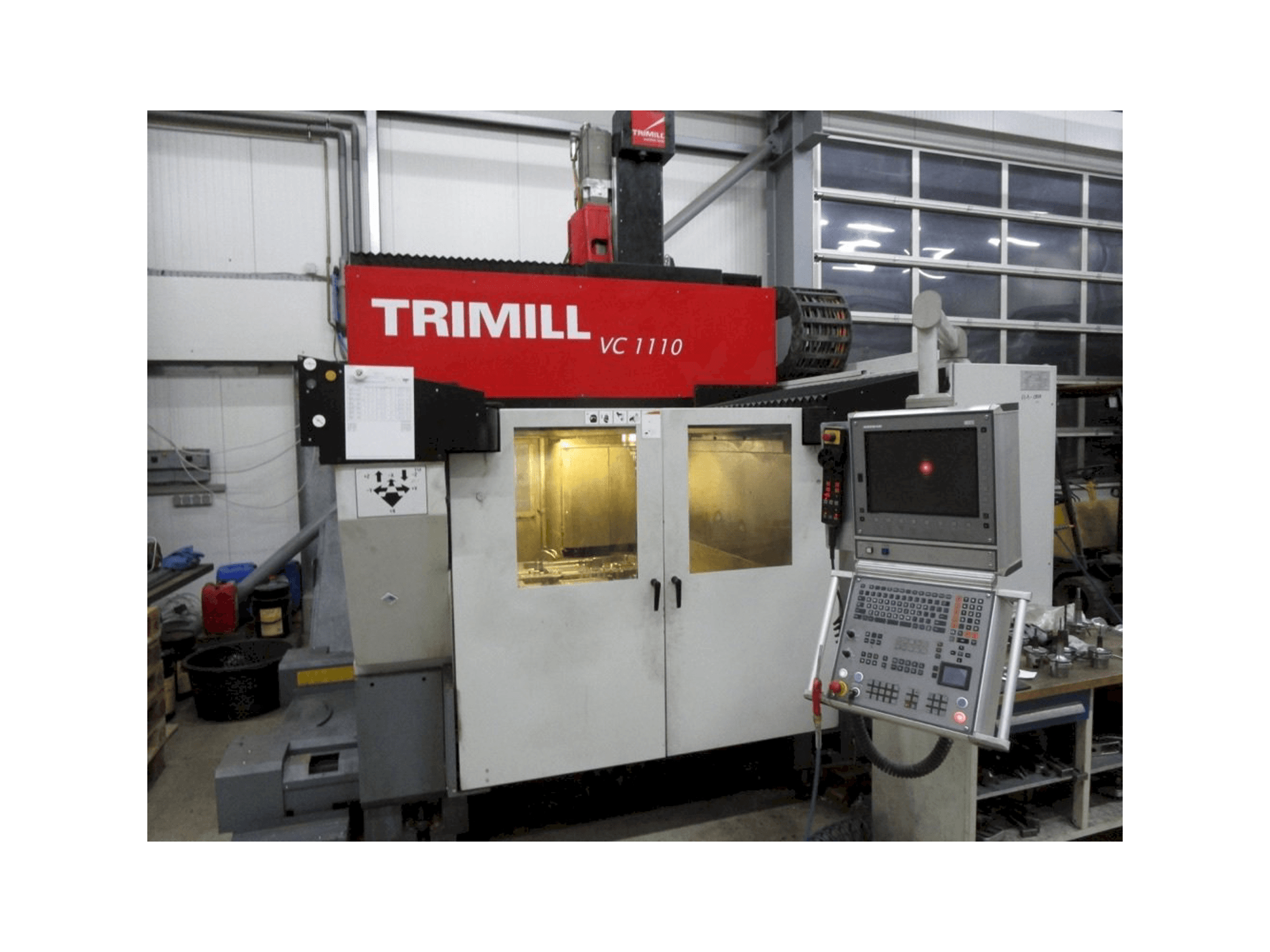

This TRIMILL VC1110 milling machine was made in the year 2011 in the Czech Republic. It is operated with a Heidenhain TNC530 control unit. It has approximately 12000 spindle hours. This machine has a spindle speed up to 14000 rpm. This 3 axis machine especially developed for the tool, die and mould industry.
Overview
- brand: TRIMILL
- year: 2011
- MODEL: VC1110
- production hours: 12000
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - TRIMILL VC1110
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC530
Dimensions
- Machine Depth: 3550 mm
- Machine Height: 3810 mm
- Machine Weight: 15000 kg
- Table Length: 1500 mm
- Table Load: 8000 kg
- Table Width: 1300 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1000 mm
- Y-axis Travel: 1110 mm
Technical Specification
- Spindle Power: 25 kW
- Spindle Speed: 14000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Laser measurement
- 10 compartment changer
- 3-d probe
- Top equipped
Technical Machine Benefits
- Heavy duty 3-axes machine, especially developed for the tool-, die- and mould industry
- Closed design of the double-beam and cross-slide (box in box design) with internal, quadruple guided ram-type milling unit
- Constantly perfect cutting results by means of load- and thermo symmetric design
- Execution as overhead gantry, therefore controlled dynamic and accuracy
- Stationary work piece for constantly good surface qualities
- High productivity by means of roughing and finishing in one set-up
- Very compact machine, large working area in spite of extreme small floor-space
- Customized distance between spindle nose and clamping surface
- Ergonomic operation by means of floor-level access to the machine tool
- Convincing cost-performance ratio
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
