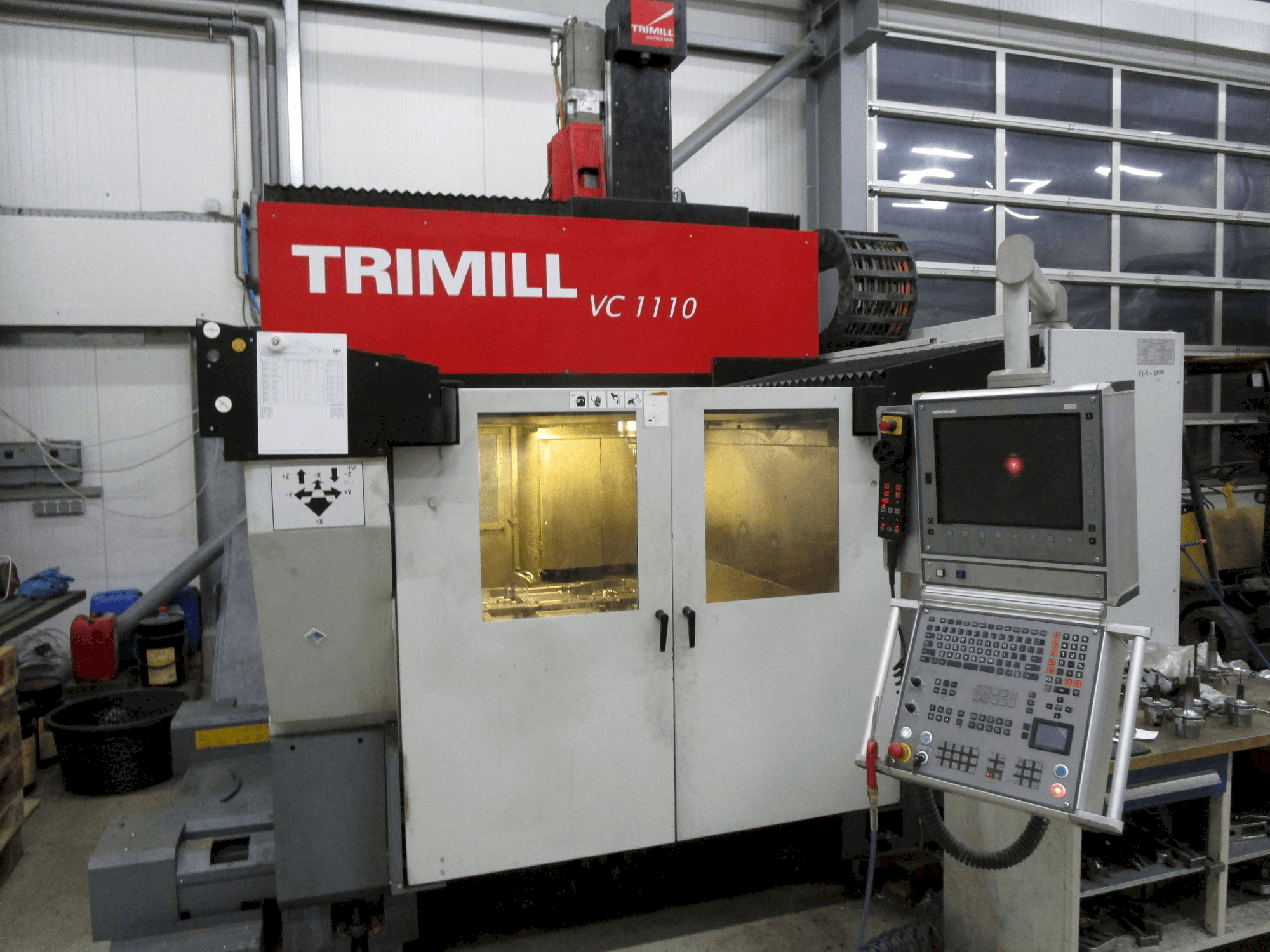

TRIMILL VC1110 Vertical Machining Center

Show in original language

This TRIMILL VC1110 Vertical Machining Center was made in the year 2011 in the Czech Republic and has 34000 production hours, of which 15250 are spindle hours. It is equipped with a Heidenhain iTNC 530 control unit. The machine has a spindle speed of 24000 rpm.

Overview

brand: TRIMILL
year: 2011
MODEL: VC1110
production hours: 34000
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - TRIMILL VC1110

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530

Dimensions

Table Length: 1300 mm
Table Width: 1370 mm

Movement

Number of Axes: 3
X-axis Travel: 1100 mm
Y-axis Travel: 1000 mm
Z-axis Travel: 700 mm

Technical Specification

Spindle Speed: 24000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Blum laser control for tool measurement
Low pressure minimum quantity oiling with external feed trimill inform
Trimill teleservice
Attachment clamping plate 1. 300 x 1. 350 x 150 mm with t-slots
Stable 3-axis machine, specially developed for tool, die and mold making
Traversing speeds [mm/min] 30,000
Axis accelerations [m/s2] 3

Technical Machine Benefits

High-frequency main spindle 25 kw, 170 nm, hsk 80 tool holder
Milling spindle cooling
Supply of compressed air through the inner spindle
Machine table for receiving the workpieces
Cnc control heidenhain itnc 530 hsci with 15" tft color screen
Direct path measuring systems in all axes
Tool changer in plate design for 10 tools
2 screw conveyors, 1 gooseneck slat conveyor
Work area enclosure complete, incl. Textile roof
High frequency finishing spindle imt 8 kw with automatic tool clamping hsk 40, 24. 000 1/min, docking station

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
