TRUMPF - TruBend 5230DE-BEN-TRU-2012-00001

Name: TRUMPF TruBend 5230
Brand: TRUMPF
SKU: DE-BEN-TRU-2012-00001
Price: 67000 EUR
Availability: InStock

67,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used TRUMPF TruBend 5230 - Press For Sale | gindumac.com

Show in original language

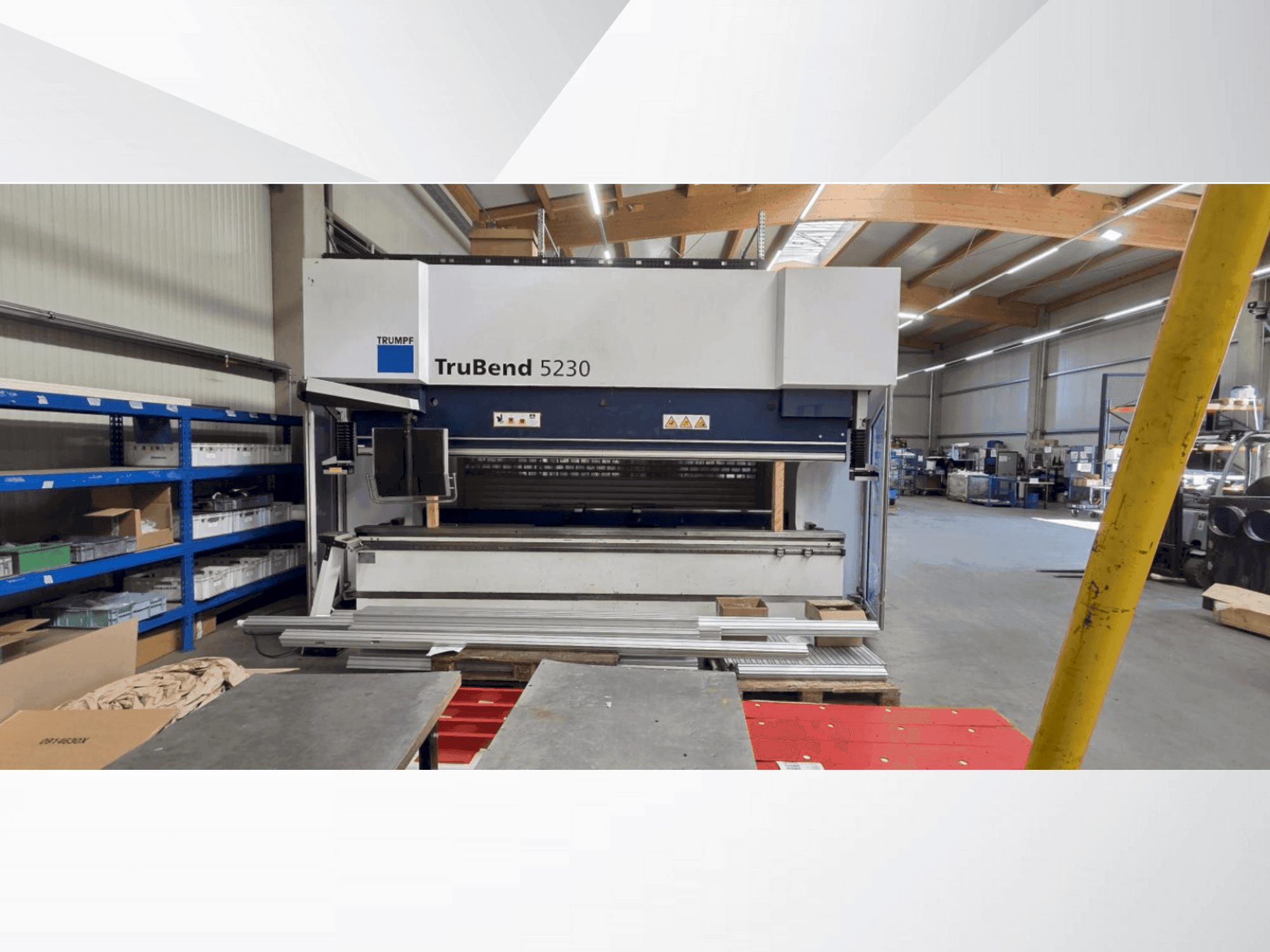

This 4-axis TRUMPF TruBend 5230 press brake was manufactured in 2012. It features a maximum press force of 2,300 kN, a bending length of 4,250 mm, and a stroke of up to 445.0 mm. Equipped with TASC 6000 control and hydraulic upper tool clamping, it's ideal for precise bending operations. Consider the opportunity to buy this TRUMPF TruBend 5230 press brake. Contact us for more information about this machine.

Overview

brand: TRUMPF
year: 2012
MODEL: TruBend 5230
production hours: 4000
application type: Bending
Location: Germany
machine type: Press Brake

Technical Information - TRUMPF TruBend 5230

General Data

Machine weight: 19200 KG

Additional Information

Additional information

Press Force: Max. 2300 kN
Bending Length: 4250 mm
Stroke: Max. 445 mm
Operating Pressure: Max. 300 bar
Stopping Time: Max. 95 ms
Stopping Distance: Max. 10 mm
Safety Distance: Min. 190 mm

Upper Tool Clamping: Hydraulic
Lower Tool Clamping: Hydraulic
Lower Tool Shifting: Pneumatic

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
