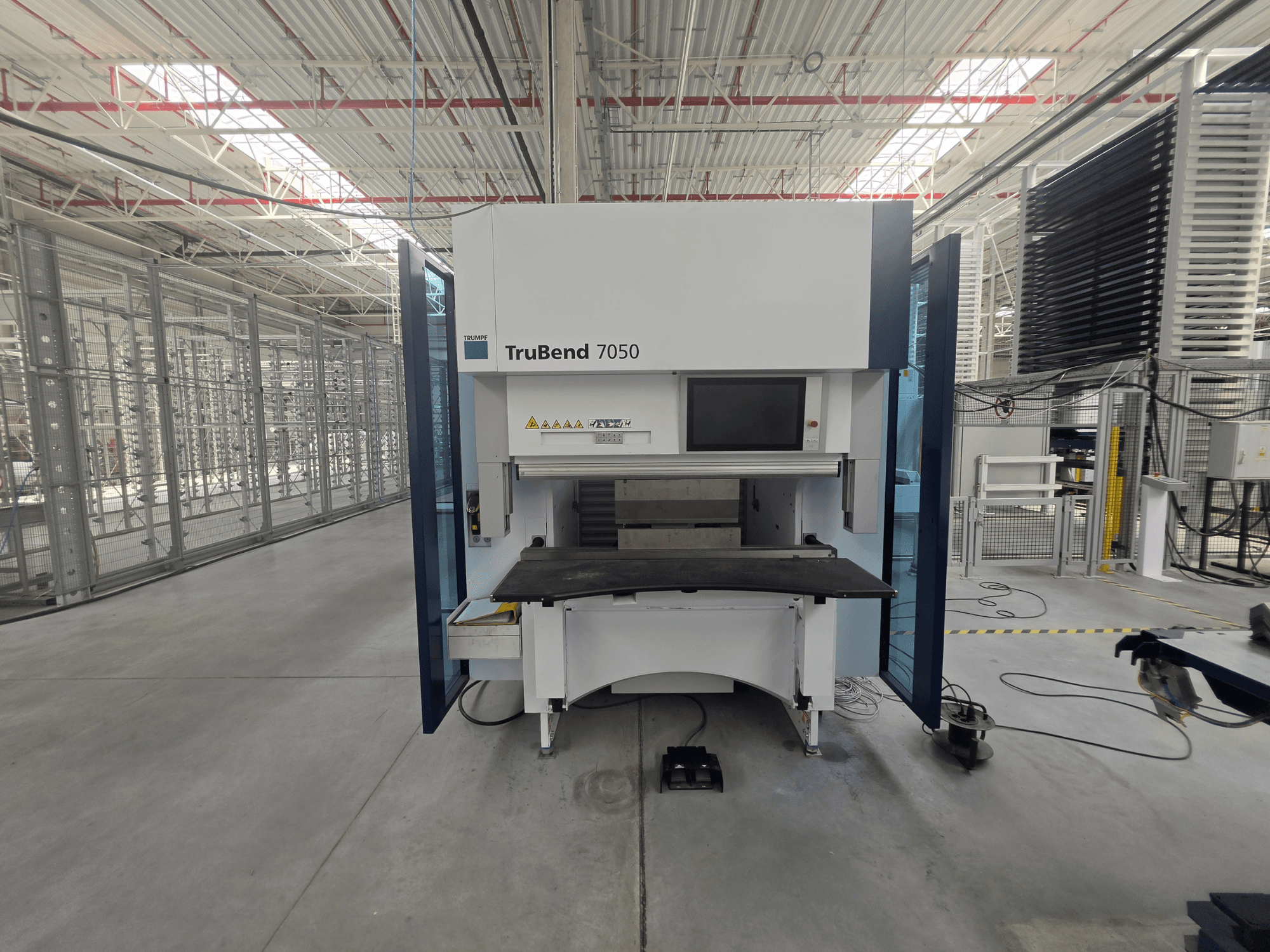

TRUMPF - TruBend 7050 (B28)PL-BEN-TRU-2022-00001

• Drive: Dynamic electromechanical Torque Drive

• Capacity and dimensions:

  • Free upright clearance: 1,305 mm

  • Usable installation height: 385 mm

  • Throat depth: 250 mm

  • Working height: 1,150 mm

  • Machine frame: Stable welded frame

• Axes and backgauge:

  • CNC axes: 7 (Y, X1, X2, R1, R2, Z1, Z2)

  • Backgauge: 6-axis independent system (X1/X2/R1/R2/Z1/Z2), both units move independently

  • Backgauge features: Carbon-fiber fingers, hardened reference surfaces, helical rack Z-drive, flexible positioning

• Travels / working range:

  • Y stroke: 215 mm

  • X travel: 240 mm (max backgauge range 500 mm)

  • R travel: 153 mm

• Speeds:

  • Y rapid/return: 220 mm/s

  • Y working: 25 mm/s

  • X: 1,500 mm/s

  • R: 750 mm/s

  • Z: 2,200 mm/s

• Positioning accuracy:

  • Y: 0.002 mm

  • X: 0.02 mm

  • Z: 0.02 mm

• Crowning:

  • CNC-controlled crowning, automatic compensation via drive

  • Crowning drive integrated in the table

  • Suited for multi-station bending

• Y-axis / press beam:

  • Inductive Y measuring system

  • Dynamic spring-back compensation with automatic force-based correction

  • Hardened adjustable guide strips

• Control system:

  • TRUMPF Touchpoint TruBend, 21.5" TFT Full HD (1920×1080)

  • Intel Core i5 2.7 GHz dual-core, Windows Embedded Standard 7

  • Realistic 3D visualization, TRUMPF technology database

  • User management with Standard/Expert/Administrator levels

  • 10 user access cards included

• Data interfaces:

  • USB, RJ45, Ethernet 10/100 Mbit/s

  • Central Link, OPC UA

  • Internet teleservice / remote diagnostics

• Tool clamping and setup:

  • Automatic TRUMPF upper and lower tool clamping (self-centering, hardened)

  • Fast segment change

  • LED Tool Indicator integrated in upper clamping (shows setup positions/next bend station)

• Safety:

  • Automatic BendGuard (part of Productivity Package Plus)

    • Optoelectronic safety system with automatic tool-height setting

    • Allows max permissible Y speed with foot pedal

    • Automatic adjustment, movable out of working area for side processing

  • Electronically monitored side safety doors

  • Electrically operated lift-up rear doors

  • Emergency stop

  • Transport securing devices

  • CE marking

• Ergonomic package:

  • Front support table

  • Front and rear LED work-area lighting

  • Support for seated/standing operation

  • Document shelf

  • Drawer for measuring instruments

Additional equipment

• Measuring equipment:

  • Digital angle gauge

  • Digital caliper

  • 90-degree edge square

• Wireless 2D code reader with Bluetooth connection
