TRUMPF - TruLaser 5060 Fiber 10 kWTR-CUT-TRU-2020-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used TRUMPF TruLaser 5060 Fiber 10 kW | Laser Cutting

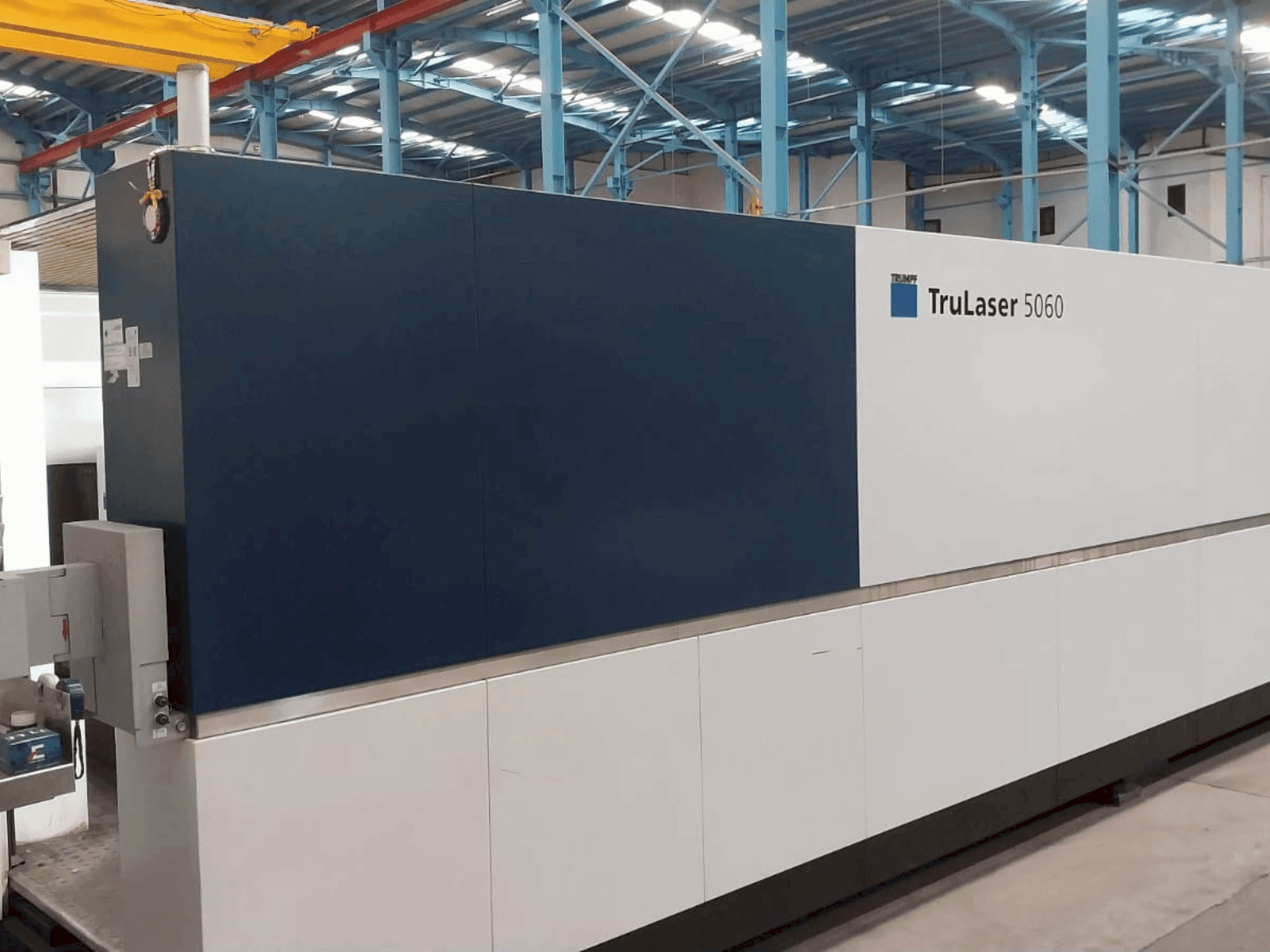

This fiber laser cutting machine was manufactured in 2020. The TRUMPF TruLaser 5060 Fiber 10 kW features a robust closed machine frame with integrated laser unit, Siemens 840 D control, and a powerful 10,000 Watt solid-state laser. It handles steel up to 30 mm, stainless steel up to 40 mm, and aluminium up to 30 mm efficiently. Ideal for high-precision cutting, the machine we have for sale includes an automatic pallet changer and advanced safety features. Contact us for further details regarding this fiber laser cutting machine.
Overview
- brand: TRUMPF
- year: 2020
- MODEL: TruLaser 5060 Fiber 10 kW
- application type: Cutting
- Location: Turkey
- machine type: Fiber Laser Cutting Machine
- control unit brand: SIEMENS
Technical Information - TRUMPF TruLaser 5060 Fiber 10 kW
Control Unit
- Control Brand: SIEMENS
- Control Model: 840 D
Dimensions
- Machine Depth: 6373 mm
- Machine Height: 2200 mm
- Machine Weight: 18500 kg
Movement
- X-axis Travel: 6000 mm
- Y-axis Travel: 2000 mm
Additional Information
Machine Benefits
Technical Machine Benefits
- Max. Steel: 30 mm
- Max. Stainless steel: 40 mm
- Max. Aluminium: 30 mm
- Max. Copper: 16 mm
- Max. Brass: 12. 7 mm
Extra Information
Machine still under power
