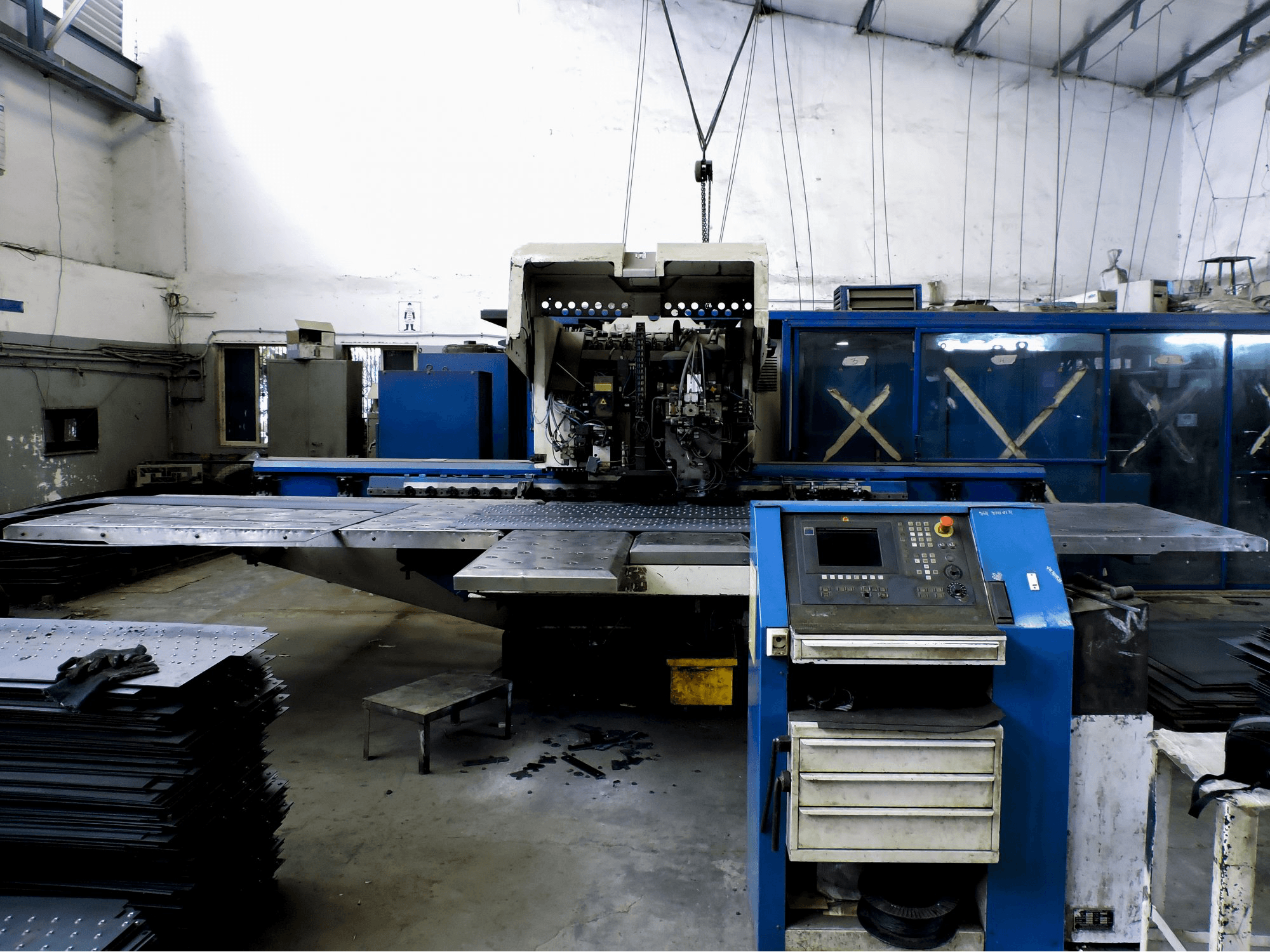

Front view of Trumpf Trumatic 600L machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 600L

Photo Gallery

TRUMPF - Trumatic 600LIN-PUN-TRU-1997-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf Trumatic 600L Laser Cutting and Punching Hybrid Machine

Show in original language

This Trumpf Trumatic 600L is a Laser Punch Combination Machine that was built in the year 1997. This machine has a working history of 48000 hours, and counts furthermore with 61269 laser hours and 11113 beam hours. In the past, this Trumatic 600L has been working mostly on 3mm thick mild steel for Job shop tasks and is controlled via a Siemens SINUMERIK 840D Control unit with an Ethernet interface.

Overview

brand: TRUMPF
year: 1997
MODEL: Trumatic 600L
production hours: 48000
application type: Cutting
Location: India
machine type: CO2 Laser Cutting Machine
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic 600L

General Data

Measurements width: 9000 mm
Measurements depth: 9000 mm
Measurements height: 2600 mm
Machine weight: 13000 kg

Control Unit

Model: SINUMERIK 840D
Interface: Ethernet
Brand: SIEMENS

Main drive

Laserpower: 1.5 kW
Laser type: Co2
Punching force: 220 kN
Maximum sheet thickness: 3 mm
Laser brand: Trumpf

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1250 mm
Z-AXIS Movement: 110 mm

Tools

Number of index: 12
Number of stations: 12
Max tool diameter: 76.2 mm

Max Material thickness

Steel: 10 mm
Stainless steel: 6 mm
Aluminum: 4 mm

Machine specific data

Size of cutting head 1: 5"

Media

Main electronic connection: 380 V
Power consumption: 65 kVA
Air pressure: 6 bar

Additional Equipment

- Stabilizer
- Compressor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
