TRUMPF Trumatic L3050

Photo Gallery

SOLD

TRUMPF - Trumatic L3050

2001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf Trumatic L3050 Laser Cutting Machine

Show in original language

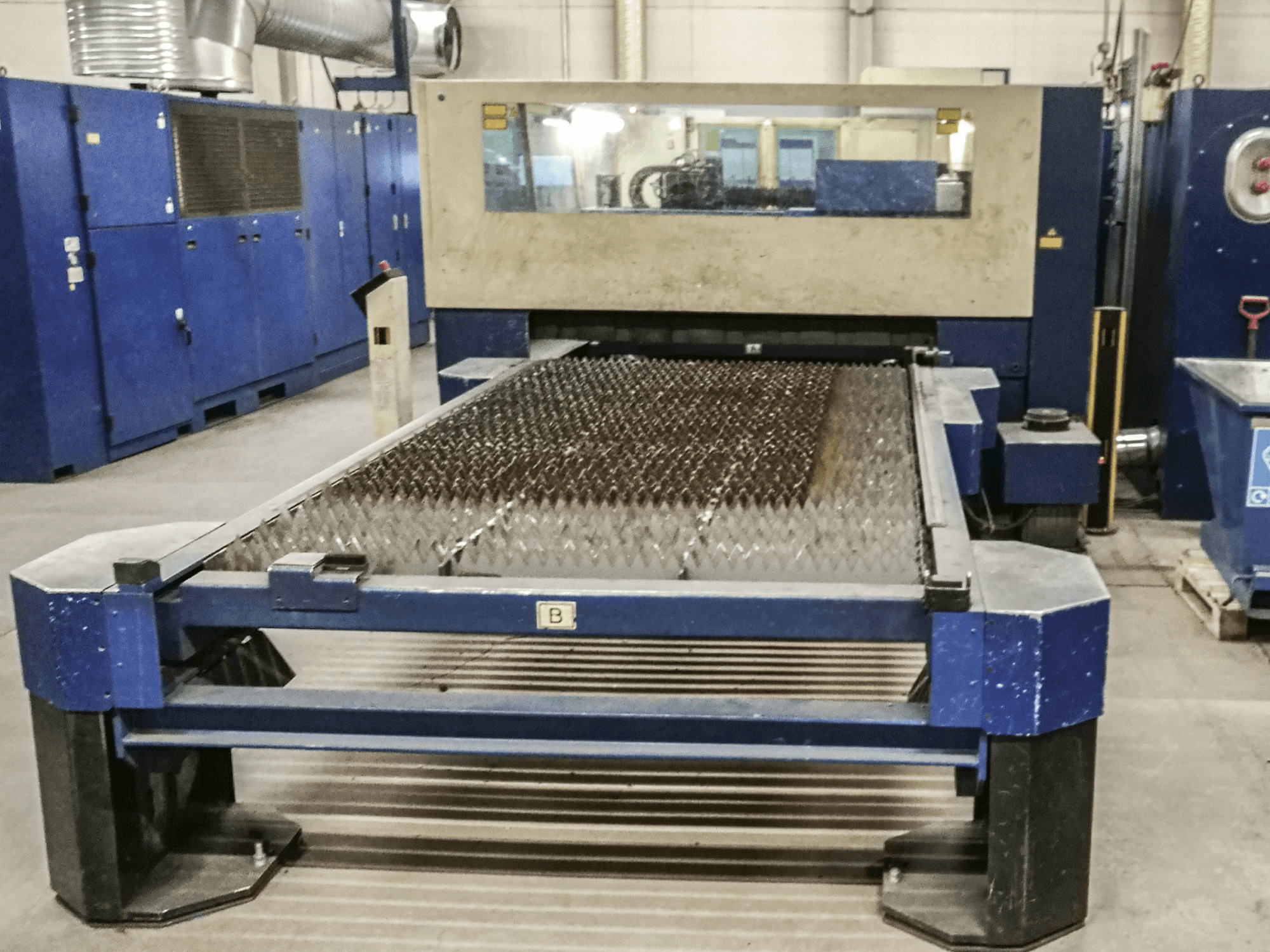

This Trumpf Trumatic L3050 Laser Cutting Machine was built in 2001 in Germany and has a working record of 78583 production hours, respectively 37960 laser hours since then. Equipped with a SIEMENS SINUMERIK 840D Control unit and a TLF 5000 turbo laser unit, this machine has mainly worked with steel sheets during the past.

Overview

brand: TRUMPF
year: 2001
MODEL: Trumatic L3050
production hours: 78583
application type: Laser Cutting
Location: Estonia
machine type: Laser Cutting Machines (CO2)
availability: Sold
control unit brand: SIEMENS
GINDUMAC ID: EE-LAS-TRU-2001-00001

Technical Information

General Data

Measurements width: 4600 mm
Measurements depth: 11100 mm
Measurements height: 2400 mm
Machine weight: 12000 kg

Control Unit

Brand: SIEMENS
Model: SINUMERIK 840D

Main drive

Laserpower: 5 kW
Laser brand: TLF 5000 turbo

Movement

X-AXIS Movement: 3050 mm
Y-AXIS Movement: 1550 mm
Z-AXIS Movement: 115 mm

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1580 mm
Workpiece z: 123 mm
Workpiece weight: 900 kg

Max Material thickness

Steel: 25 mm
Stainless steel: 20 mm
Aluminum: 12 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 128 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
