WALDRICH COBURG plano milling machine

Show in original language

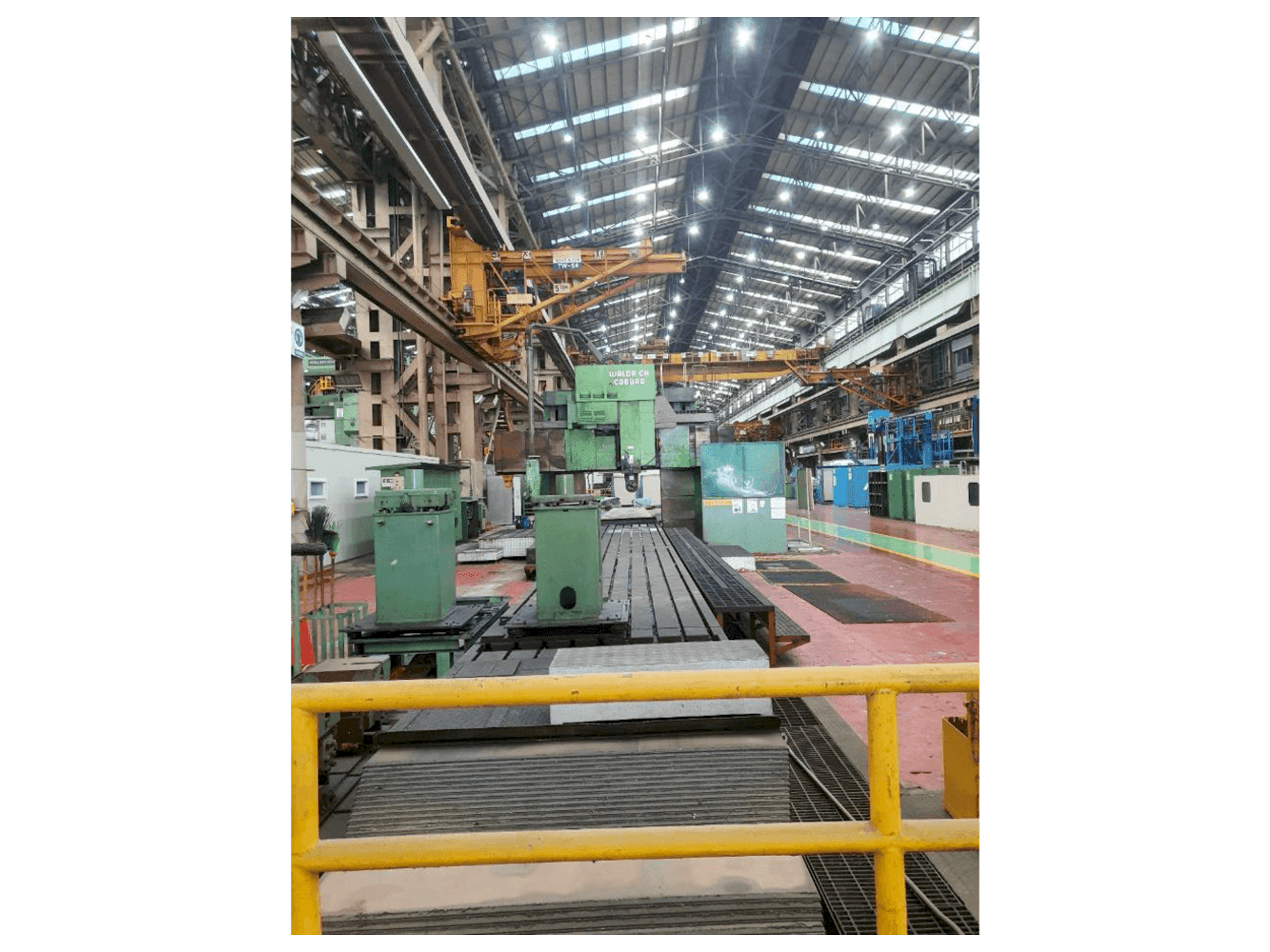

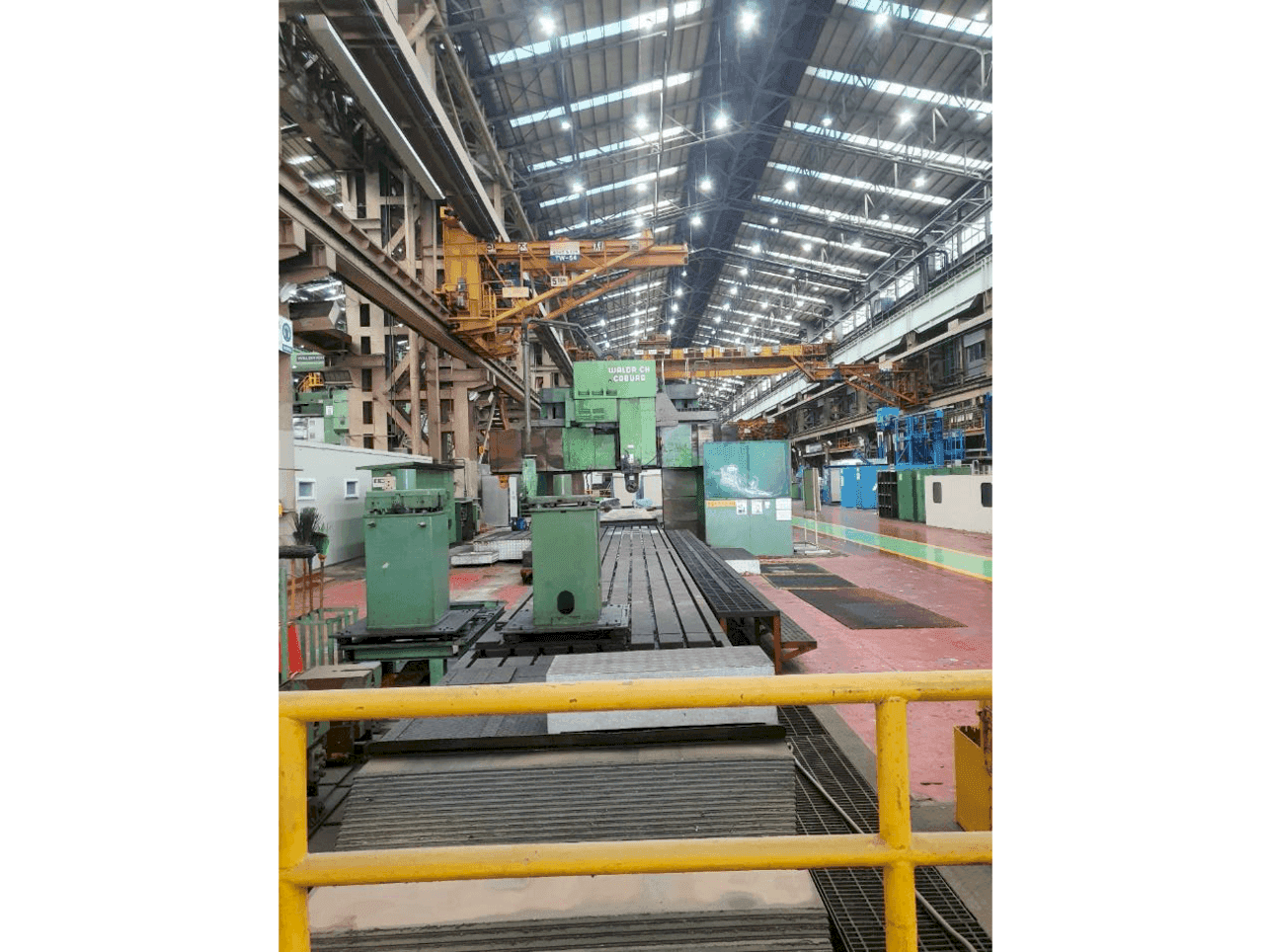

This WALDRICH COBURG plano milling machine was built was refurbished in 1999. It is equipped with a Siemens 840D control unit. The machine has a spindle speed of 6 - 750 rpm and a distance between columns of 2105mm.

Overview

brand: WALDRICH COBURG
year: 1999
MODEL: -
application type: Milling
Location: South Korea
machine type: Gantry Milling Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - WALDRICH COBURG -

Control Unit

Model: 840C
Brand: SIEMENS

Main drive

Spindle speed range: 6 - 750 1/MIN
Spindle motor power: 75 kw

Movement

X-AXIS Movement: 13741 mm
Y-AXIS Movement: 2760 mm
Z-AXIS Movement: 1000 mm
W-Axis Movement: 1565 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between columns 2,105mm
- - Distance between spindle nose and table surface 2,035mm
- - Spindle torque 8,000nm
- - Table size (table 1, table 2 separate) 1,800 x 6,500mm
- - Table size (table 1, table 2 coupled) 1,800 x 13,000mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
