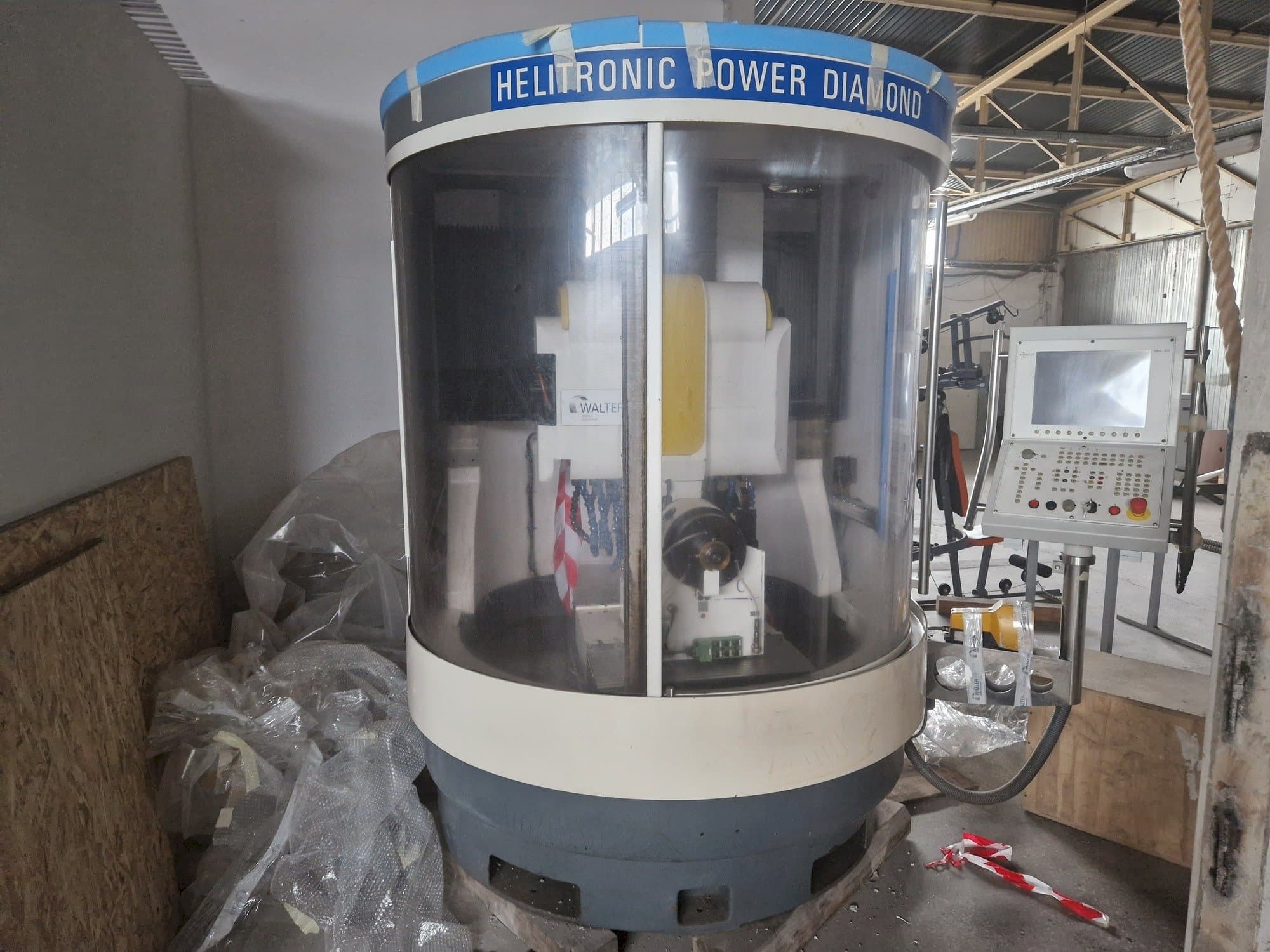

This Walter Helitronic Power Diamond Grinding machine was manufactured in the year 2006 in Germany. It is equipped with a Walter HMC 600 control unit and has 5 axis. The machine has a spindle speed of 0-7000 rpm.
Overview
- brand: WALTER
- year: 2006
- MODEL: Helitronic Power Diamond
- application type: Grinding
- Location: Poland
- machine type: Cylindrical Grinding Machine
Technical Information - WALTER Helitronic Power Diamond
Dimensions
- Machine Depth: 2930 mm
- Machine Height: 2273 mm
- Machine Weight: 4600 kg
Movement
- C-axis: 200°
- Number of Axes: 5
- X-axis Travel: 460 mm
- Y-axis Travel: 320 mm
- Z-axis Travel: 660 mm
Technical Specification
- Spindle Speed: 7000 RPM
- Taper Size: ISO 50
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Walter wwm
- Toolstudio
- Good technical condition and has an accuracy protocol performed by walter.
- Full service history docs available.
- Full documentation in en/de available.
Technical Machine Benefits
- Centre height (with / without worktable) 145 / 190 mm
- Max dia. Of workpiece 320 mm
- Max length of workpiece: 350 mm
- Grinding spindle with 2 ends
- Max. Diameter of wheel: 200 mm
- Spindle diameter: 80 mm
- Torque: 21 nm
- Peak power: 24 kw
