- ➤ Walter Helitronic Power Grinding Machine - Used

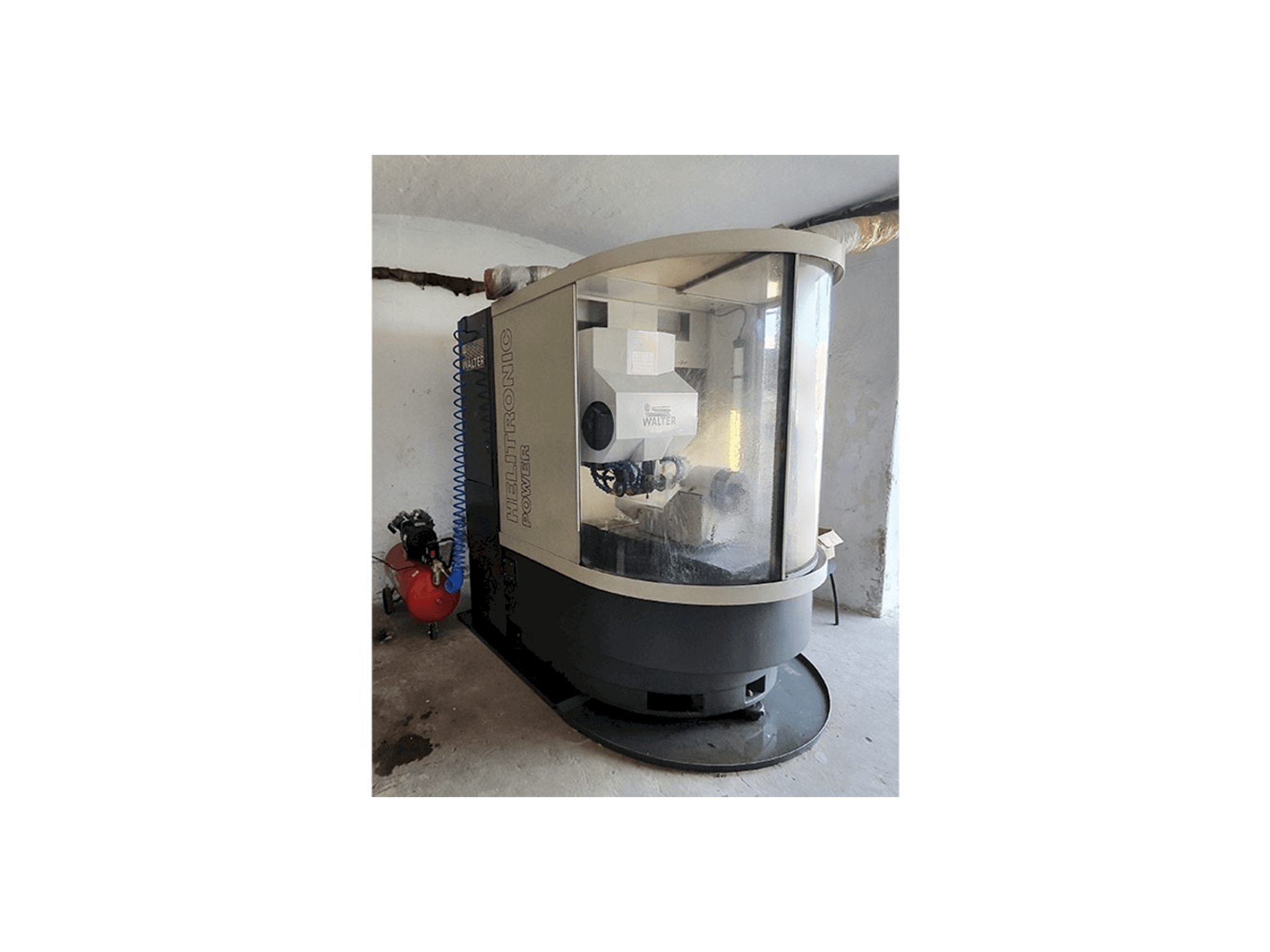

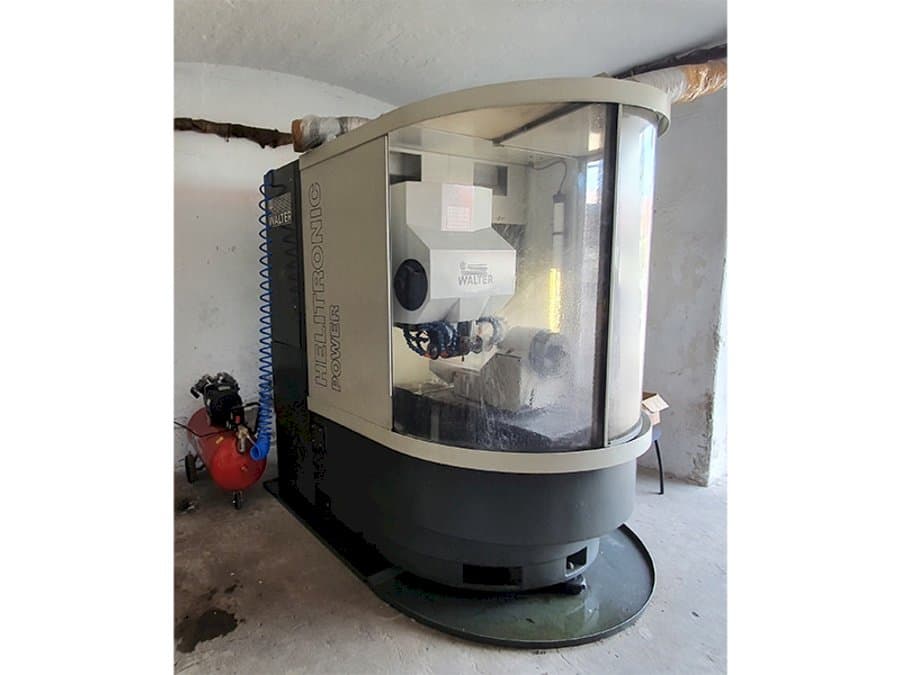

This Walter Helitronic Power Grinding Machine was manufactured in Germany in 1996. It has been working for 41423 hours. This 5 axis machine is operated through a WALTER HMC 400 WWM control unit. It can work with a spindle speed up to 10500 rpm. Machine in good working condition, ready for tests. Full documentation available.
Overview
- brand: WALTER
- year: 1996
- MODEL: Helitronic Power
- application type: Grinding
- Location: Poland
- machine type: Cylindrical Grinding Machine
Technical Information - WALTER Helitronic Power
Dimensions
- Machine Depth: 1420 mm
- Machine Height: 2150 mm
- Machine Weight: 3100 kg
Movement
- Number of Axes: 5
- X-axis Travel: 400 mm
- Y-axis Travel: 250 mm
- Z-axis Travel: 580 mm
Technical Specification
- Spindle Speed: 10500 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Center height: 130 / 165 mm
- Grinding spindle dia. : 70 mm
- Max grinding wheel dia. : 200 mm
- Workpiece holder iso 50
- Spindle motor power 4. 4 kw/ 3000 rpm, 4. 2 kw/ 6000 rpm
- Control unit with 14” screen
- Machine in good working condition, ready for tests
- Full documentation available
Technical Machine Benefits
- X / y / z - axes resolution: 0. 0001 mm
- X / y / z - axes speed: 15 m/min
- A - axis rotation of workpieces: 360 degrees/endless
- A - axis resolution: 0. 0001 deg.
- A - axis rotation speed: 120 rpm
- A - axis max workpiece dim. : 190 mm
- C - axis max length of rotary table: 300 mm
- C - axis swivel range +/- 200 deg.
- C - axis resolution: 0. 0001 deg.
- C - axis speed: 120 deg/sec.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
