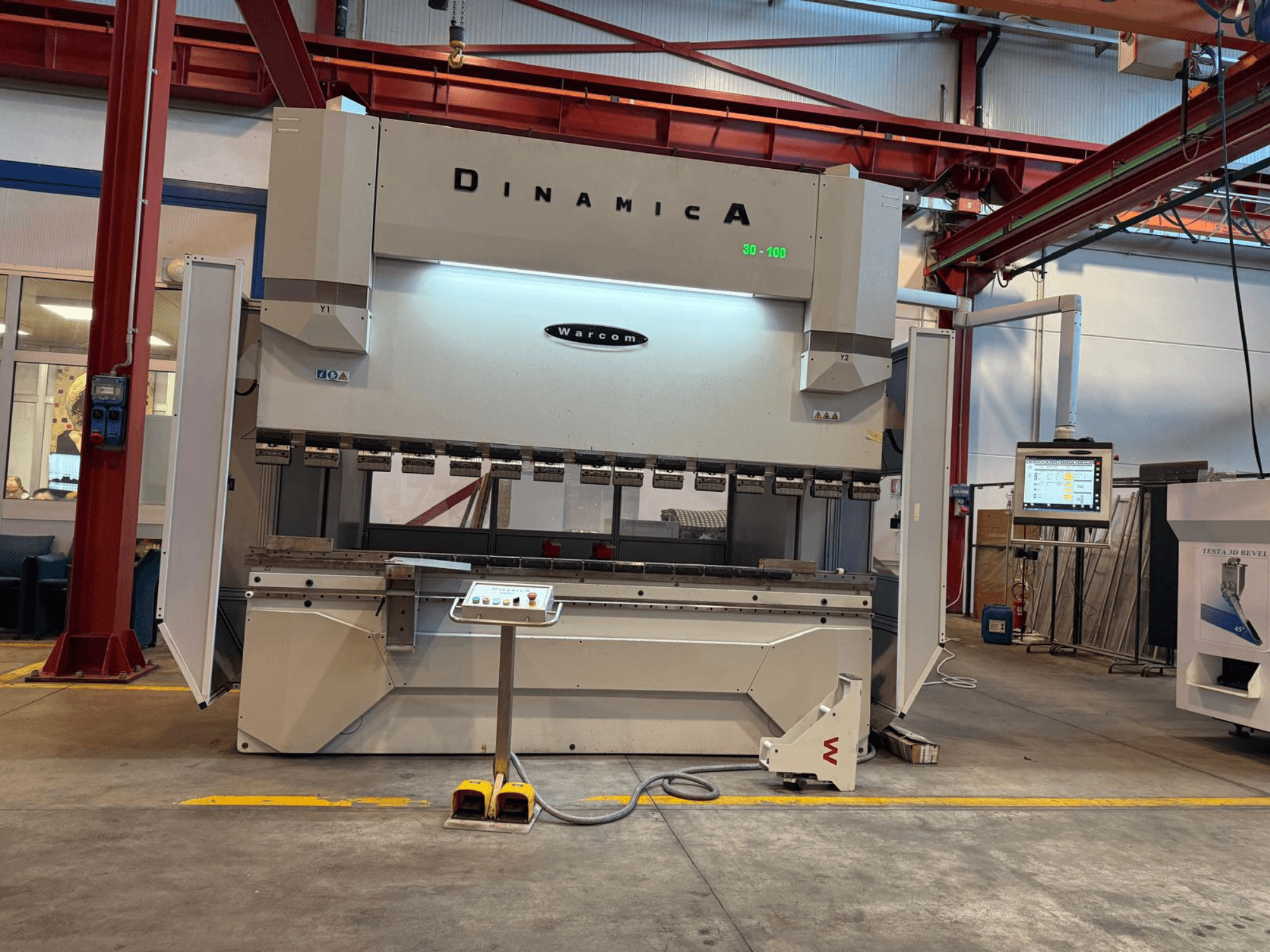

Warcom - DINAMICA 100.30 IT-BEN-WAR-2016-00001

Maximum force: 100 Ton

Working length: 3200 mm

Distance between uprights: 2550 mm

Throat depth: 500 mm

Distance between table and ram: 600 mm

Table width: 60 mm

Fast descent speed: 0–200 mm/s

Working speed: 0–10 mm/s

Return speed: 0–180 mm/s

Y-axis positioning tolerance: ±0.01 mm

Motor power: 11 kW

Oil tank capacity: 120 L

Maximum working pressure: 250 bar

Electrical supply voltage: 400 V

Frequency: 50 Hz

Phases: 3 + N

Acoustic pressure at operator position: 74 ± 2.5 dB(A)
