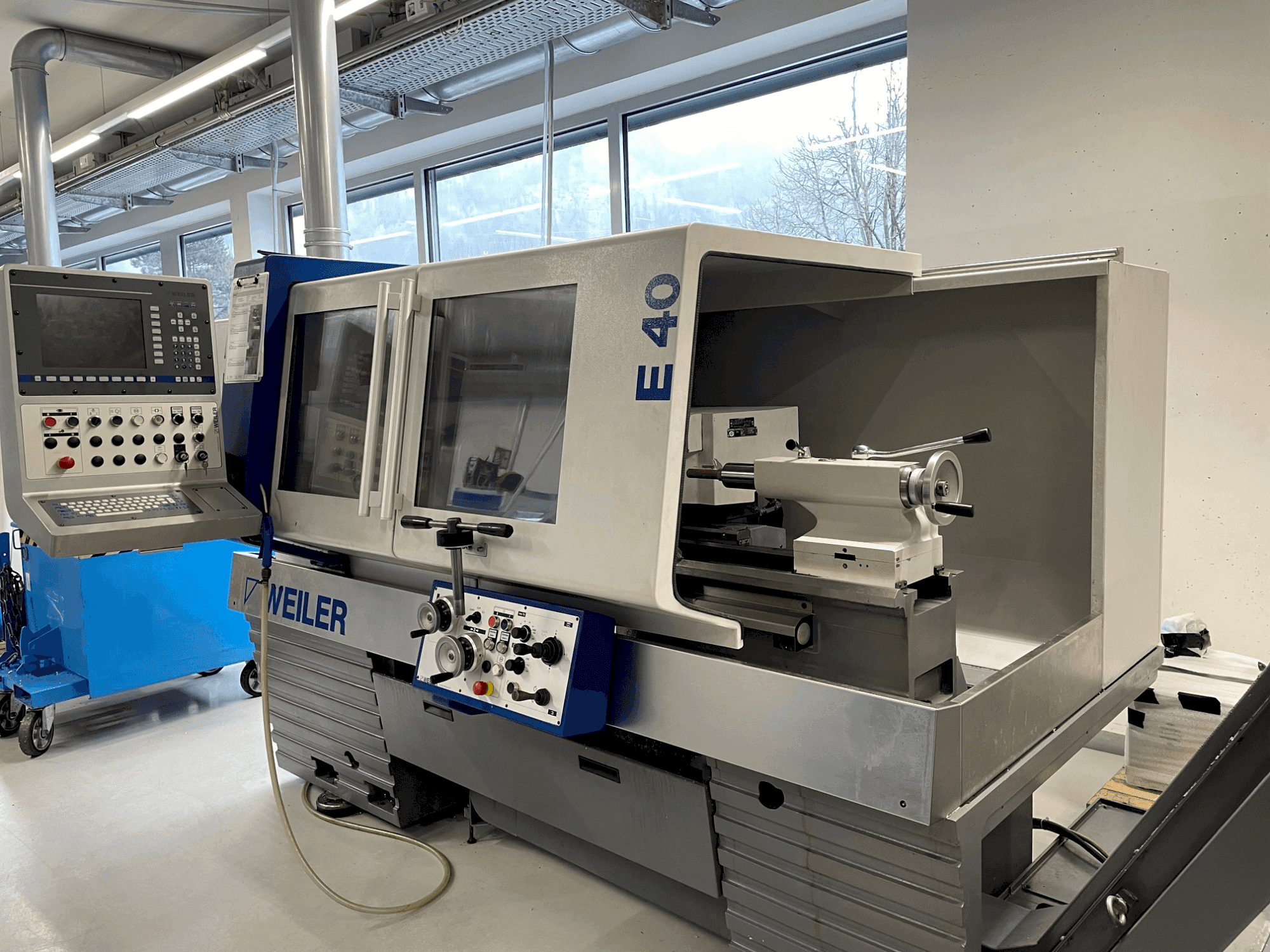

Front view of Weiler E 40 x 1000  machine

Weiler E 40 x 1000

Weiler - E 40 x 1000

2012

50,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This WEILER E 40 x 1000 was manufactured in 2012. It features a centre distance of 1000mm, a circulation diameter in the bed of 435mm, and a spindle bore of 66mm. The machine has a speed range of 1-3,500rpm and weighs 3400kg. This opportunity to buy the WEILER E 40 x 1000 lathe could be ideal for a variety of turning applications. Contact us for further details regarding this lathe.

Overview

  • brand: Weiler
  • year: 2012
  • MODEL: E 40 x 1000
  • production hours: 14601
  • application type: Turning
  • Location: Austria
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: Cycles SL1
  • GINDUMAC ID: AT-TUR-WEI-2012-00001

Technical Information

General Data

  • Machine weight: 3400 kg

Control Unit

  • Brand: Cycles SL1

Main drive

  • Spindle speed range: 1-3500 1/MIN
  • Spindle bore: 66 mm

Movement

  • X-AXIS Feed Force: 10000 N
  • X-AXIS Rapid traverse: 8/4 m/min

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Centre distance: 1,000 mm
      • - Circulation diameter via flat slide: 200 mm
      • - Circulation diameter in the bed: 435 mm
      • - Circulation diameter via flat slide: 200 mm
      • - Sliding movement: 260 mm
      • - Max. Torque of the spindle: 450 nm
      • - Spindle diameter in front bearing: 110 mm
      • - Tailstock quill diameter: 65 mm
      • - Feed range: 0. 001-50 mm/rev

    Extra information

    • - machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
