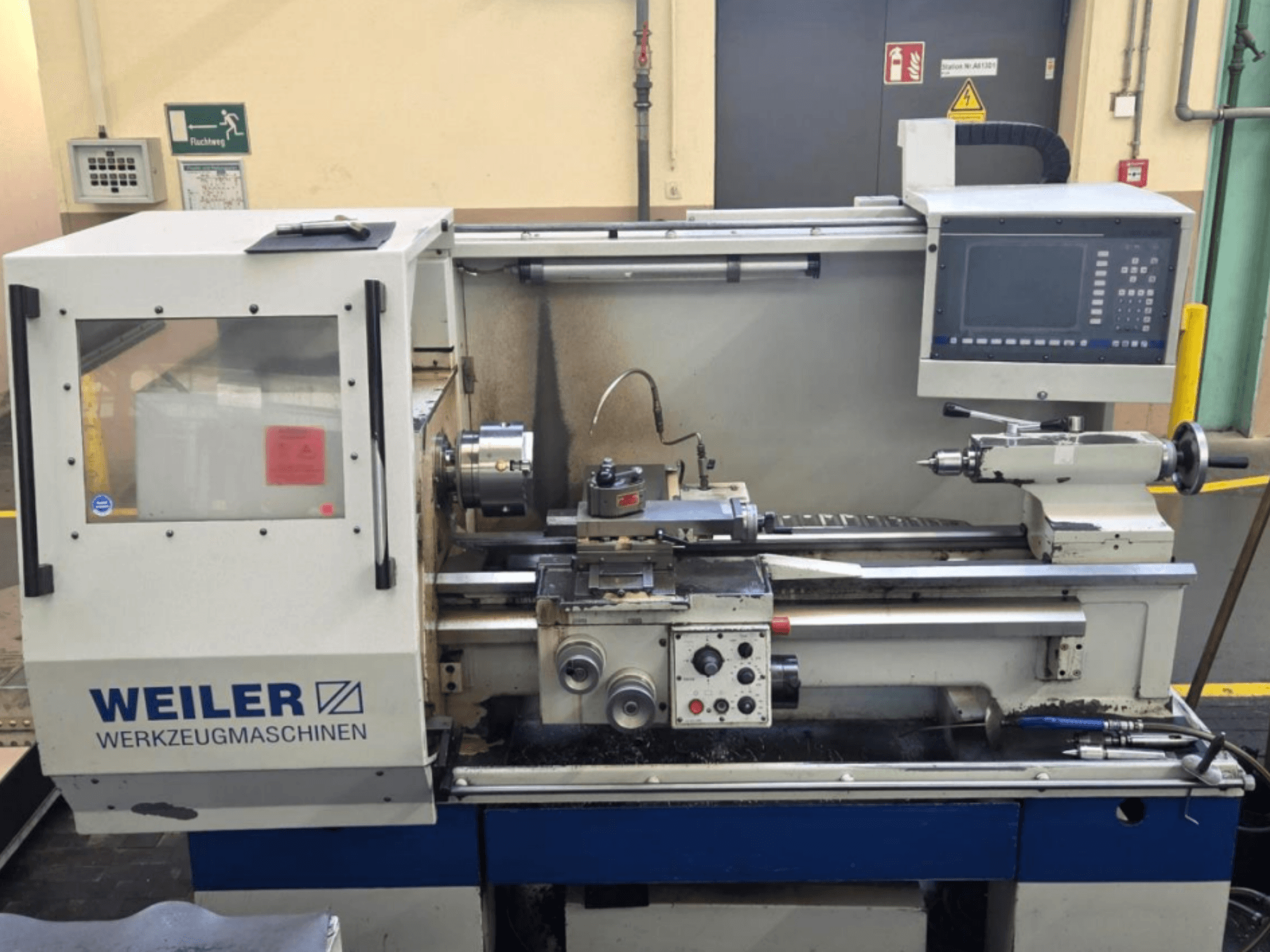

Weiler - E35 DDE-TUR-WEI-1999-00002

• Control: Siemens Sinumerik 810D with Weiler D1 user software

• Center distance: 950 mm

• Turning length: 950 mm

• Swing over bed: 410 mm

• Swing over cross slide: 200 mm

• Bed width: 330 mm

• Cross slide travel: 230 mm

• Top slide travel: 120 mm

• Tailstock quill diameter: 65 mm

• Tailstock quill stroke: 120 mm

• Tailstock internal taper: MK 4

• Feed force (longitudinal/transverse): 8000 N / 5000 N

• Rapid traverse (longitudinal/transverse): 10/5 m/min

• Tool cross-section: 25x25 mm

• Display: 12.1-inch TFT color flat screen

• Drive power (60/100% duty cycle): 11/9 kW

• Dimensions (L x W x H): 2300 mm x 1400 mm x 1700 mm

• Weight: 2100 kg

• Spindle speed range (1st stage): 1-750 rpm

• Spindle speed range (2nd stage): 4-3000 rpm

• Max. torque at spindle: 700 Nm

• Spindle mount (DIN 55027): Size 6

• Spindle diameter (front bearing): 90 mm

• Spindle bore: 54 mm

• Spindle taper: MK 6

• Operating voltage: 400 V

• Control voltage: 24 V

• Connected load: 14 kW

• Nominal current: 26 A

• Frequency: 50 Hz

• Main fuses: 35 A

• Coolant unit: 30 l/min at 0.4 bar

• Tool holder: Multifix quick-change size B

• Features: Teach-in functions; graphic-supported contour programming; V-24 interface; electronic handwheel for manual contour following

Additional equipment

• Included accessories: 1 change holder; fixed center point; spindle plug; key set; manuals; chip protection wall; movable splash guard; chuck guard with limit switch monitoring

• Optional equipment included: Fixed steady rest with roller jaws (12–150 mm); adjustable hollow spindle stop; lever-operated collet chuck for DIN 6343-48 (173E)
