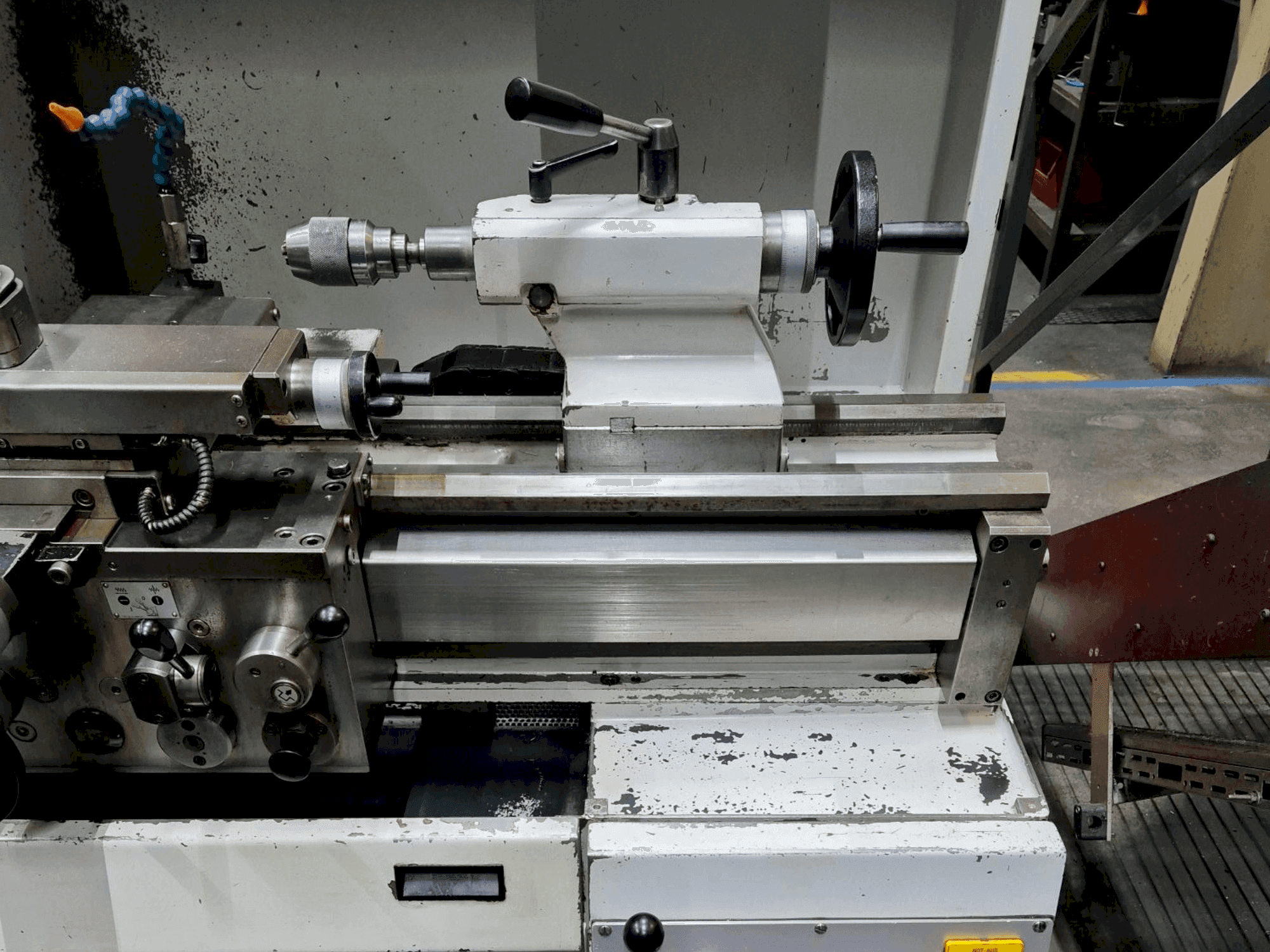

Front view of Weiler PRAKTIKANT VC  machine

Weiler - PRAKTIKANT VCDE-TUR-WEI-2001-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Weiler PRAKTIKANT VC lathe was manufactured in 2001. It features a swing diameter over the cross slide of 165mm, a turning length between centers of 650mm, and a spindle diameter in front bearing of 70mm. The machine offers a speed range of 30-4000 rpm, with a maximum chuck diameter of 200mm. Ideal for detailed and precise work, the Weiler PRAKTIKANT VC machine we have for sale represents a robust addition to any workshop. Contact us for further details.

Overview

  • brand: Weiler
  • year: 2001
  • MODEL: PRAKTIKANT VC
  • application type: Turning
  • Location: Germany
  • machine type: Horizontal Turning Machine
  • availability: Sold

Technical Information - Weiler PRAKTIKANT VC

General Data

  • Machine weight: 920 kg

Main drive

  • Number of spindles: 1
  • Spindle speed range: 30-4000 rpm 1/MIN
  • Tool taper: MK5
  • Number of axis: 2

Movement

  • X-AXIS Movement: 150 mm
  • X-AXIS Feed Force: 2500 N
  • Z-AXIS Movement: 650 mm
  • Z-AXIS Feed Force: 3500 N

Workpiece

  • Workpiece drm over bed: 320 mm

Tail Stock

  • Pinol tool taper: MK3

    Additional Equipment

    • - Coolant Tank Dimensions: 1550 x 935 x 1550 mm.

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Spindle diameter in front bearing: 70 mm
        • - Spindle clearance: 40 mm
        • - Swing diameter over cross slide with t-slots: 165 mm
        • - Center height: 160 mm
        • - Bed width: 205 mm
        • - Guide length: 350 mm
        • - Max chisel cross-section: 20 x 20 mm
        • - Quill stroke: 85 mm // quill diameter: 40 mm
        • - Chuck diameter max: 200 mm //face plate max diameter: 250 mm
        • - Versatile turning capabilities with a robust feed force.
      • Qualitative Machine Benefits:
        • - Permissible workpiece dimensions: between centers without setting blocks 100 kg.
        • - Precision and control with a cross slide featuring t-slot and adjustable angles.

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
