Zayer - KP 6000 ARES-MIL-ZAY-2002-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- ZAYER KP 6000 AR Milling machine
Show in original language

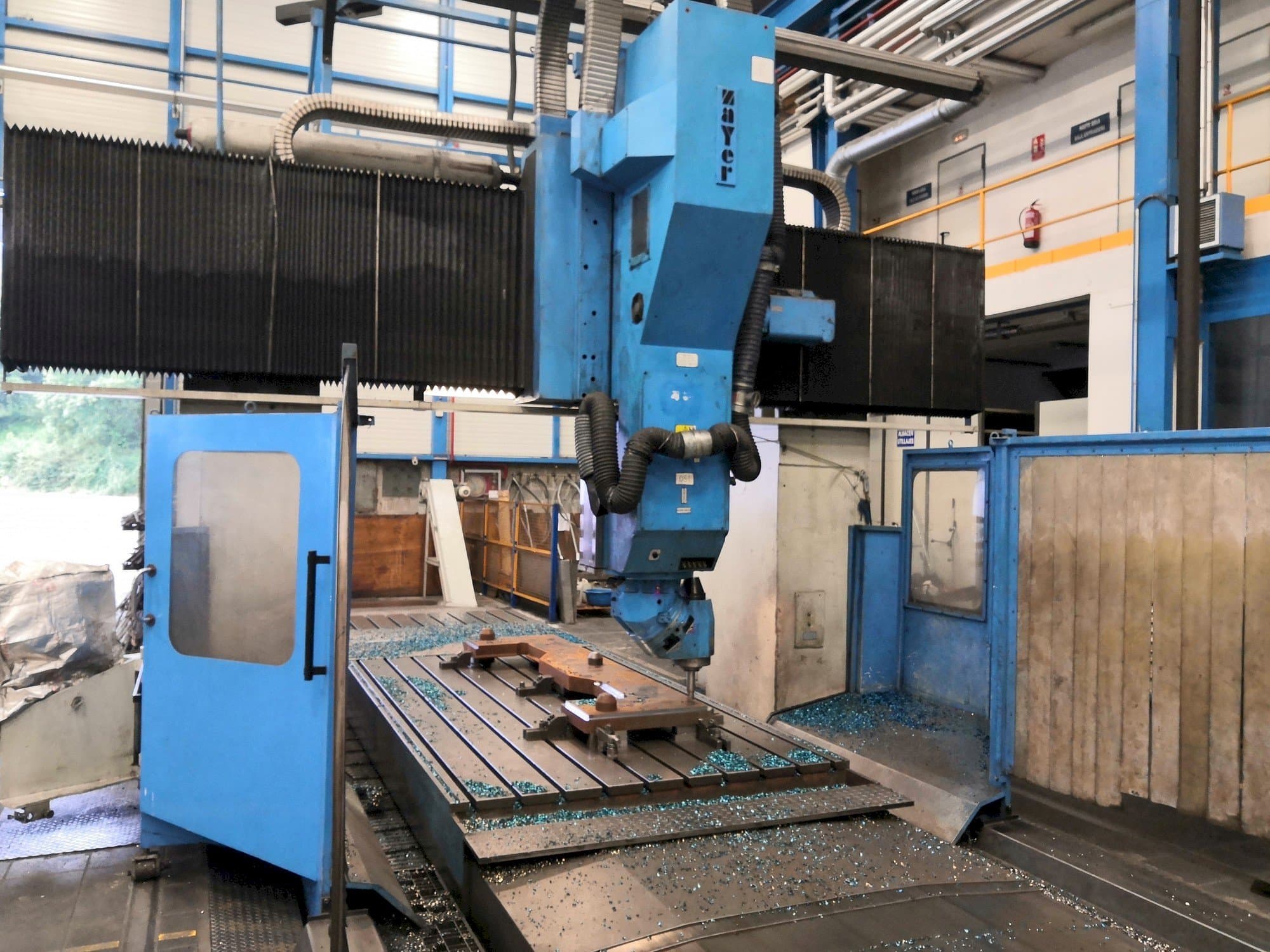

This ZAYER KP 6000 AR Milling machine was manufactured in the year 2002 in Spain and has 48852 working hours. It is equipped with a FIDIA C1 control unit and has 5 axis. The machine has a spindle speed of 5500 rpm.
Overview
- brand: Zayer
- year: 2002
- MODEL: KP 6000 AR
- production hours: 48852
- application type: Milling
- Location: Spain
- machine type: Gantry Milling Machine
- control unit brand: FIDIA
Technical Information - Zayer KP 6000 AR
Control Unit
- Control Brand: FIDIA
- Control Model: C1
Movement
- C-axis: 360°
- Number of Axes: 5
- X-axis Travel: 6000 mm
- Y-axis Travel: 3600 mm
- Z-axis Travel: 1100 mm
Technical Specification
- Spindle Speed: 5500 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Bearings + extension head gears replaced at 43026h
- Bearings + angular gearboxes replaced at 45682h
- Z-axis motor replaced at 47260h.
Technical Machine Benefits
- Spindle power control module installed
- Air-cooled and external coolant
- External dust extraction module installed. Maximum power 6 bar.
- Make 800 mm depth bores
- Only external cooling, air and coolant
- Width between columns: 2800mm.
- Gantry height to head: +/- 1100mm.
- Gantry height without head: 1700mm.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
