ABB - IRB 6700-245/3.00DE-ROB-ABB-2023-00002

38,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

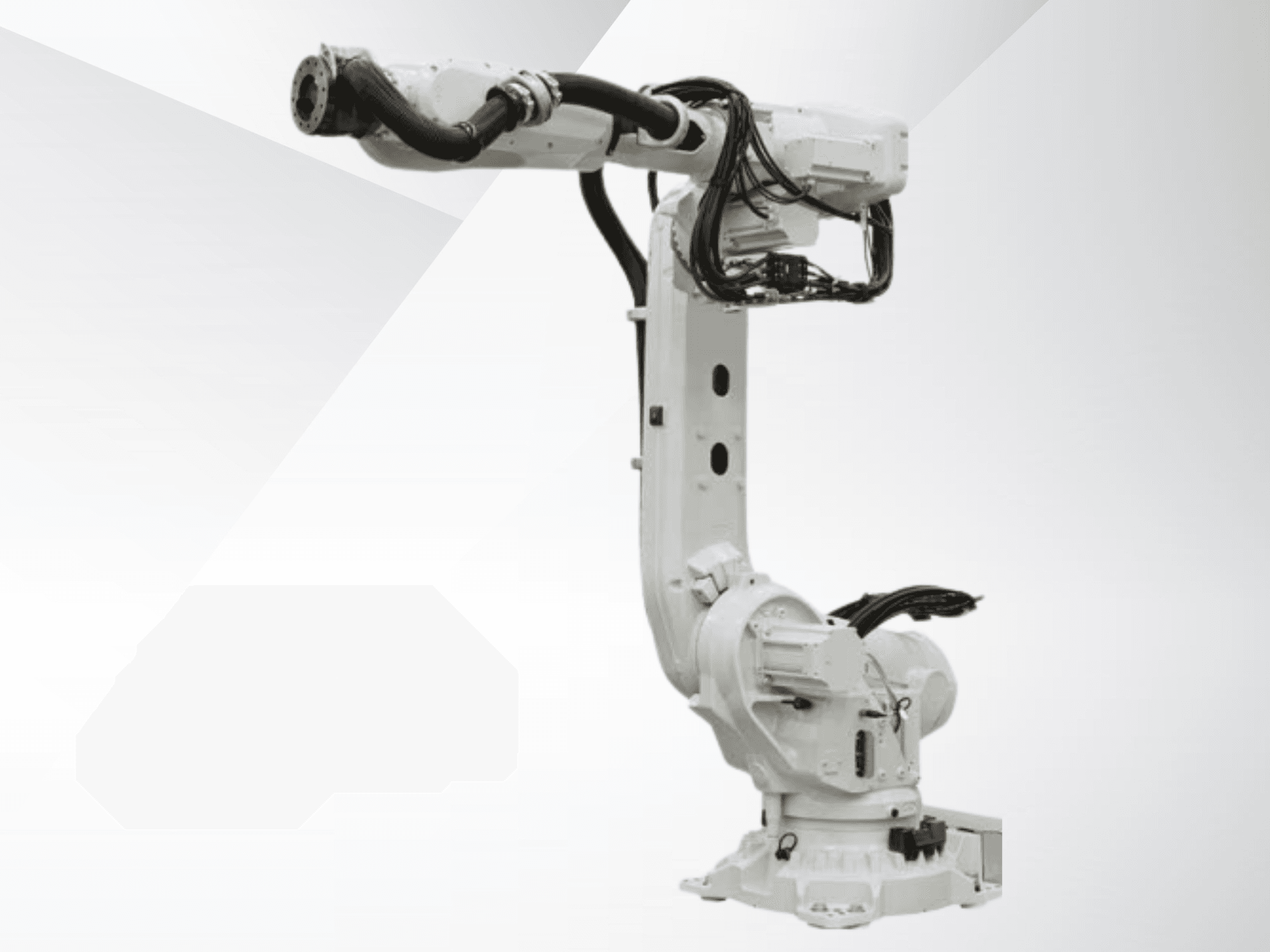

This 6-axis ABB IRB 6700-245/3.00 was manufactured in 2023. It features a payload capacity of 245 kg and a reach of 3.00 m, making it suitable for various applications. The robot arm is equipped with advanced software extensions, including collision detection and multitasking capabilities. If you are looking to get high-quality automation capabilities, consider the ABB IRB 6700-245/3.00 robot arm we have for sale. Contact us for further details.

Overview

  • brand: ABB
  • year: 2023
  • MODEL: IRB 6700-245/3.00
  • application type: Robotics
  • Location: Germany
  • machine type: Robot Arm

Technical Information - ABB IRB 6700-245/3.00

Dimensions

  • Machine Weight: 1540 kg

Movement

  • Number of Axes: 6

Technical Specification

  • Max. Handling Weight: 245 kg
  • Max. Reach: 3000 mm

Additional Information

- Protection Rating: Standard

- Calibration Method: Axis Calibration

- Controller Variant: Single Cabinet Controller IRC5

- Supply Voltage: 400V

- Power Connection: Plug HAN HSB 6p+E

- Main Switch: Rotary switch

- Cabinet Ambient Temperature: Up to max. 45°C

- Manipulator Cable Length: 7 m

- FlexPendant Cable Length: 10 m

- FlexPendant Option: Removable (Jumper plug included)

- Software / RobotWare: RobotWare 6

- Software Extensions: World Zones, Path Recovery, Collision Detection, PC Interface, FlexPendant Interface, Multitasking, MultiFunction

- Safety Options: SafeMove Pro, PROFIsafe F-Device, Safety Module

- Fieldbus / Network: ProfiNet I/O Master/Slave, Ethernet connection on connector panel, Ethernet M12 on base plate

- DressPack Configuration: For Material Handling (Base to Axis 3)

- Operating Mode Selector: Keyless Selector 3 modes

- Service Socket: 230V

- Included Accessories: Cable reel 10 m

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
