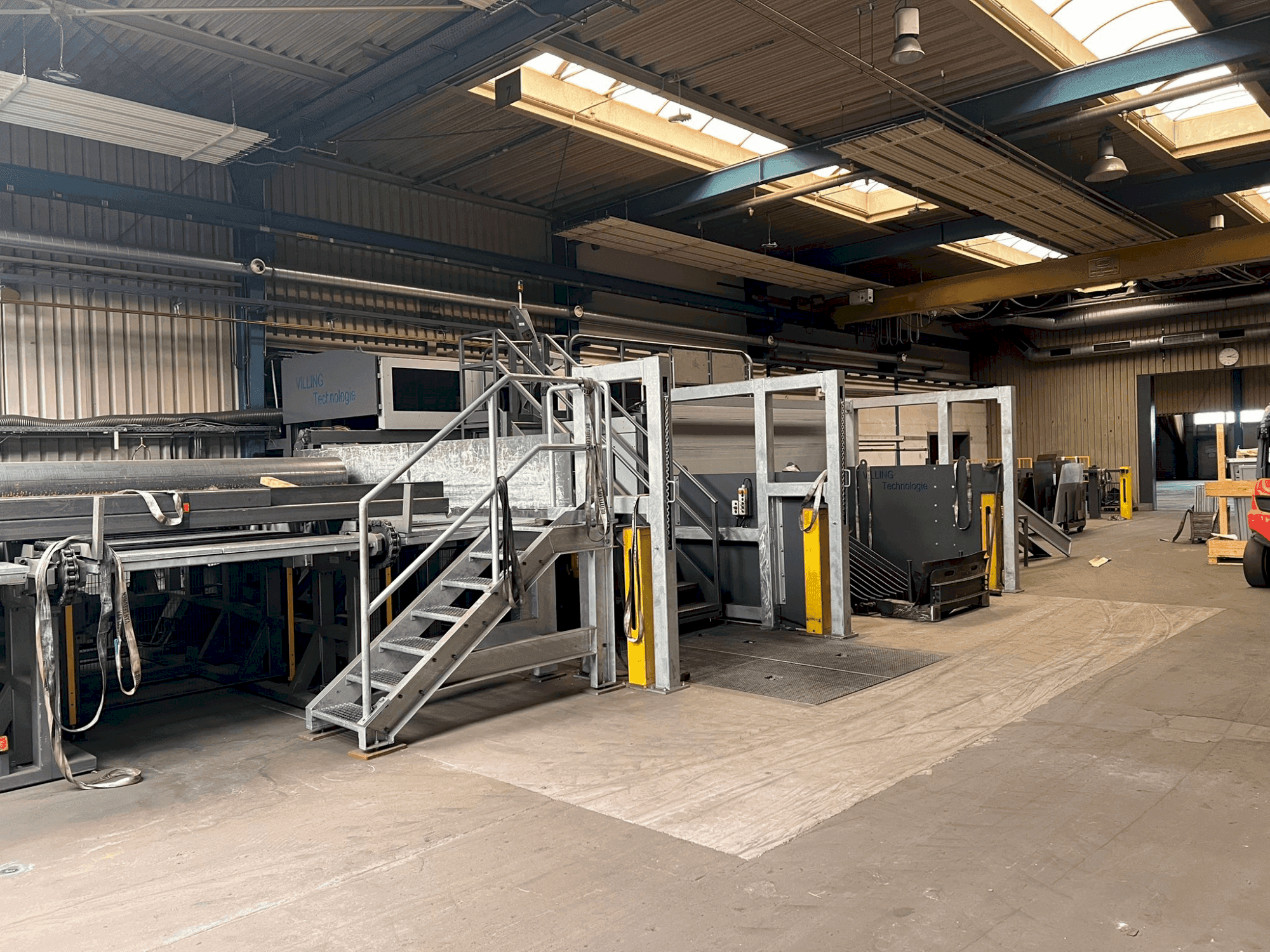

This 5-axis ADIGE LT 20 fiber laser cutting machine was manufactured in 2015. It features a 5-axis CNC-controlled system, capable of handling tube lengths from 4,000 mm to 14,000 mm and cutting steel pipes up to a wall thickness of 16 mm. It includes a ROFIN SINAR DC 035 CO2 laser source, Artube CAD and CAM 3D software, and a fully automatic unloading station. Consider the opportunity to buy this ADIGE LT 20 fiber laser cutting machine. Contact us for more information.
Overview
- brand: ADIGE
- year: 2015
- MODEL: LT 20
- application type: Cutting
- Location: Germany
- machine type: Fiber Laser Cutting Machine
- control unit brand: SIEMENS
Technical Information - ADIGE LT 20
Control Unit
- Brand: SIEMENS
Main drive
- Number of axis: 5
Movement
- X-AXIS Movement: 2000 mm
- Y-AXIS Movement: 1280 mm
- Z-AXIS Movement: 700 mm
Control Unit
- Brand: SIEMENS
Main drive
- Number of axis: 5
Movement
- X-AXIS Movement: 2000 mm
- Y-AXIS Movement: 1280 mm
- Z-AXIS Movement: 700 mm
Additional Information
Additional equipment
- 5-axis CNC-controlled 3D tube laser cutting system
- Protective cabin and safety fence
- Tube loading station with single chain (double chain) L 14000 mm
- Disposition for 18 m loader
- Prefabricated part unloading station with single chain in basic version L 14000 mm
- Cutting waste collection container and conveyor chain for fully automatic removal
- Artube CAD 3D software with Artube CAD and CAM software modules
- JUMBO Loader and Unloader Extensions and accessories
- Renishaw LP2 Probe Module
- Fine dust filter and extraction system
Machine Benefits
Technical Machine Benefits
- Fully automatic settings with manual options
- Integration with rofin sinar dc035 laser source without compensator
- Indoor cooling unit installation with a closed circuit for laser source
- Maximum wall thickness: 16 mm in 3d cutting for steel pipes
- Maximum weight: 200 kg per meter
- Machinable bar lengths: from 4000 mm to 14000 mm
- Longer unloading length parts: from 3000 mm or up to 18000 mm
- Unloading of long parts: 3000 - 18000 mm through fully automatic front unloading station
- Unloading length of short parts: up to 3000 mm through a fully automatic front discharge station with finished part buffer
Extra Information
Tools Laser source power: 3500 W Cutting methods: 2D and 3D up to a maximum of 45 degrees Pipe measuring methods: Torsion, centering, precise location of reference machining using RENISHAW probe and measuring software
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
